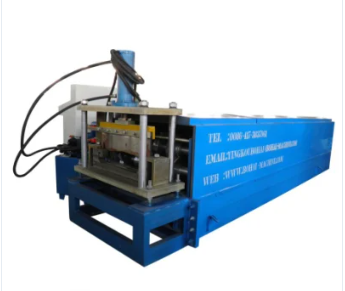

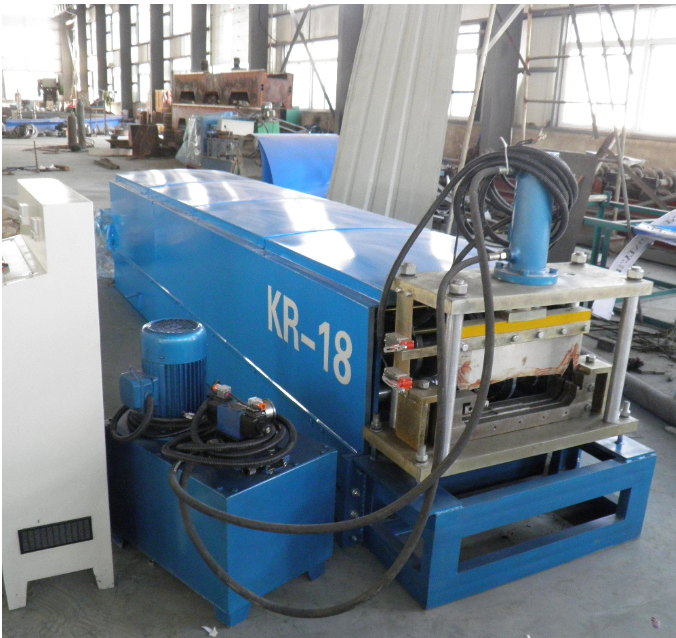

Metal Tile Roofing Roll Forming Machine
This roll forming machine produces high-quality metal roof tiles with consistent profiles and dimensions. It features a robust chassis, multiple forming stations, and a precise cutting mechanism for reliable performance.
Technical Specifications
Overview
High-Efficiency Metal Tile Roofing Solution
This industrial-grade roll forming machine is engineered for the precise and efficient production of metal roofing tiles. Featuring a robust chassis and advanced PLC control systems, it ensures consistent profile quality and dimensional accuracy for professional roofing applications. Designed for durability, the machine utilizes high-grade materials and automated cutting mechanisms to streamline production while minimizing material waste.
Technical Specifications
- Forming Speed
- 15 m/min
- Compatible Coil Thickness
- 0.5 - 1.3 mm
- Forming Rollers
- 12 steps
- Length Precision
- ± 2 mm
- Power Requirements
- 220V60Hz3 Phase
Mechanical Components
Motor Power
5.5 kw
Forming Motor
3 kw
Hydraulic Station
- Machine Dimensions
- 5500 x 1500 x 2000 mm
- Total Weight
- 5 tons
- Roller Specifications
- 45# Steel with 0.05mm Hard Chrome Coating
- Cutting Part Material
- Cr12 (Heat treated HRC58°-60°)
Included Accessories
Included Equipment
| Component | Quantity |
|---|---|
| Decoiler | 1 |
| Sewing machine | 2 |
| Collection table | 1 |
| Clamp | 4 |
| Bearing (208#) | 4 |
| Super pliers | 1 |
| Metal scissors | 1 |
Control & Automation
Control System
PLC ControlledTouch Screen InterfaceAdvanced Transducer
