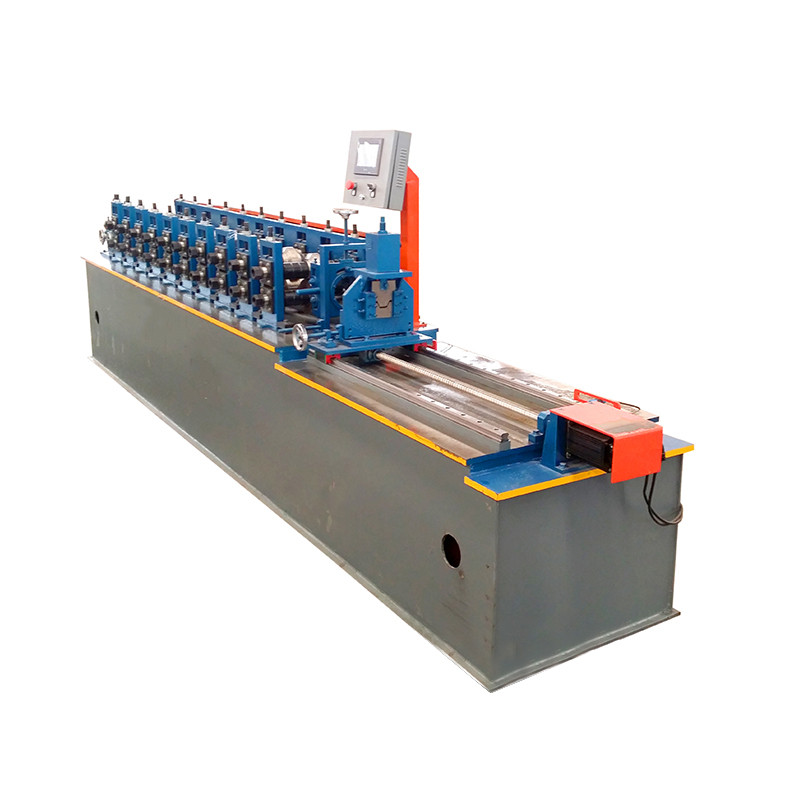

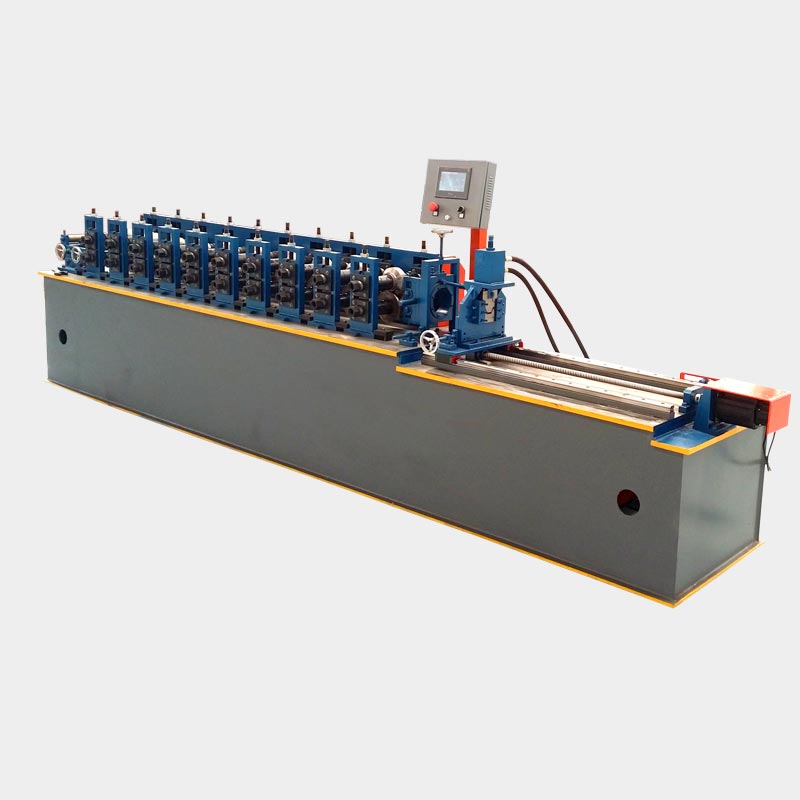

Metal Stud and Track Roll Forming Machine
This machine is designed for manufacturing metal studs and tracks from sheet metal. It utilizes a series of rollers to shape the metal into the desired profile.
Technical Specifications
Overview
High-Efficiency Roll Forming Solution
This industrial-grade roll forming machine is engineered for the high-volume production of metal studs and tracks used in modern construction framing. It features a robust steel frame and advanced forming rollers to ensure consistent, high-precision profiles. Equipped with an intuitive PLC-based touch screen control system, it allows for seamless adjustments to production parameters, delivering both reliability and operational efficiency.
Technical Specifications
Production Speed
35 m/min
Min Speed
50 m/min
Max Speed
- Forming Stations
- 10 rows
- Compatible Material Thickness
- 0.3 - 1.5 mm
- Roller Material
- 45# Steel with Chrome Plating
- Control Interface
- PLC with Colored Touch Screen
Compatibility
- Suitable Materials
- Color Steel PlateGalvanized SheetAluminum Coils
Service & Warranty
- Standard Warranty
- 1 Year
- Customization Services
- Yes
