Technical Specifications
Overview
Industrial Roll Forming Solution

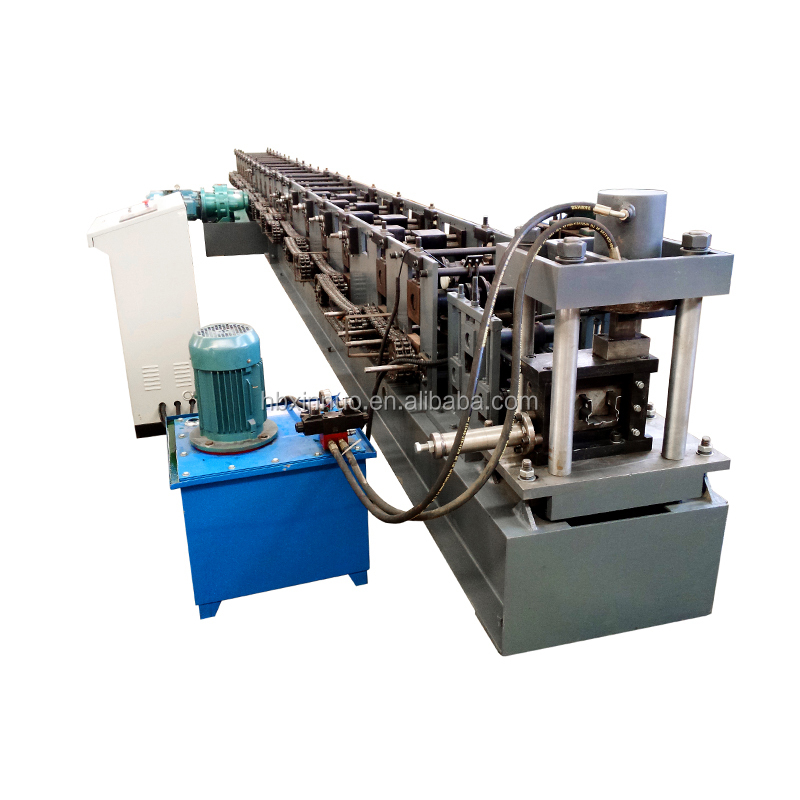

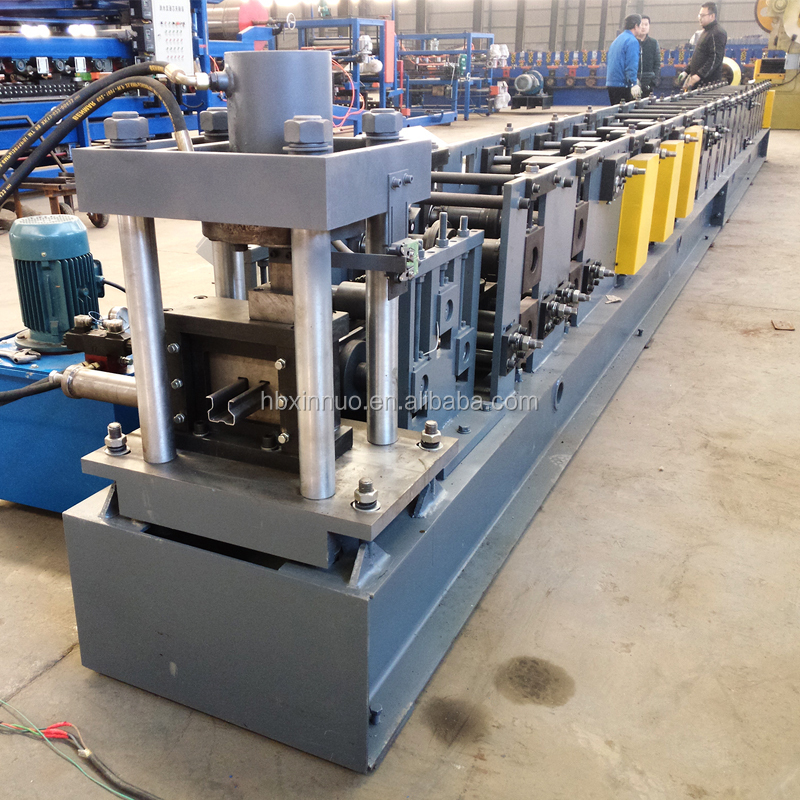

This versatile roll forming machine is engineered for the high-efficiency production of storage racks, roofing sheets, and metal roof tiles. It utilizes a precision roller system to shape metal into uniform, consistent profiles suitable for various construction and industrial applications. Designed for reliability, the machine features automated PLC controls and a robust heavy-duty frame to ensure long-term stability in high-volume production environments.
Technical Specifications
- Forming Speed
- 15 m/min
- Roller Stations
- 19 rows
- Feeding Material Thickness
- 1.5 - 2.5 mm
- Main Motor Power
- 5.5 kW
- Hydraulic System Power
- 4 kW
- Hydraulic Working Pressure
- 12 - 16 Mpa
- Power Supply Requirements
- 380V, 3-Phase, 50Hz
- Main Frame Material
- 350H Steel
Uncoiler & Material
- Loading Capacity
- 5 T
- Maximum Steel Coil Width
- 1300 mm
Features
Certifications
CEQuality Management System
- Control System
- PLC with Touch Screen
- Supported Languages
- EnglishChineseSpanishRussian
