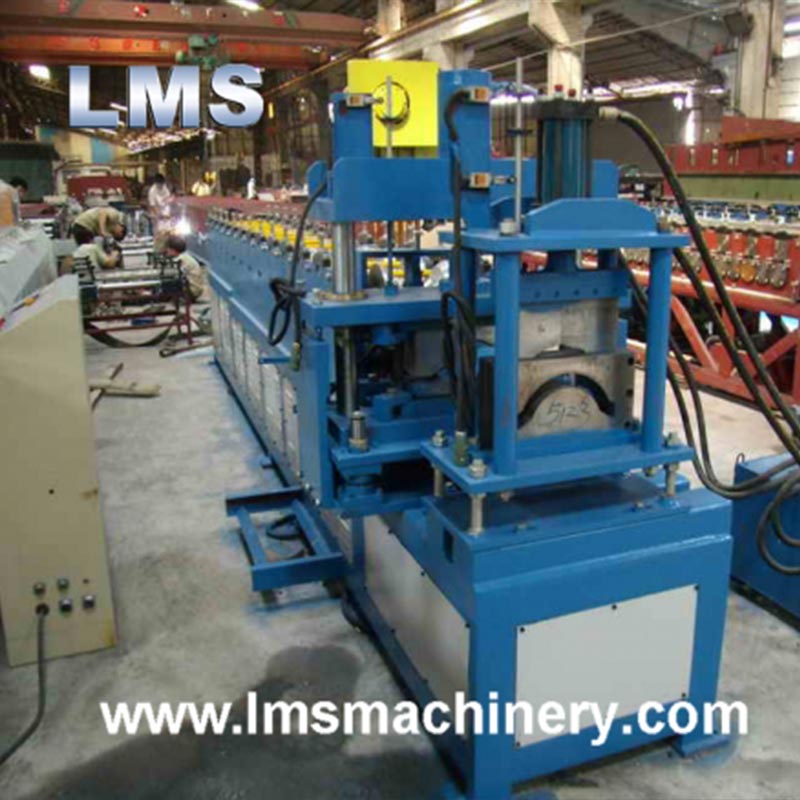

Metal Ridge Cap Roll Forming Machine
This metal ridge cap roll forming machine shapes metal into ridge caps using a series of rollers and forming stations. It includes a hydraulic cutting system for precise length control and is built with a robust steel frame.
Technical Specifications
Overview
High-Efficiency Ridge Cap Production
This ridge cap roll forming machine is engineered for cost-effective, smooth, and low-noise operation, making it an ideal solution for high-volume roofing component manufacturing. Utilizing precision roller design software and high-grade heat-treated materials, the machine ensures consistent quality and durability. It features a fully automated workflow from decoiling to hydraulic cutting, providing a reliable and streamlined production process.
Technical Performance
Key Performance Metrics
15 kw
Total Main Power
14 m/min
Max Forming Speed
10 MPa
Oil Pump Pressure
- Forming Speed Range
- 3-14 meters/minute
- Forming Machine Power
- 4 kw
Material & Capacity
Material Specifications
| Parameter | Value |
|---|---|
| Material Type | Color Plate |
| Thickness | 0.3 - 0.6 mm |
| Width | 312 mm |
Machine Construction
- Roller Specifications
- 13-15 rollers, Cr40 material with HRC 60-62 heat treatment
- Diameter of Axis
- 60 mm
Electrical & Power
- Power Supply
- 3 Phase 4 Lines AC380V 50HZ
- Control System Components
- PLCElectrical Accessories
Workflow
Production Workflow
- Material Coil
- Material Decoiling
- Material Feeding
- Roll Forming
- Hydraulic Cutting
- Run-out Table
