Product Overview

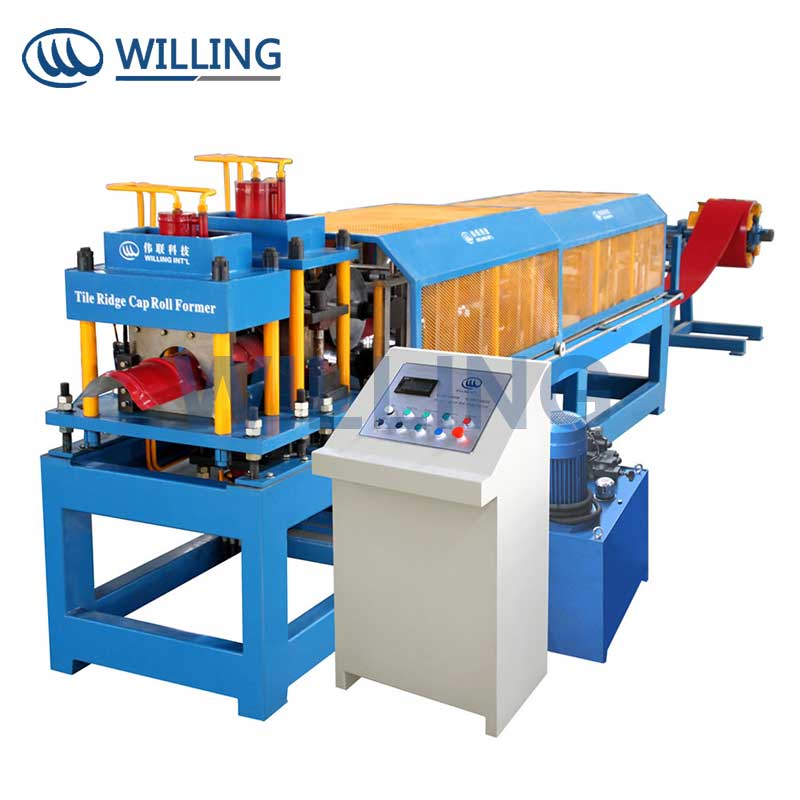

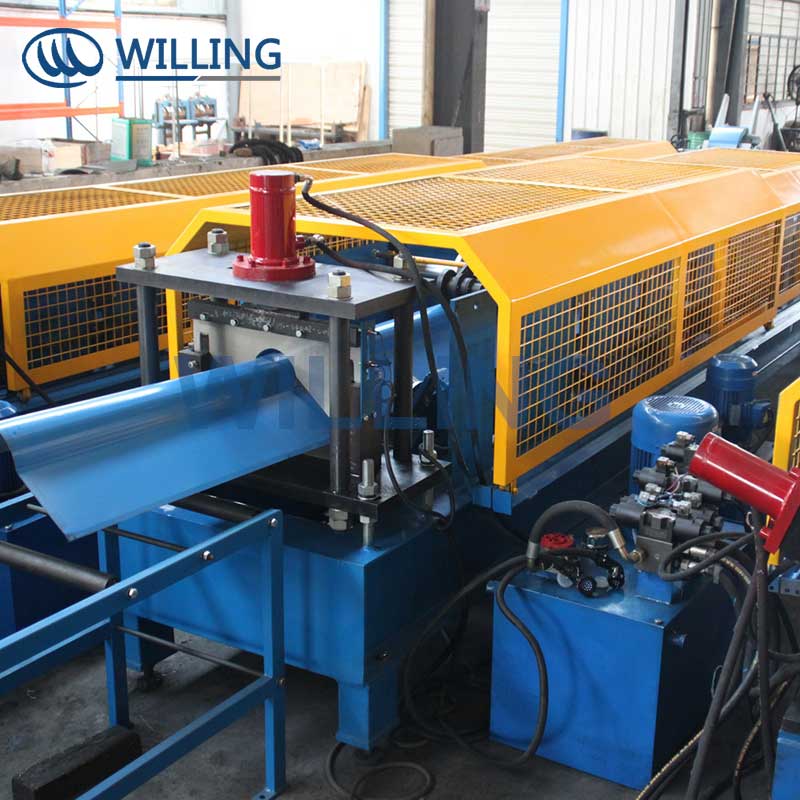

Professional Ridge Cap Roll Forming Solution
This specialized roll forming machine is engineered for the high-speed and precise production of metal ridge caps used in roofing applications. Featuring a robust steel frame for stability and longevity, the system utilizes a sequence of carefully aligned rollers to shape metal sheets into consistent profiles. It is designed to handle various materials including galvanized steel and aluminum, making it a versatile tool for industrial roofing production environments.
Technical Specifications
Performance Metrics
15 m/min
Max Forming Speed
0.7 mm
Max Material Thickness
550 MPa
Max Yield Stress
Power & Weight
- Main Motor Power: 5.5 kW
- Hydraulic Station Motor Power: 3 kW
- Total Power: 8.5 kW
- Total Weight: Approx. 5000 Kgs
- Material Compatibility
- Galvanized SteelAluminumPre-painted Steel

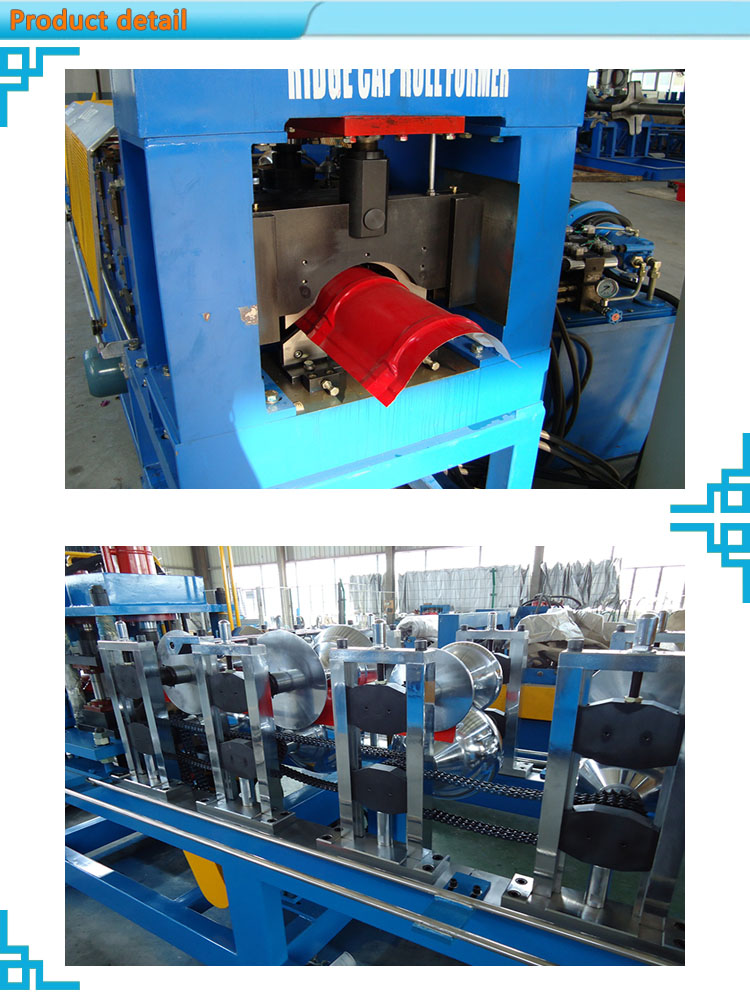

Operational Features
Core Systems
- PLC Control with Touch Screen interface
- Hydraulic Cutting System (12 MPa pressure)
- Chain transmission drive system
- 45# Steel rollers with chrome treatment
- Integrated uncoiler and panel supporter
Service & Support
Support Services
- One year machine warranty
- 24-hour remote technical support via phone/web
- On-site installation and technician training available
- Remote training options via manuals and instructional videos
