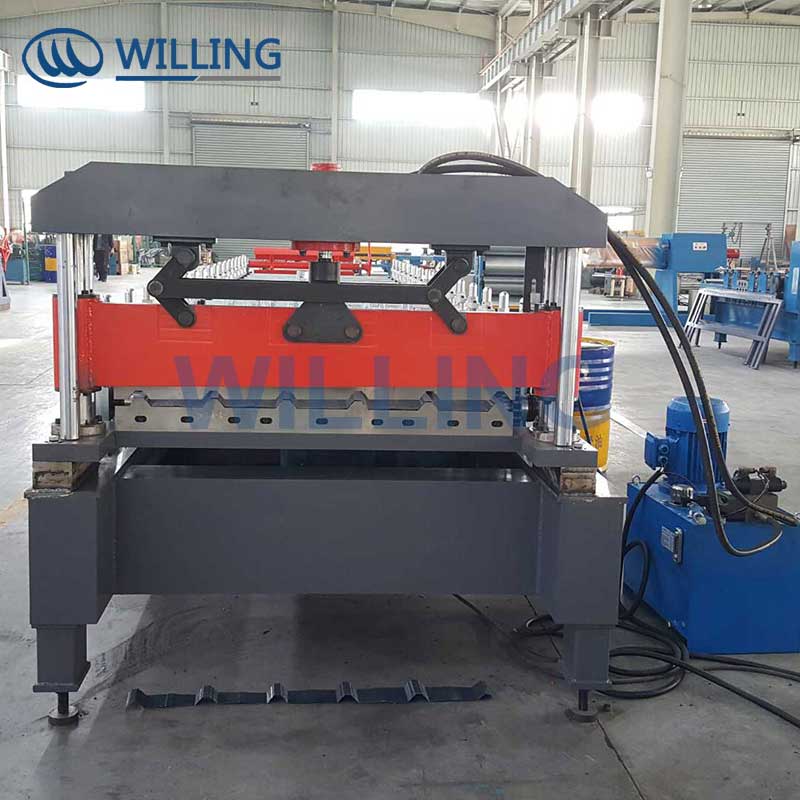

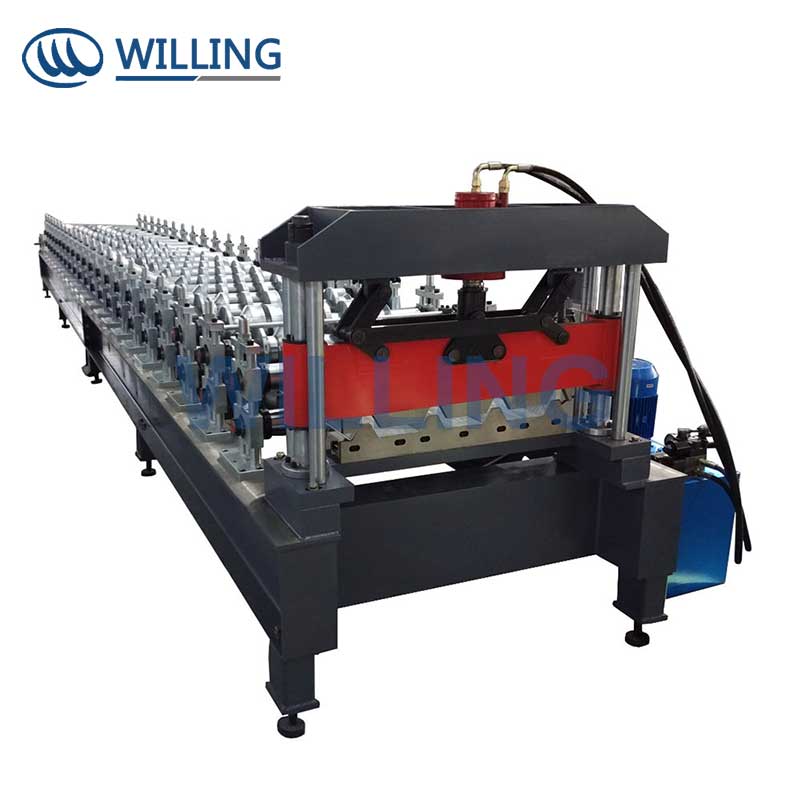

Metal Panel Roll Forming Machine for Wall, Roof, and Door Panels
This roll forming machine efficiently produces metal panels for walls, roofs, and doors. It is engineered for high-speed and consistent forming of various panel profiles.
Technical Specifications
Overview
High-Speed Automatic Roll Forming

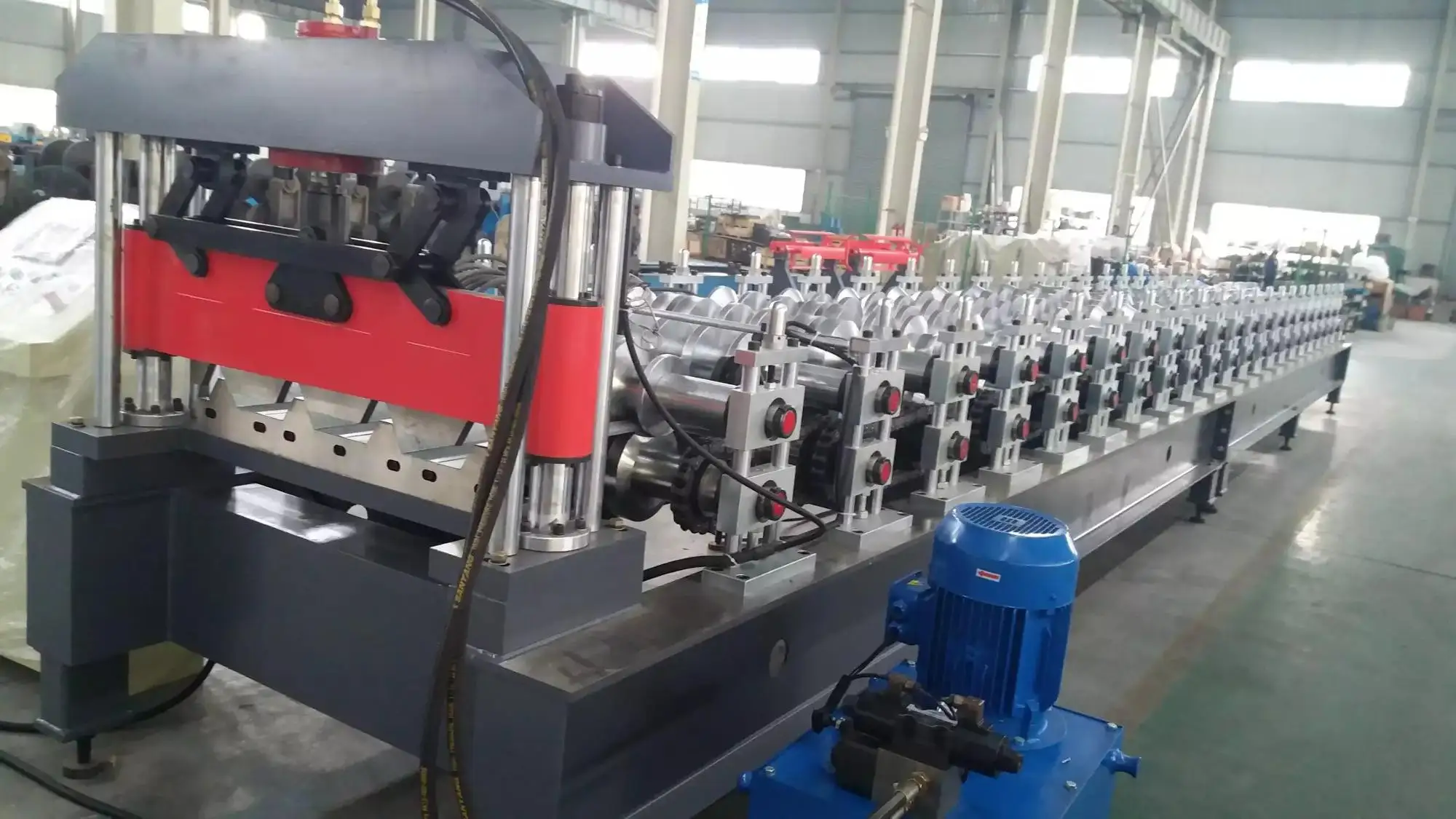

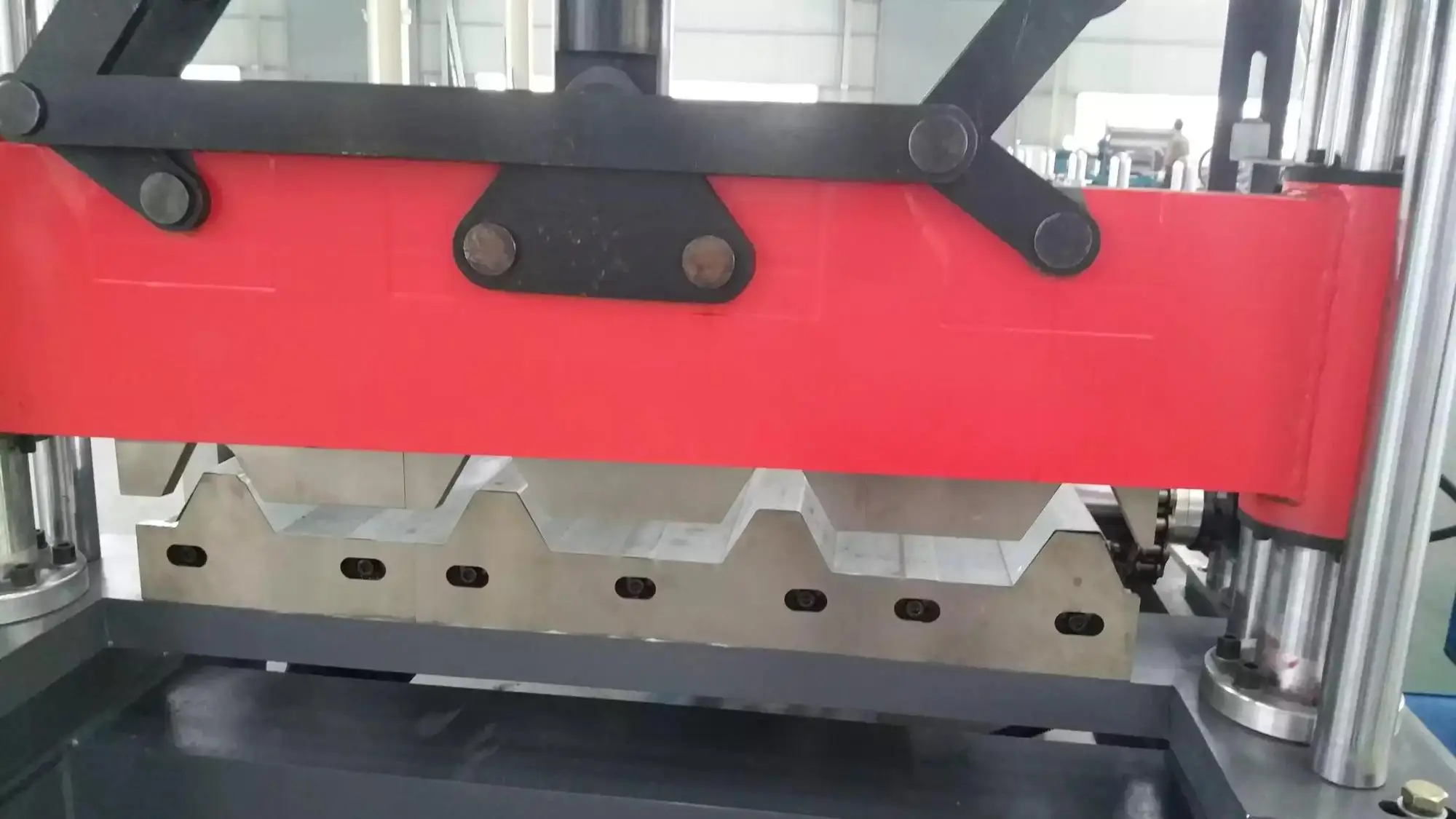

This automatic roll forming machine is engineered for the high-speed production of metal wall, roof, and door panels. Designed for efficiency and durability, it features a robust 17-station roller system and a precise hydraulic cutting mechanism to ensure consistent panel quality. With integrated PLC controls and remote monitoring capabilities, it provides a reliable solution for building material shops and industrial construction suppliers.
Performance Metrics
Key Performance Metrics
15 m/min
Max Production Speed
17 Stations
Roller Stations
1 T
Weight
Technical Specifications
Compatible Feeding Widths
- 1,220
- 1,250
- 1,200
- 1,000
- 915
- 900
- Rolling Thickness Range
- 0.2 - 1.0 mm
- Compatible Raw Material
- Galvanized Sheet / Colored Glaze Steel
Control & Components

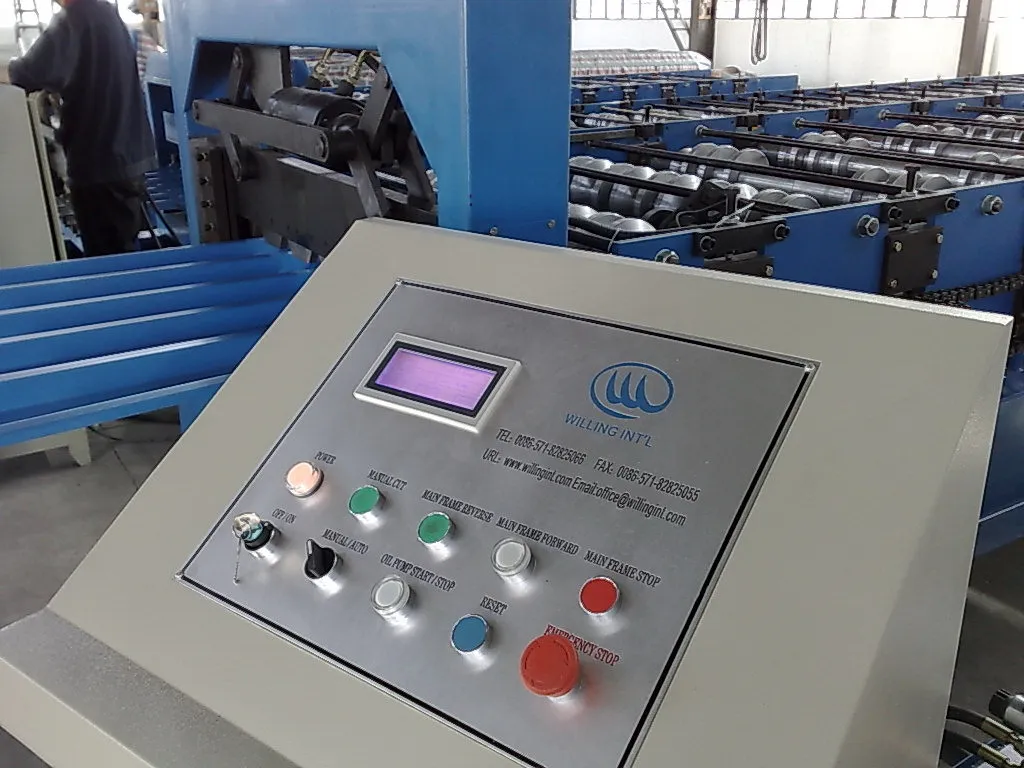

- Control System
- Mitsubishi Japan PLC
- Core Components
- Pressure vesselMotorEnginePLC
- Cutter Blade Material
- Cr.12
Operation & Safety
Key Selling Points
Remote MonitoringAutomatic OperationHigh Speed
- Voltage Requirement
- 380V or as per requirement
Physical Dimensions
- Dimensions (L*W*H)
- 6500 * 1300 * 1100 mm
Service & Quality
After-Sales Support
- Field installation, commissioning and training
- Video technical support
- Online support
- Engineers available to service machinery overseas
- Certifications
- CEISO
- Warranty
- 1 Year
