Metal Framing Profile Roll Forming Machine

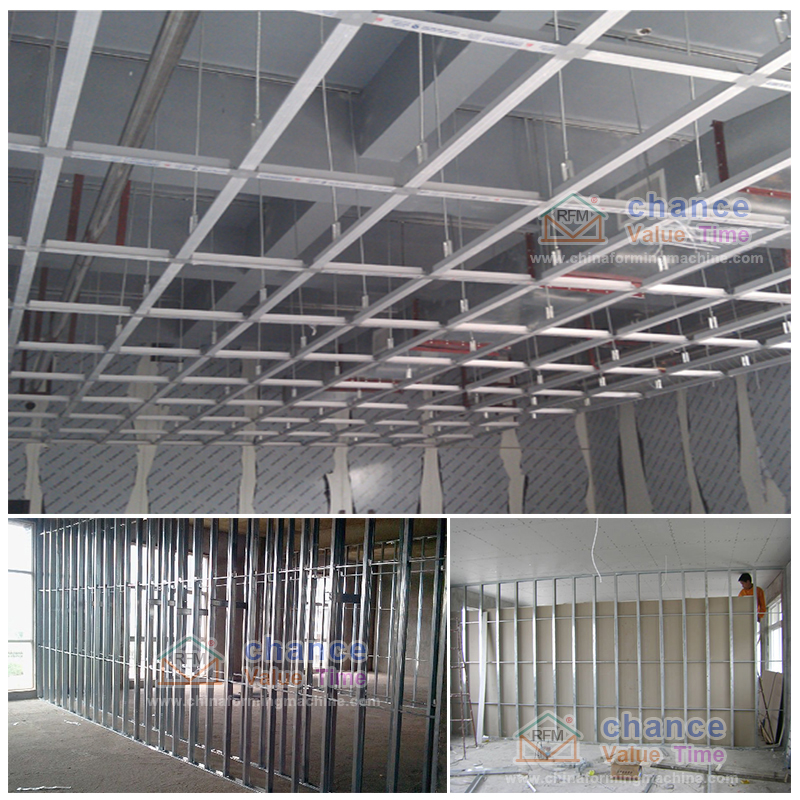

This machine efficiently produces metal framing components for ceiling and wall construction. It forms keels, studs, tracks, and other profiles from metal coils, ensuring precise dimensions and consistent quality.
Technical Specifications
Overview
High-Efficiency Roll Forming Solution
This advanced roll forming machine is engineered for the high-speed production of metal framing components, including C-studs, U-tracks, and U-baffle ceiling profiles. Utilizing CAD/CAM-based manufacturing and 3D-modelling connectivity, the system ensures precise tolerances verified by professional design software. It offers a compact, flexible solution for light steel frame construction, suitable for floor, wall, and roof applications.
Performance Metrics
Production Speed
70 m/min
Keel Forming Speed
80 m/min
U Baffle Ceiling Speed
Technical Specifications
Profile Dimensions
| Profile Type | Web Width (mm) | Height (mm) |
|---|---|---|
| C and U Profiles | 50-300 | N/A |
| U Baffle Ceiling | 20-200 | 20-200 |
- Sheet Thickness
- 1.5 mm
Features
System Capabilities
- CAD/CAM-based manufacturing
- 3D-modelling connectivity
- Automatic feeding system
- PLC automated operation
- Hydraulic system for stable operation
- Precision length control cutting system
- Compliance & Design
- German Technology SoftwareRigorous TestingVerified Forming Stress
