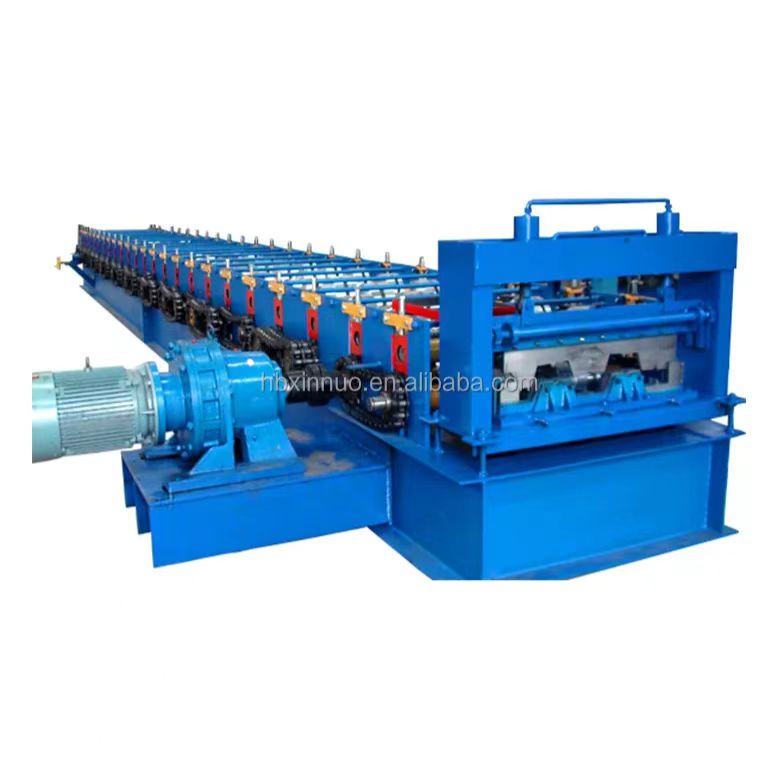

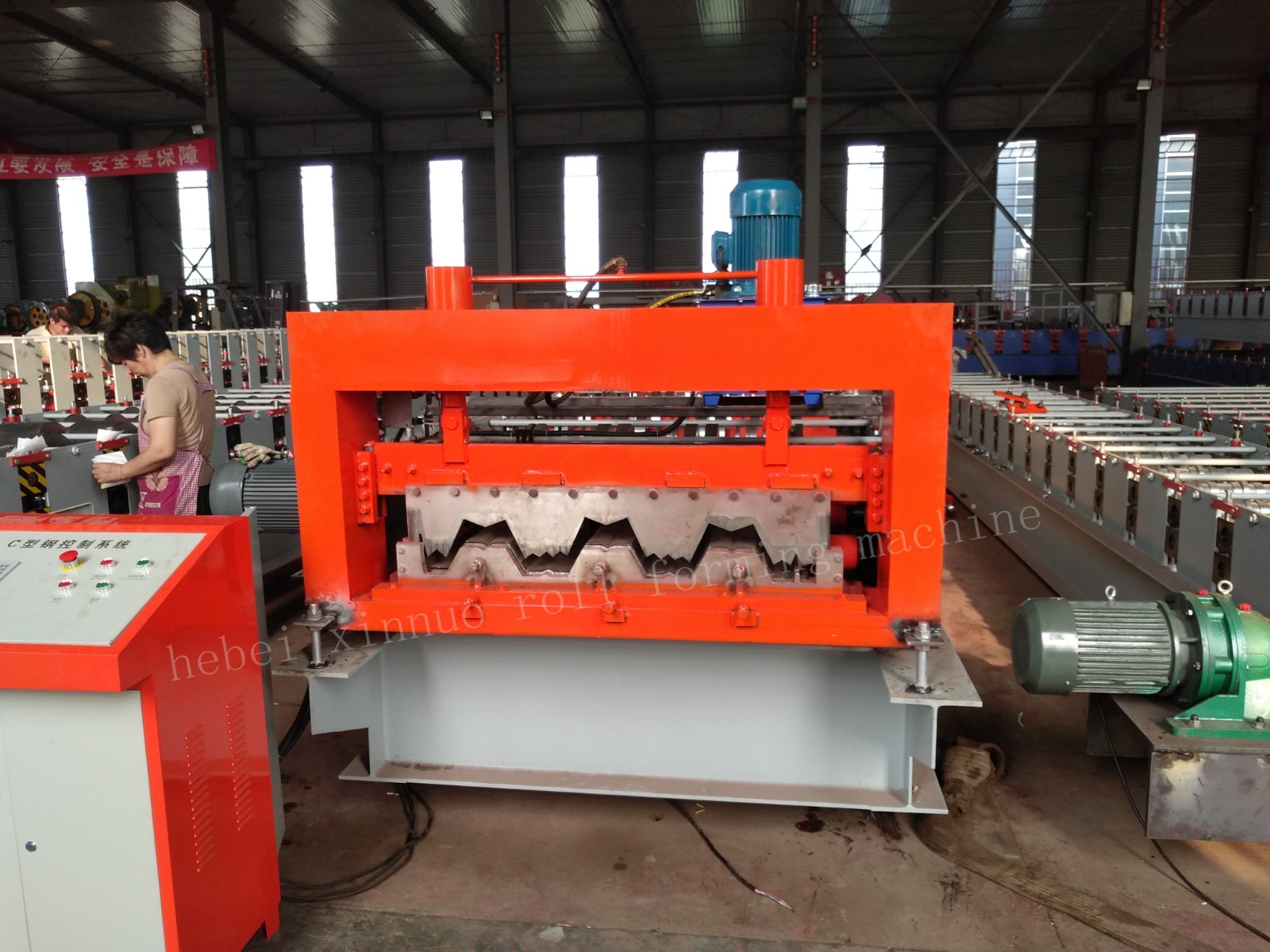

Metal Floor Decking Tile Forming Machine
This metal tile making machine is designed for producing floor decking. It forms metal sheets into specific tile profiles using a series of rollers and forming stations.
Technical Specifications
Overview
High-Performance Floor Decking Solution

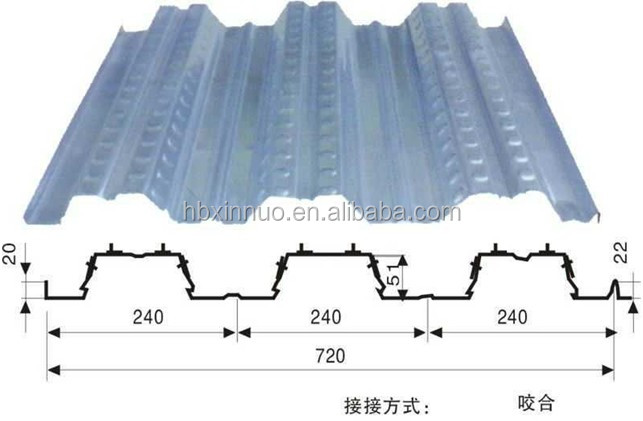

This industrial metal floor decking machine is engineered for high-precision production of metal floor panels. Designed for durability and consistent output, it features a robust roller system capable of handling color steel plates with thicknesses ranging from 0.8mm to 1.5mm. With an efficient production speed of 8-12 meters per minute, it is an ideal solution for manufacturing durable, corrugated decking profiles for modern construction projects.
Technical Specifications
Production Speed
12 m/min
Max Speed
8 m/min
Min Speed
Material Compatibility
| Parameter | Value |
|---|---|
| Material Type | Color Steel Plate |
| Thickness Range | 0.8 - 1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
Machine Configuration

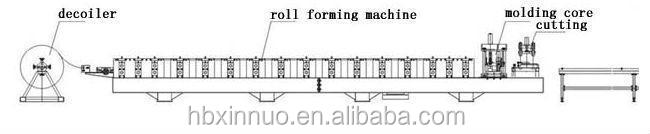

System Components
- 24 Roller stands
- 90mm Roller diameter
- 18.5kW Main power motor
- Integrated decoiler
- Molding core cutting mechanism

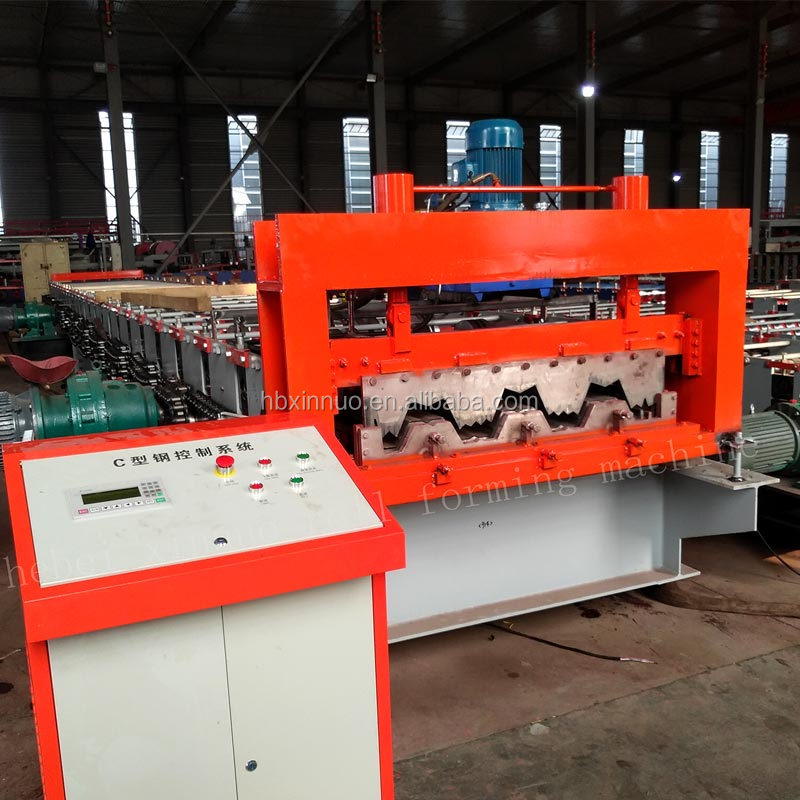

- Control System
- Digital DisplayAutomated CuttingAdjustable Forming RollersUser-friendly Panel
