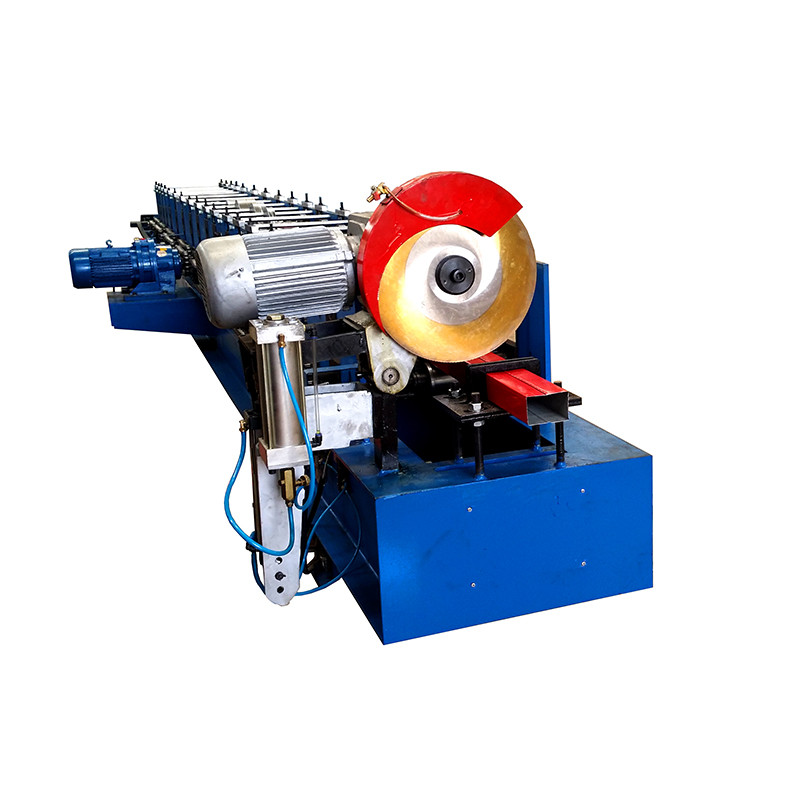

Metal Downpipe Roll Forming Machine
This metal downpipe roll forming machine is designed for efficient production of downpipes. It utilizes a series of rollers to gradually shape metal into the desired downpipe profile.
Technical Specifications
Overview
High-Efficiency Downpipe Production

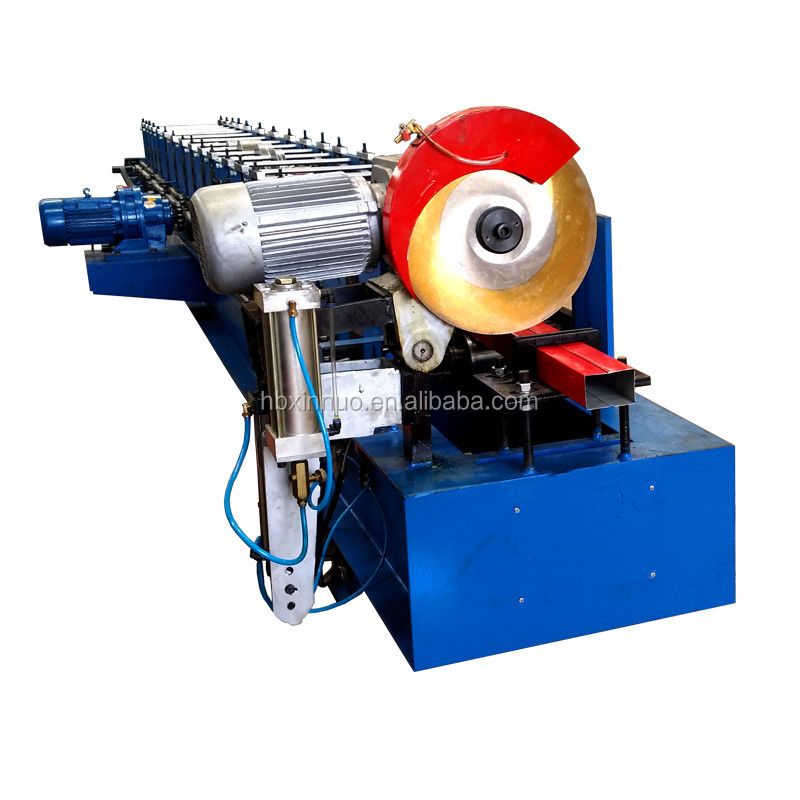

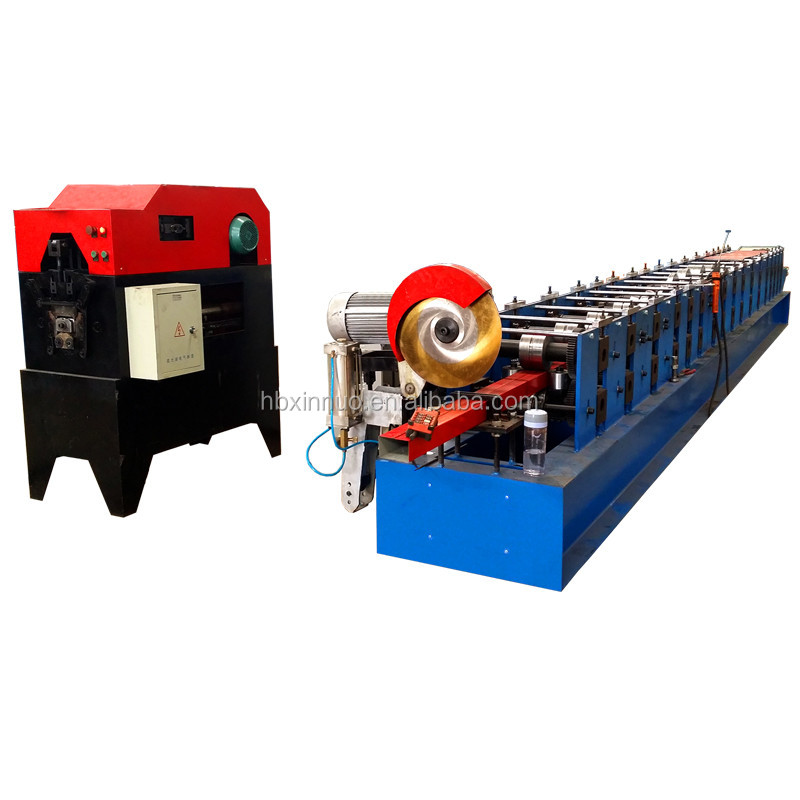

This automatic roll forming machine is engineered for the precise and high-volume manufacturing of metal downpipes. Featuring a robust 12-station roller system and advanced PLC computer control, it ensures consistent quality and dimensional accuracy for various metal types. The integrated flying saw cutting system and adjustable hydraulic parameters provide flexibility and durability for demanding construction and drainage applications.

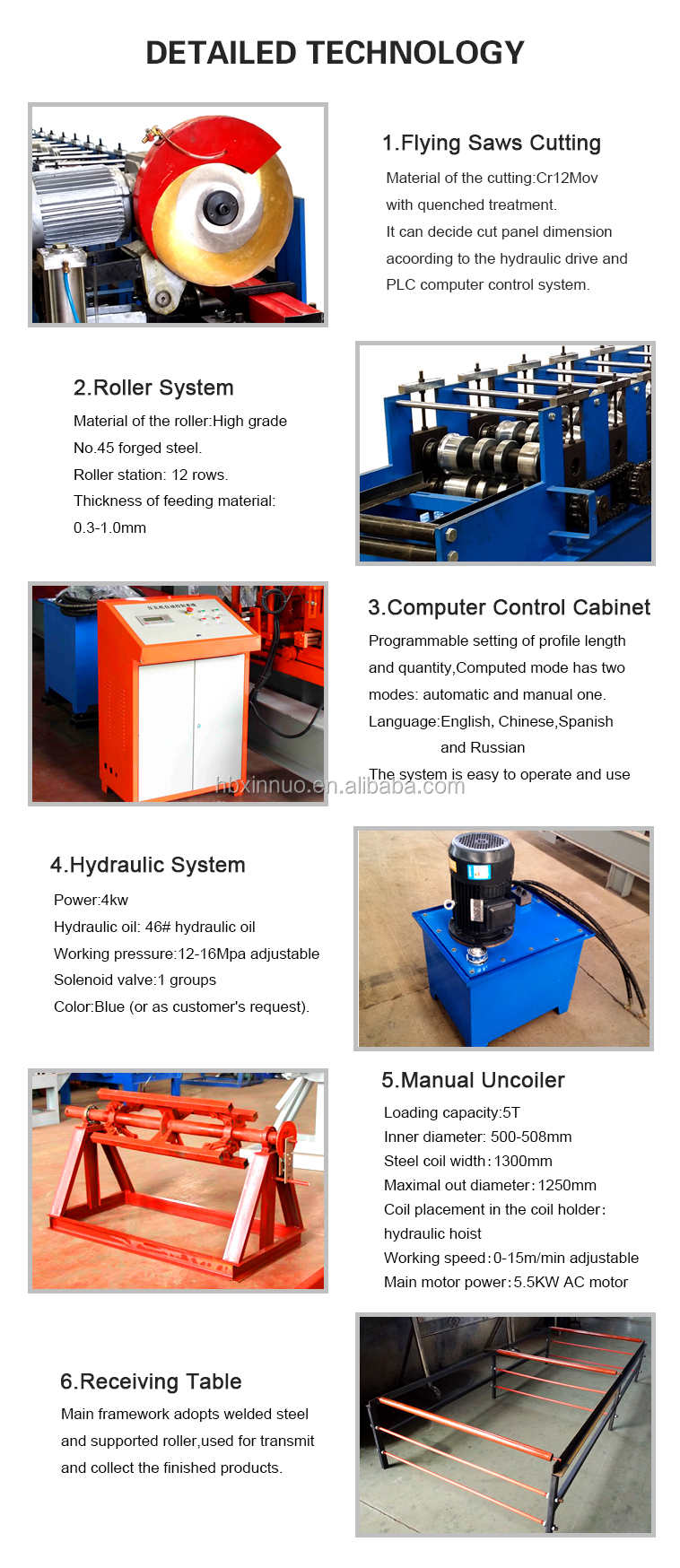

Technical Specifications

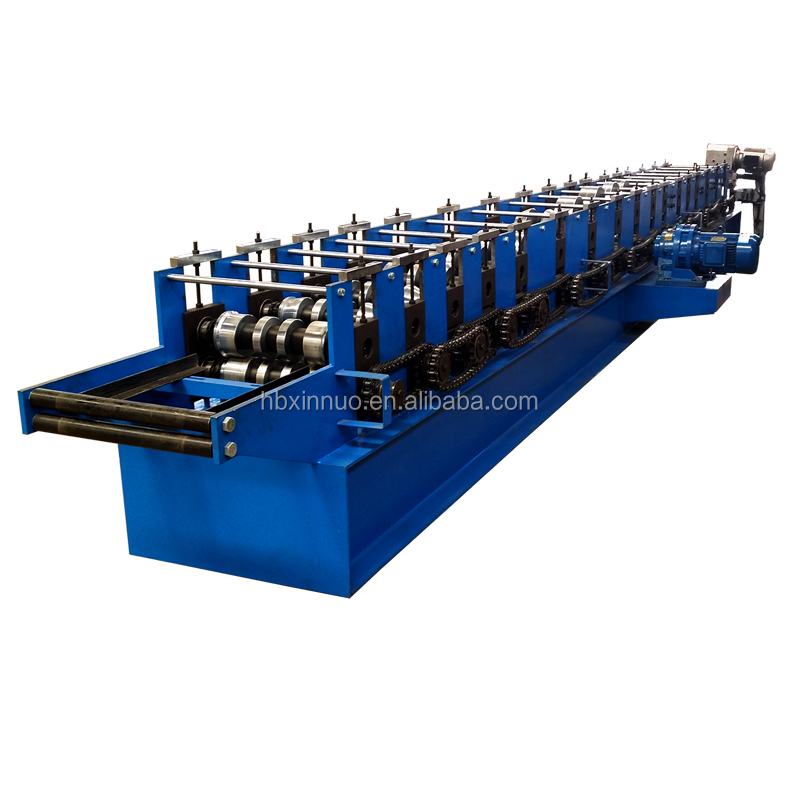

- Roller Stations
- 12
- Compatible Material Thickness
- 0.3 - 1.0 mm
- Roller Material
- No.45 Forged Steel
- Cutting Blade Material
- Cr12Mov with quenched treatment
- Control System Languages
- EnglishChineseSpanishRussian
Hydraulic & Power
Hydraulic Power
4 kW
Hydraulic Power
12 Mpa
Min Working Pressure
16 Mpa
Max Working Pressure
- Hydraulic Oil
- 46#
Uncoiler Specifications
Coil Dimensions
- Inner Diameter: 500-508mm
- Max Outer Diameter: 1250mm
- Steel Coil Width: 1300mm
- Loading Capacity
- 5 T
- Working Speed
- 15 m/min
Logistics
Packaging
| Component | Packaging Method |
|---|---|
| Main Machine | Nude |
| Control Box | Wooden Frame |
- Delivery Lead Time
- 20 days
