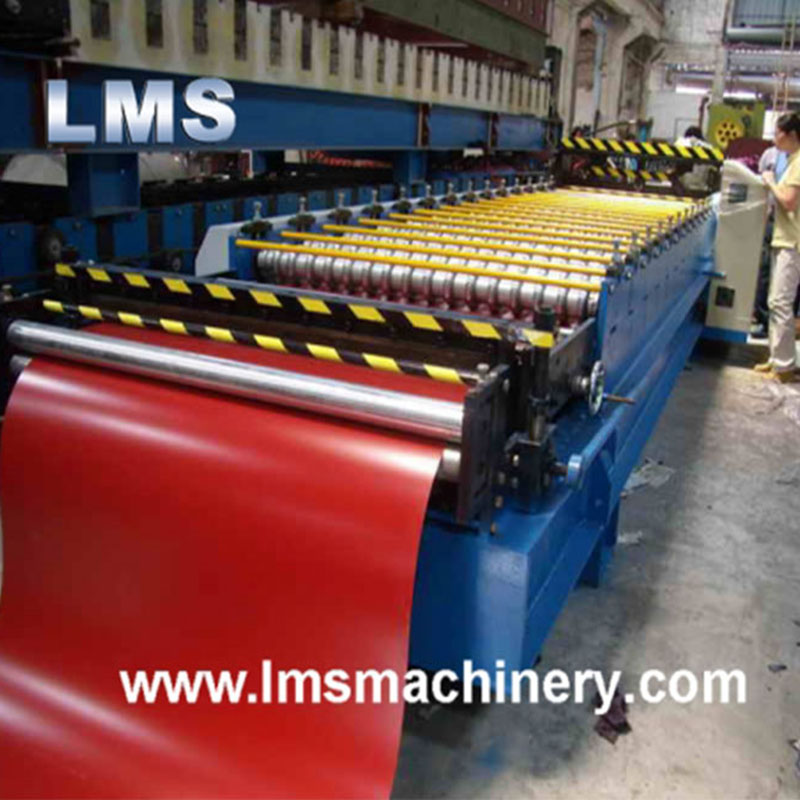

Metal Corrugated Roof Tile Roll Forming Machine
This roll forming machine is designed for manufacturing metal corrugated roof tiles. It features adjustable parameters for different tile profiles and material thicknesses.
Technical Specifications
Overview & Quality
High-Efficiency Corrugated Tile Production
This metal corrugated roof tile roll forming machine is engineered for cost-effective and reliable production, featuring a robust design that ensures smooth operation with minimal noise. Built with high-grade materials and precision components, the machine is designed for a service life exceeding 10 years. It utilizes advanced roller design software to ensure consistent, high-quality output for various roofing applications.
- Key Features
- Low Noise OperationHardened Cr40 MaterialPrecision Roller DesignAutomated Control System
Technical Specifications
Machine Technical Parameters
| Parameter | Specification |
|---|---|
| Forming Machine Power | 5.5 KW |
| Oil Pump Power | 3 KW |
| Oil Pump Pressure | 10 MPa |
| Shaft Diameter | Φ82 |
| Number of Rolls | 13 - 20 |
Material Specifications
0.25 mm
Min Thickness
1 mm
Max Thickness
1,219 mm
Shaping Width
Operational Capacity
Production Workflow
- Hydraulic decoiler
- Material feeding
- Manual shearing
- Roll forming
- Hydraulic cut-off
- Electronic control
- Run out table
- Charging Stand Capacity
- 8000 Kg
- Charging Stand Width
- 1250 mm
Commercial Terms
- Lead Time
- 60 Days
- Shipping Terms
- FOBCIF
