Technical Specifications
Overview

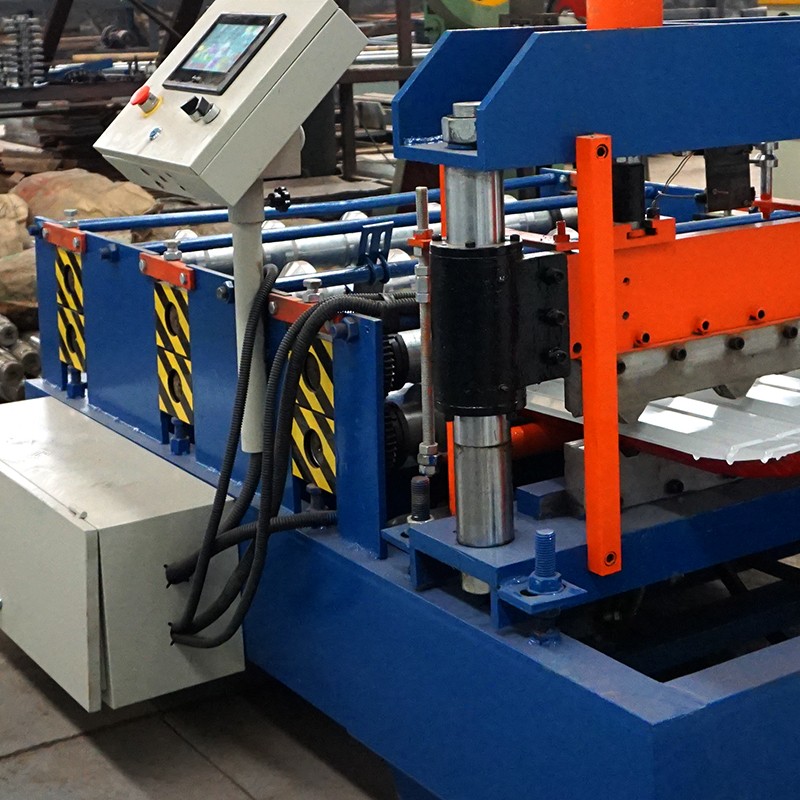

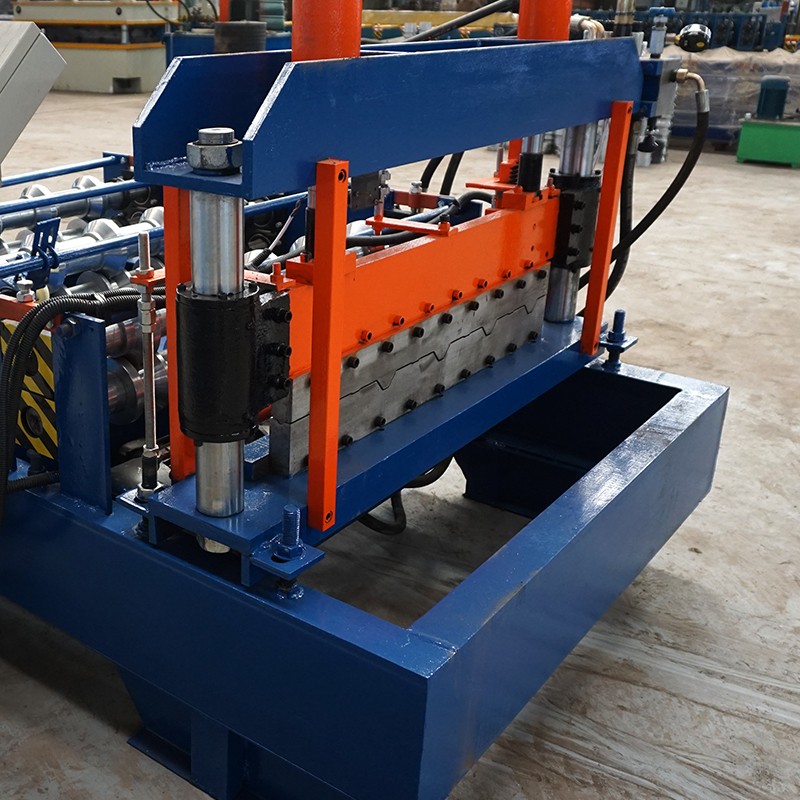

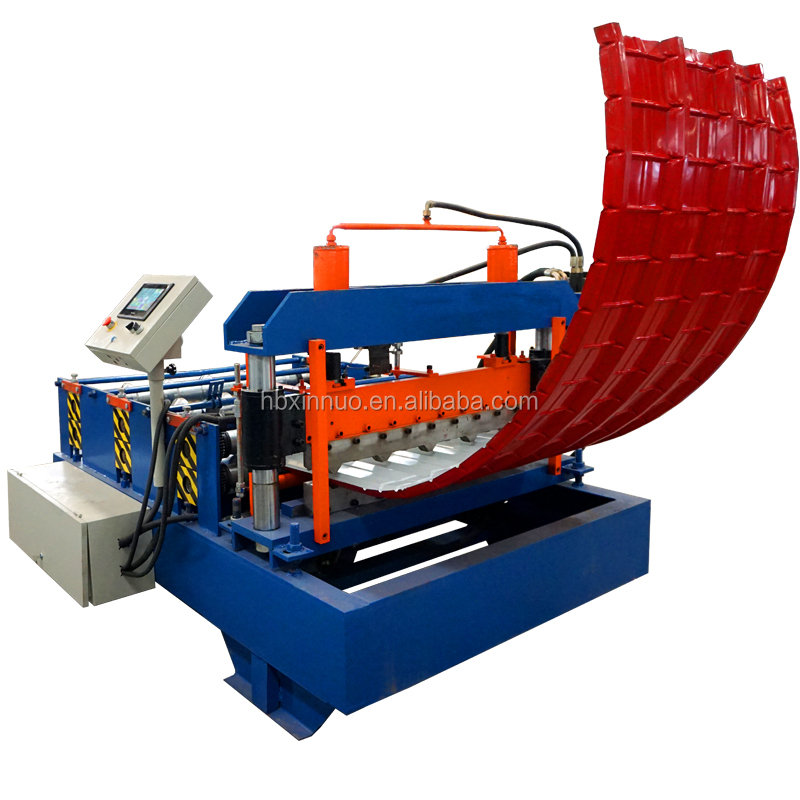

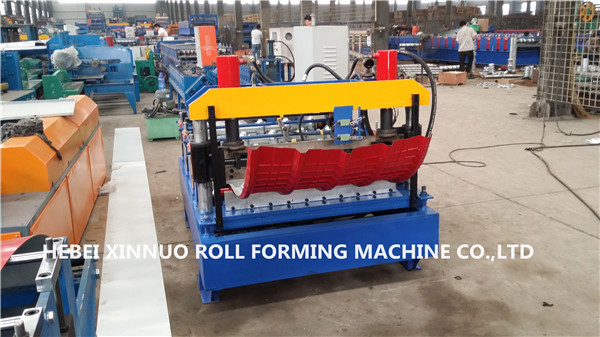

Industrial Sheet Metal Curving Machine
This manual sheet metal curving machine is engineered for high-efficiency tile manufacturing and metal forming operations. Designed for versatility, it excels at bending, folding, straightening, and leveling sheet metal to create precise tile profiles. With a robust construction and user-friendly controls, it provides consistent results for both small and medium-scale production environments.
Technical Specifications
- Suitable Material
- Color steel plate
- Plate Thickness
- 0.8 mm
- Production Speed
- 20-30m/min
- Processing Pression
- 1 mm

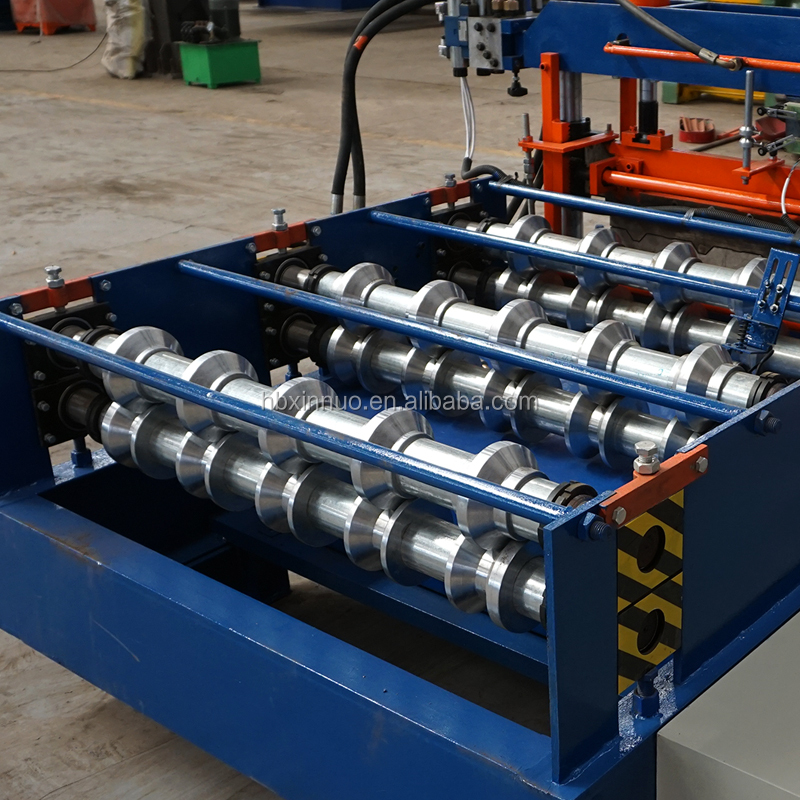

- Roller Stands
- 5
- Roller Diameter
- 70 mm

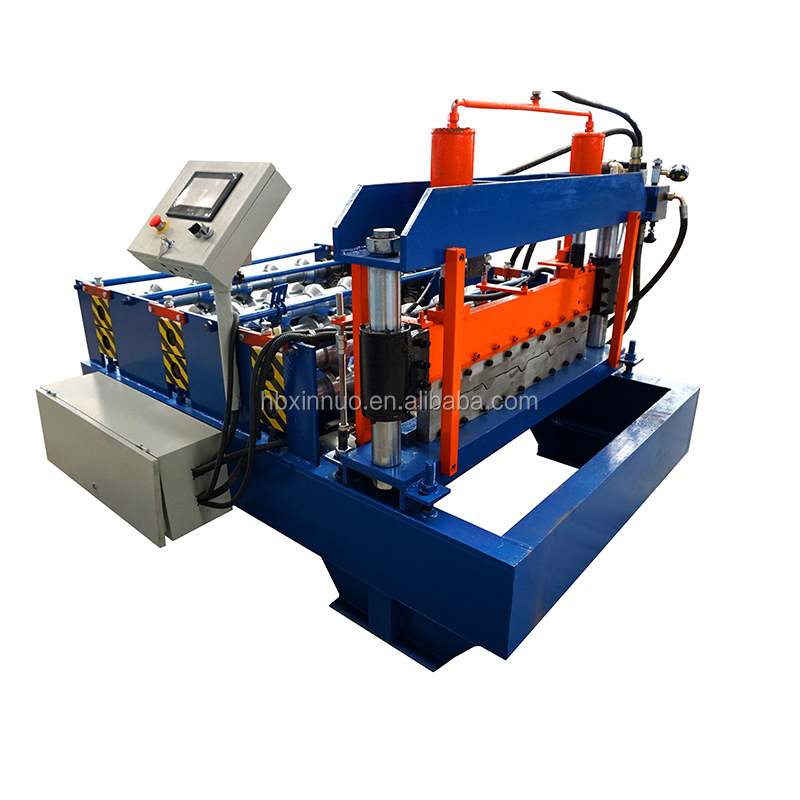

Power and Control
- Main Motor Power
- 3 kW
- Pump Power
- 4 kW
- Control System
- Delta PLC
- Voltage
- 380V 50Hz 3-phase
Construction
- Side Panel Thickness
- 14 mm
- Roller Material
- Carbon Steel 45#
- Blade Material
- Cr12, quenched
Certifications
- Compliance Standards
- ISO 9001:2008GB/T19001-2008CE Certified
