Manual Sheet Metal Curving Machine for Tile Manufacturing
This manual sheet metal curving machine is designed for tile manufacturing. It is suitable for bending, folding, straightening, and leveling metal sheets into desired tile shapes.
Technical Specifications
Product Overview
Manual Sheet Metal Curving Machine
This manual sheet metal curving machine is a robust, versatile solution designed for tile manufacturing plants. It excels at bending, folding, straightening, and leveling metal sheets to create custom, precise tile profiles. With its durable construction and efficient operation, this machinery is an essential asset for metalworking shops looking to produce high-quality, curved metal components with consistent results.
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Suitable steel plate | Color steel plate |
| Sheet thickness | 0.3-0.8 mm |
| Feeding width | Customizable |
| Processing precision | Within 1.00 mm |
| Control system | PLC control |
Construction & Materials
Build Quality

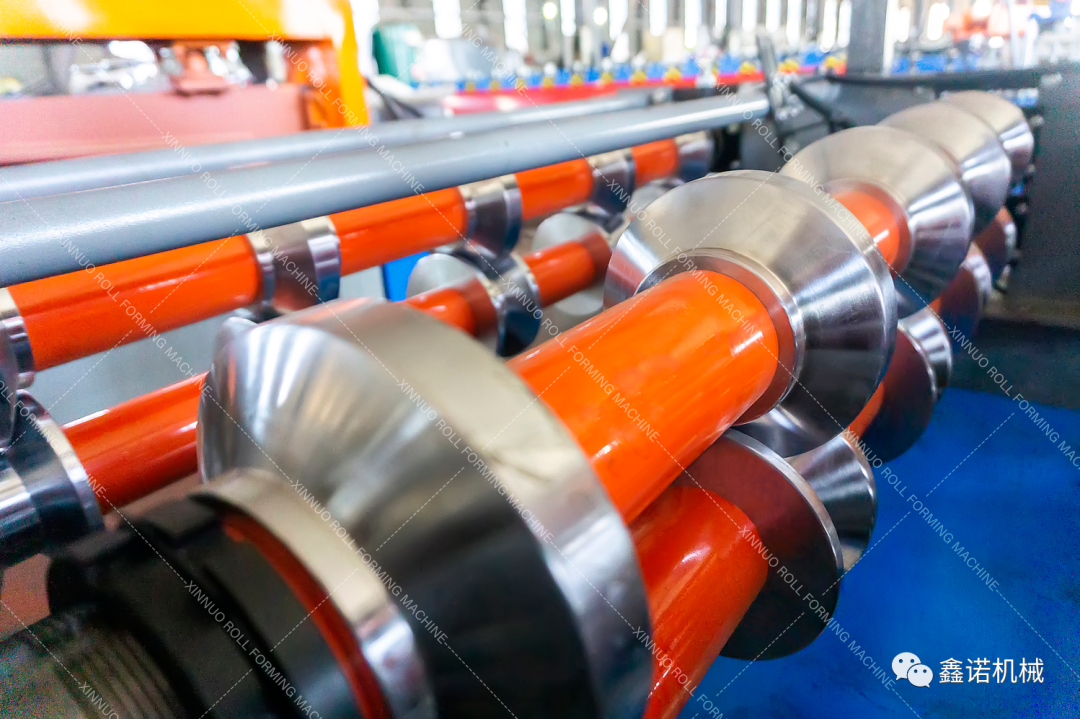

- Roller material: Carbon Steel 45#

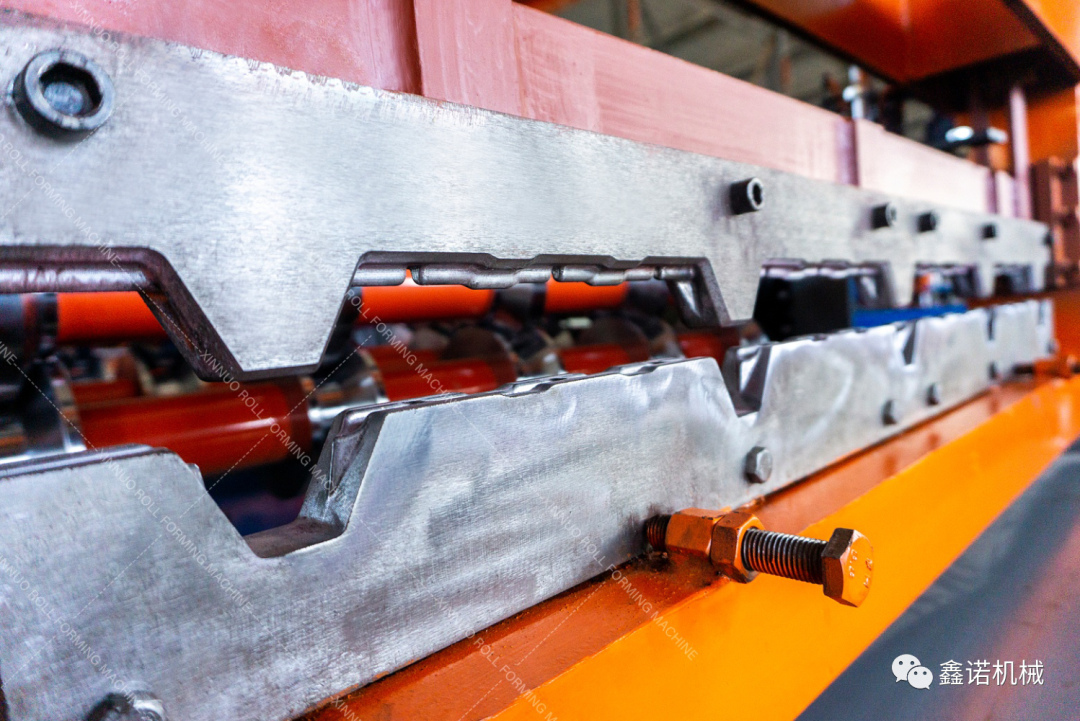

- Blade material: Cr12 (quenched)
- Machine side panel thickness: 14 mm
- Roller stand: 5 rows
- Roller diameter: 70 mm
Performance & Power
Operational Metrics
25 m/min
Production Speed
3 kw
Main Power
5.5 kw
Pump Power
- Electrical Requirements
- 380V 50Hz
