Technical Specifications
Overview
Industrial Tile Manufacturing Solution

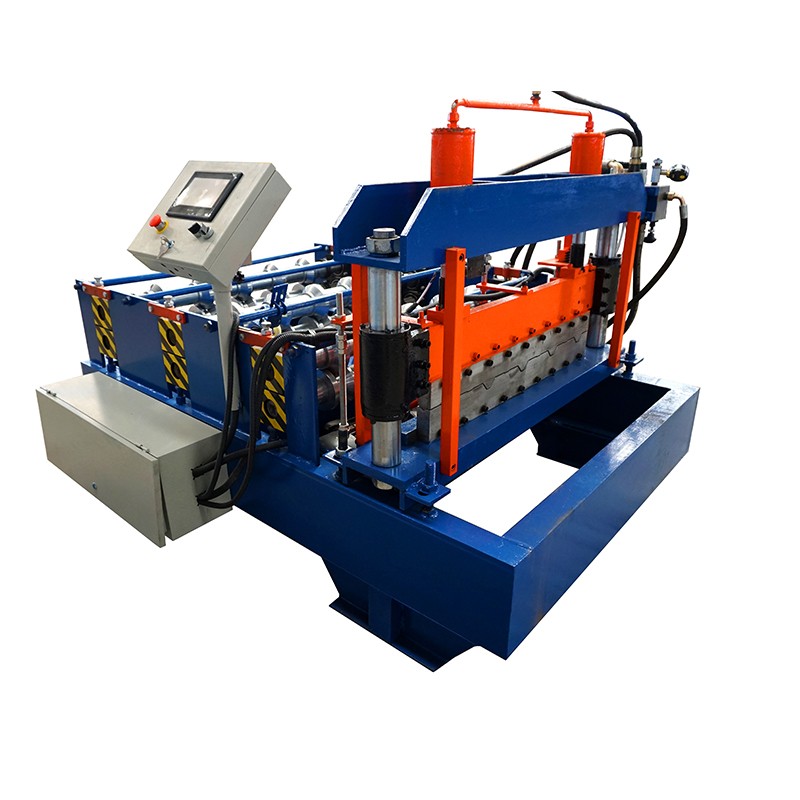

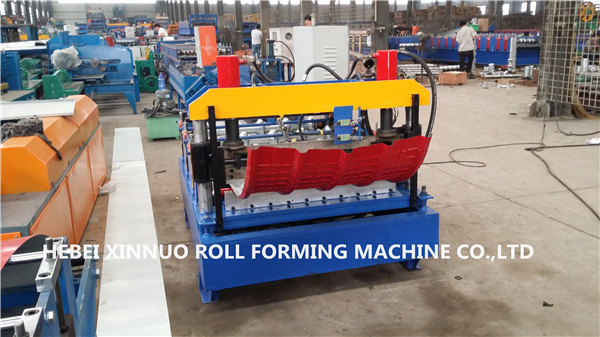

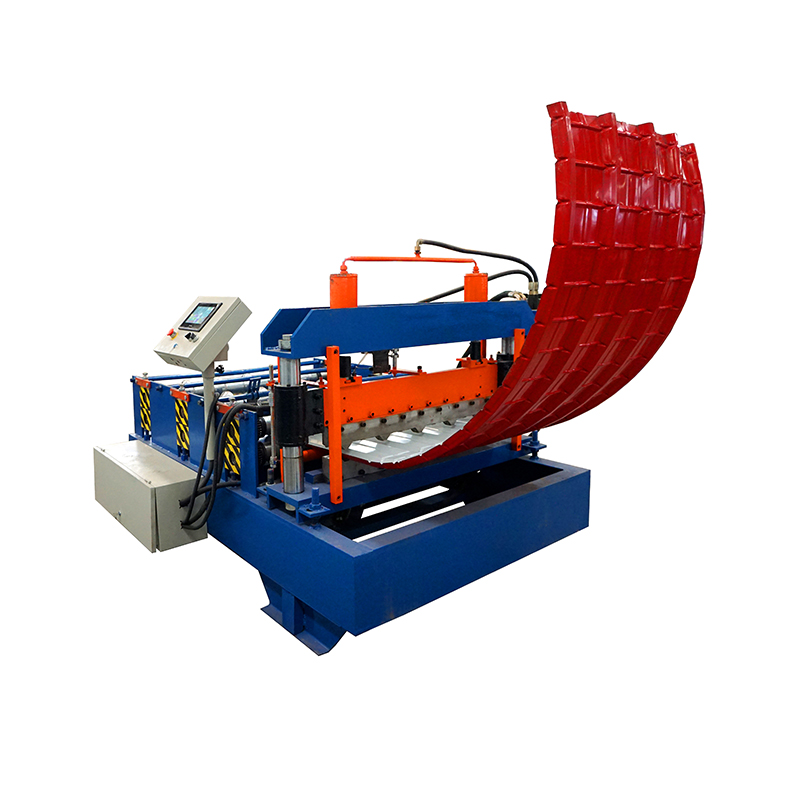

This manual sheet metal curving machine is a robust, industrial-grade solution designed for precision tile manufacturing. It excels at bending, folding, and shaping metal sheets into custom tile profiles, offering consistent performance for roofing and construction applications. Equipped with a reliable control system and durable roller components, it provides an efficient and cost-effective way to produce high-quality curved metal tiles.
Technical Specifications
- Suitable Material
- Color steel plate
- Material Thickness
- 0.3-0.8 mm
- Feeding Width
- Customizable per user requirements
- Processing Pression
- Within 1.00 mm
Performance Metrics
Production Speed
20 m/min
Min Speed
30 m/min
Max Speed

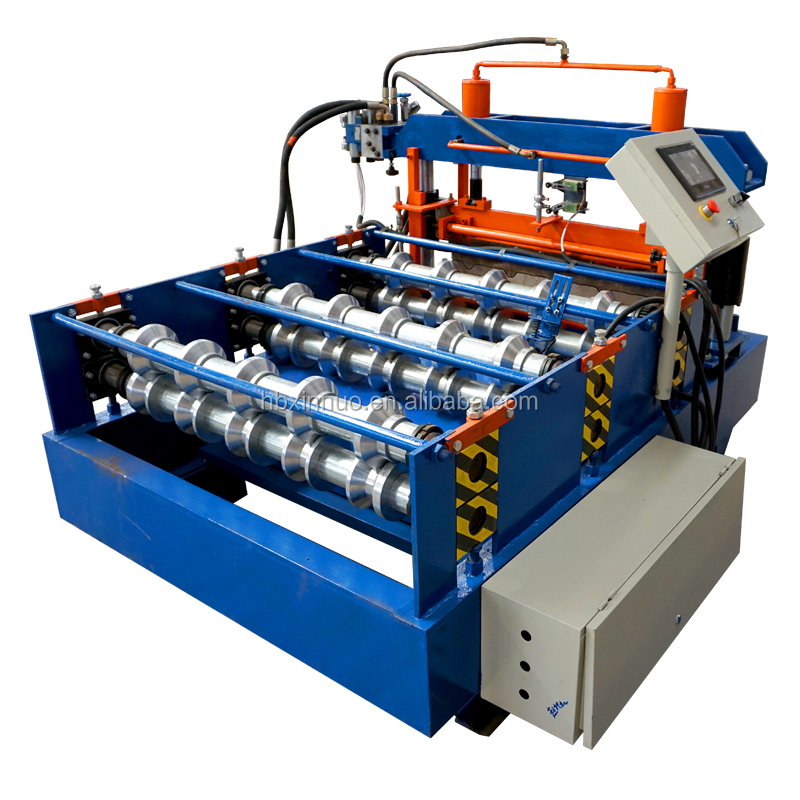

Machine Construction

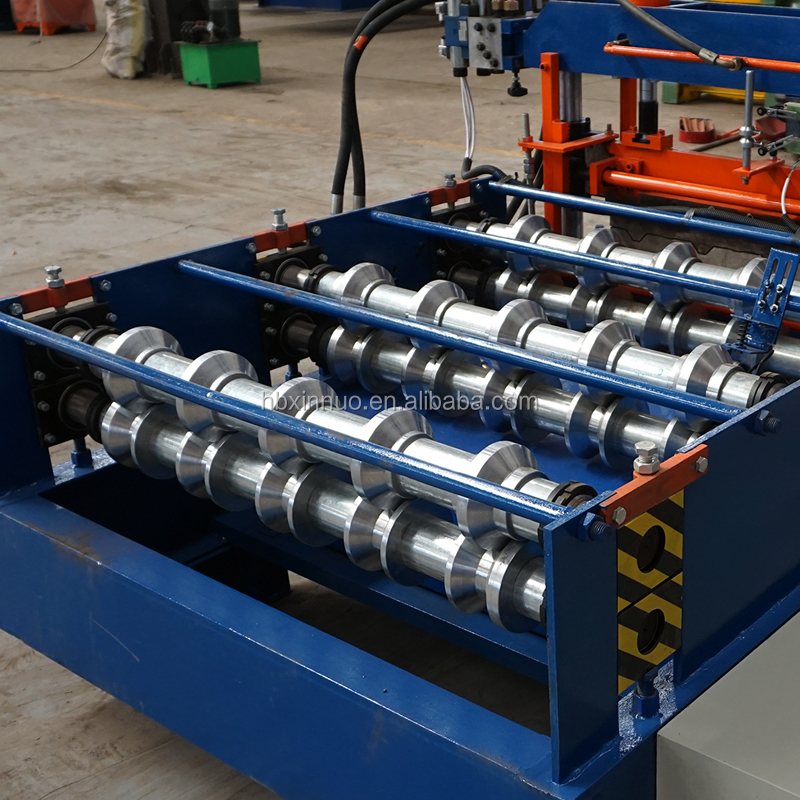

- Roller Stands
- 5 rows
- Roller Diameter
- 70 mm
- Side Panel Thickness
- 14 mm
Materials
Component Materials
| Component | Material |
|---|---|
| Rollers | Carbon Steel 45# |
| Blades | Cr12 (Quenched) |

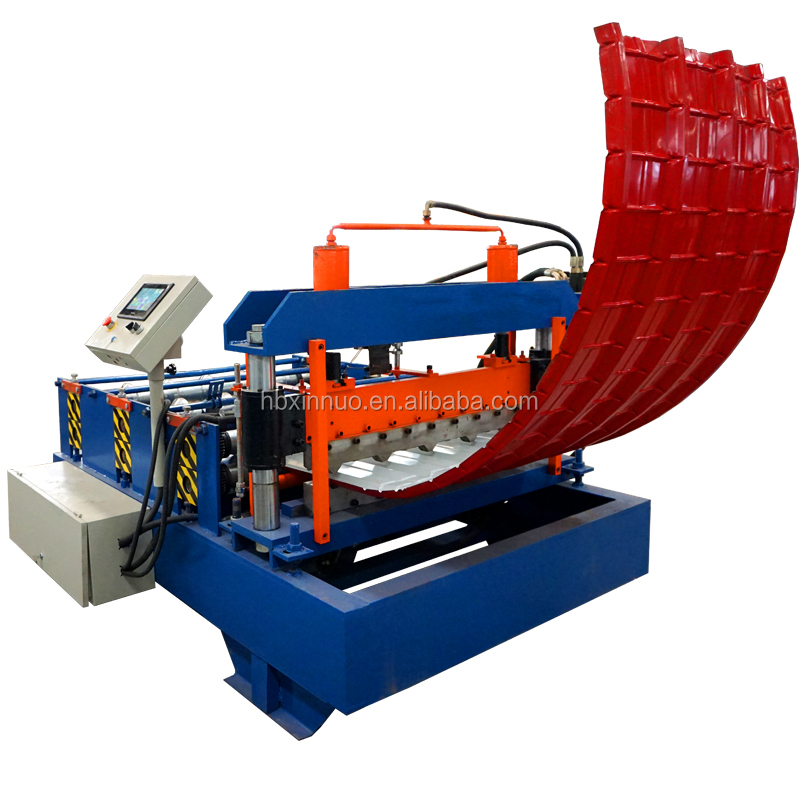

Power and Control
Power Requirements
- Main Power: 3kW
- Pump Power: 4kW
- Voltage: 380V 50Hz 3-phase
- Control System
- Delta PLC Control
Compliance
- Certifications
- ISO 9001:2008CE CertifiedMachinery Directive 2006/42/EC
