Manual Butt Fusion Welding Machine for Polyethylene Pipes
This manual butt fusion welding machine is designed for joining polyethylene pipes. It provides a reliable method for creating strong, leak-proof pipe connections.
Technical Specifications
Overview
Professional Butt Fusion Welding
This manual butt fusion welding machine is engineered for the reliable joining of polyethylene (PE) pipes in various industrial, plumbing, and irrigation applications. Featuring a robust frame and precise alignment mechanisms, it ensures consistent, leak-proof connections that match the strength of the original pipe. The portable, hand-operated design provides field technicians with full control over the welding process, including pressure and heating time, making it an essential tool for high-quality on-site piping installations.

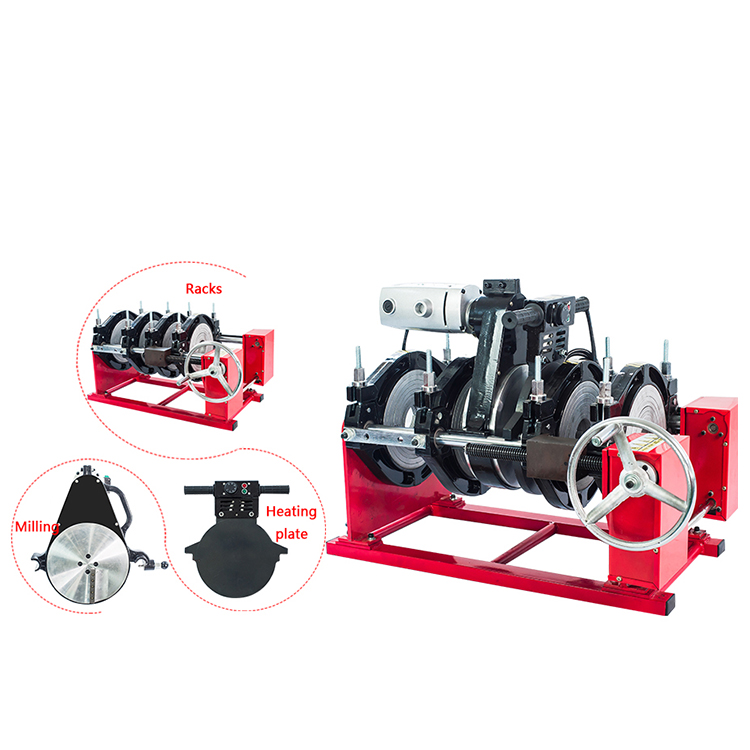

Key Components
Core Components
- Robust machine frame

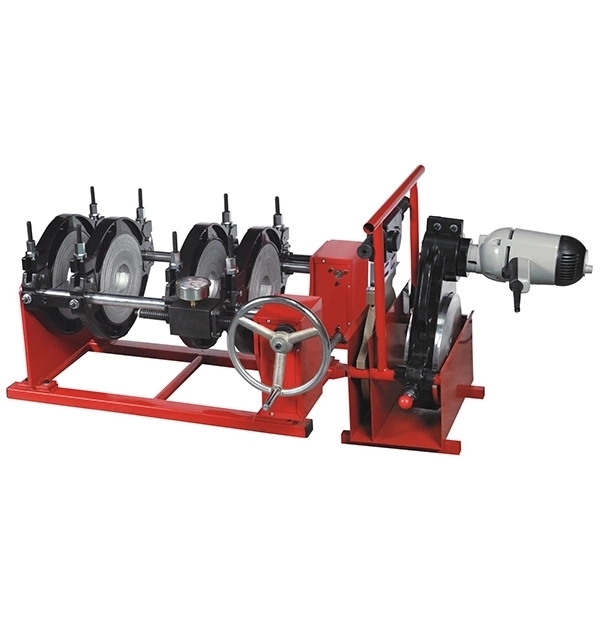

- Adjustable pipe clamping system
- Electric heating plate
- Manual milling cutter (facing tool)
- Alignment racks
- Hand-operated pressure wheel

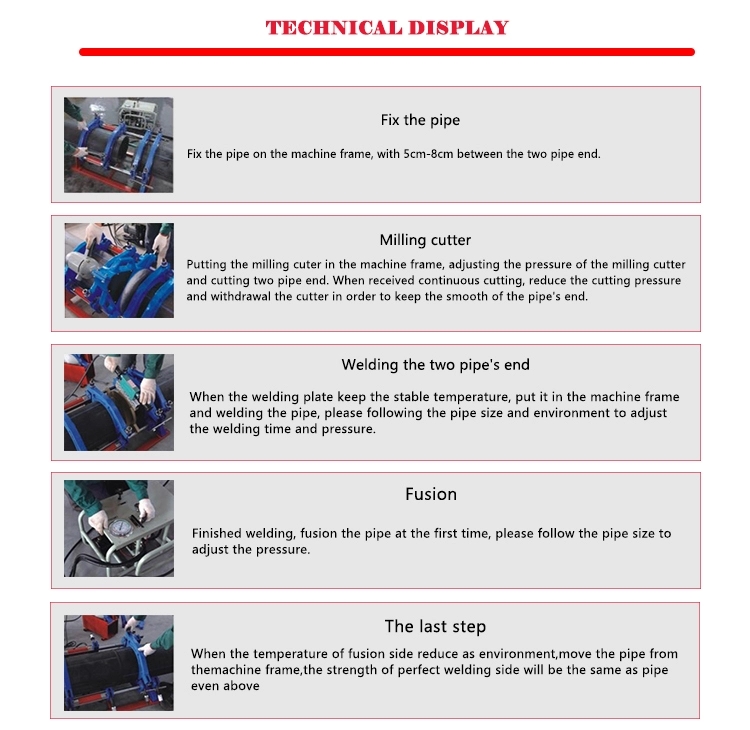

Technical Process
Welding Workflow
| Step | Action |
|---|---|
| Preparation | Secure pipes in frame with 5-8cm gap |
| Milling | Use cutter to face pipe ends for smooth surface |
| Heating | Apply heating plate at controlled temperature |
| Fusion | Join pipe ends under adjusted pressure |
| Cooling | Allow joint to cool to ambient temperature |
Applications
- Suitable Applications
- Plumbing SystemsGas PipelinesIndustrial PipingIrrigation SystemsWater Supply
Operation & Features
Operational Features
Manual OperationPortable DesignAdjustable PressurePrecise AlignmentLeak-Proof Joints
