Light Steel Keel Roll Forming Machine
This automatic machine is engineered for the high-precision manufacturing of light steel keels. It integrates forming, punching, and cutting processes into a continuous automated line with a robust steel frame.
Technical Specifications
Overview
Automated Light Steel Keel Production

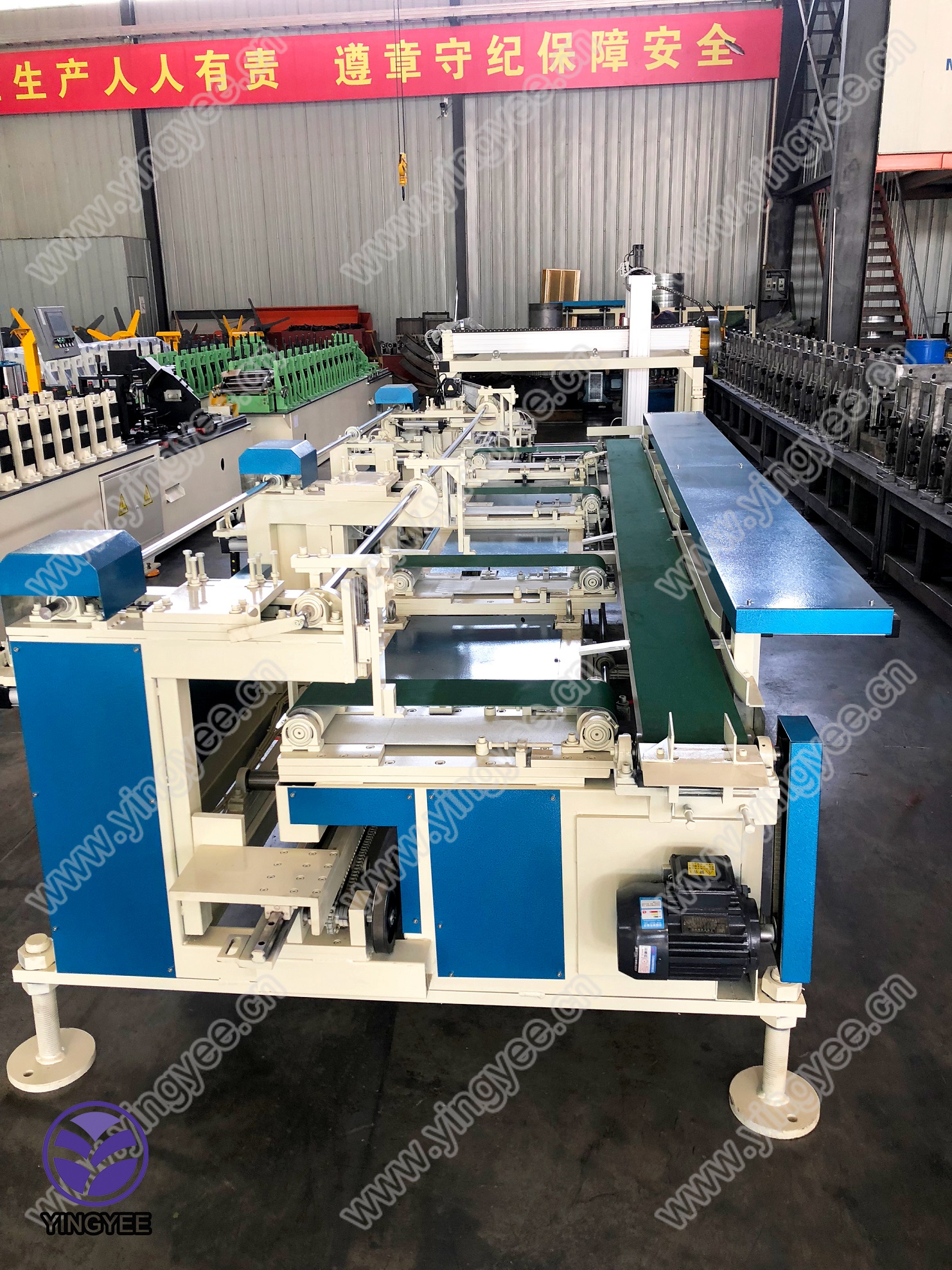

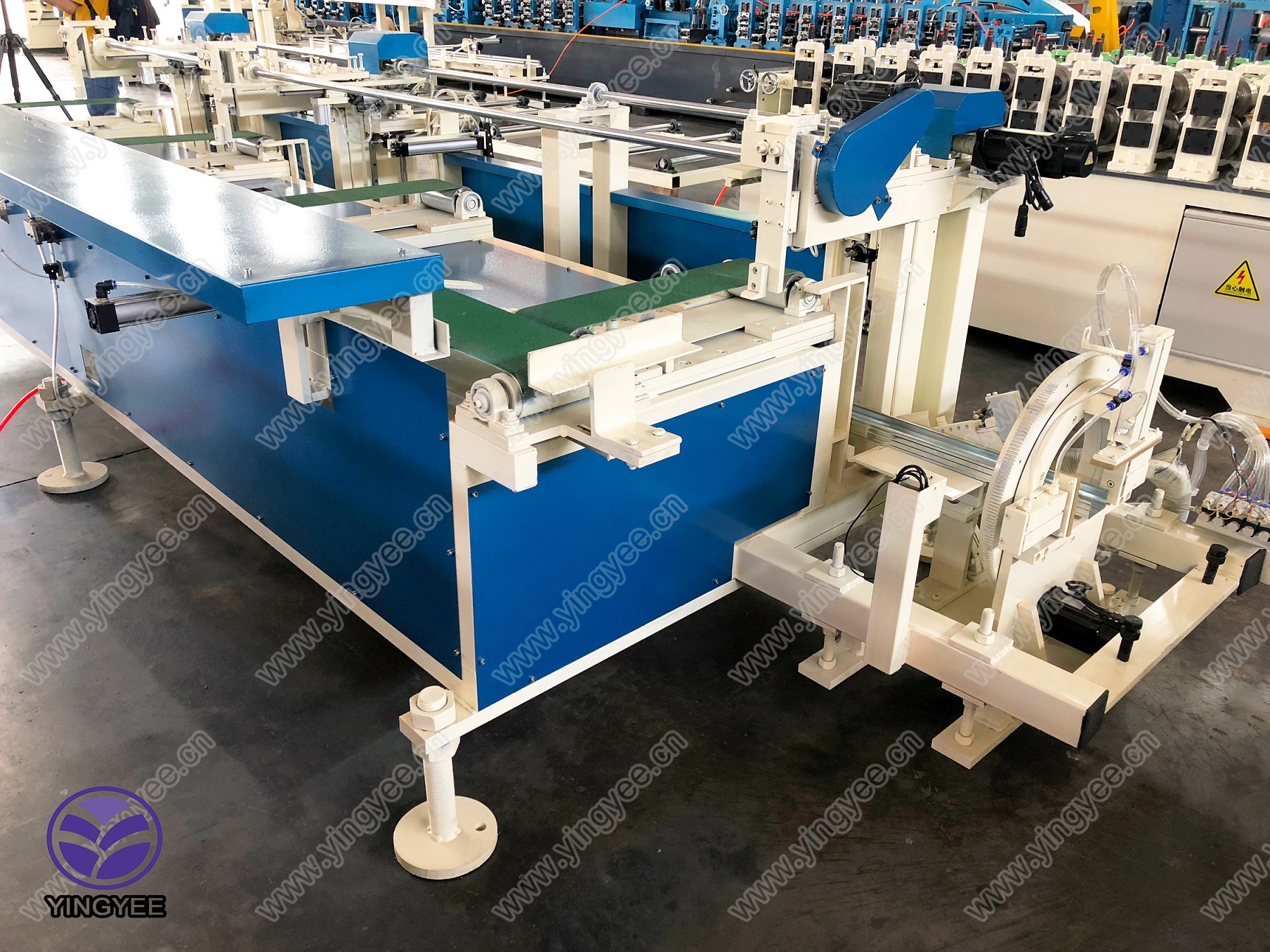

This automatic light steel keel roll forming and packing line is engineered for high-precision manufacturing of various profiles, including 38/50, main channels, and stud & track systems. The integrated system combines roll forming with automated packing technology, featuring advanced servo-driven components for material turning, tape winding, labeling, and palletizing. Designed for efficiency, the line ensures consistent product quality, reduced labor requirements, and high-speed operation suitable for large-scale construction environments.
Performance Metrics
Packing Speed
- Total Power Capacity
- 6.8 kw
Physical Dimensions
Floor Area Requirements
| Configuration | Floor Space |
|---|---|
| Standard Machine | 8.5m x 2.3m |
| With 3m Keel | 7m |
| With 4m Keel | 9m |
System Components
Production Line Stages
- Turning Material & Engaging
- Tape Winding
- Material Pulling
- Labeling
- Palletizing
Electrical & Control
Key Electrical Components
| Component | Quantity |
|---|---|
| PLC | 2 |
| Touch Screen | 1 |
| Servo Motors | 7 |
| Photoelectric Switches | 5 |
| Frequency Changers | 1 |
- Control System
- PLC ControlTouch Screen InterfaceServo Motor DriveFrequency Control
Technical Construction
Construction Materials
- Frame: Square welding tube 80*80*3
- Conveyor: Thickened non-slip belt
- Hooks: Cr12 with heat treatment
- Driven Shafts: 45# steel with chrome plating
- Manipulator: Heavy-duty aluminum extrusions
