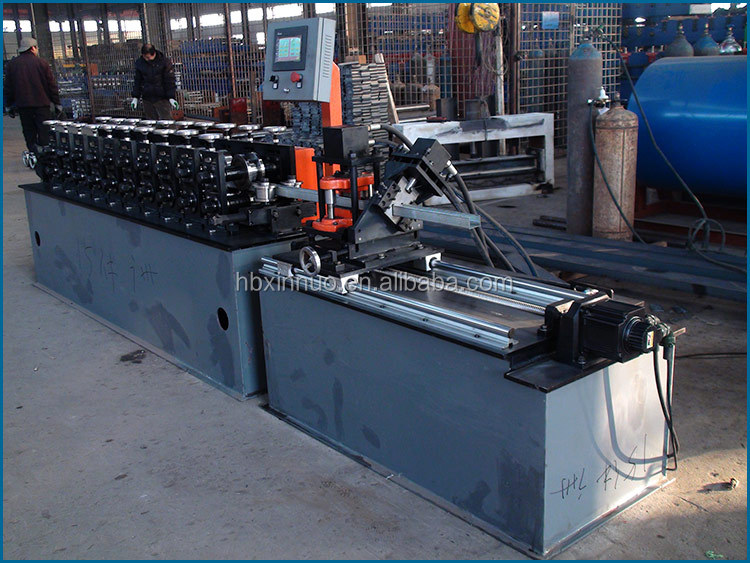

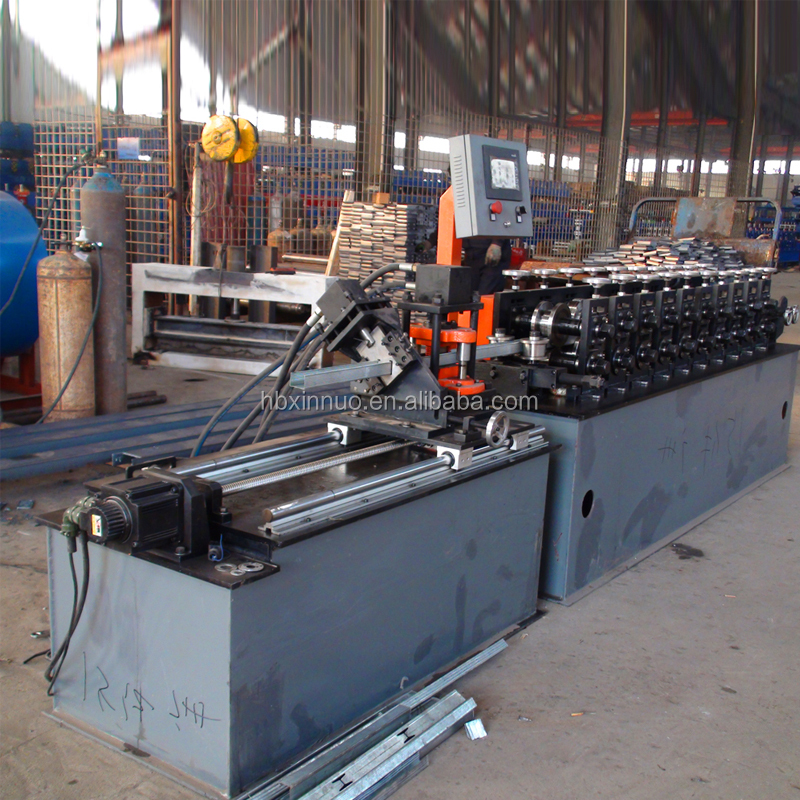

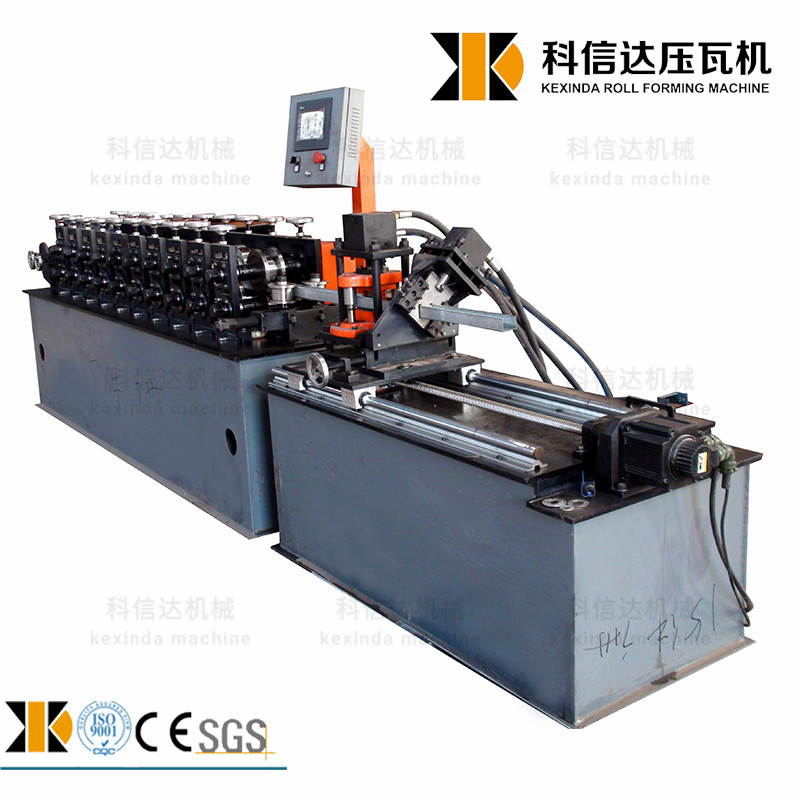

Light Steel Keel Roll Forming Machine
This roll forming machine produces light steel keels for drywall furring profiles. It shapes color steel plate, galvanized sheet, and aluminum coils into precise forms using a series of rollers.

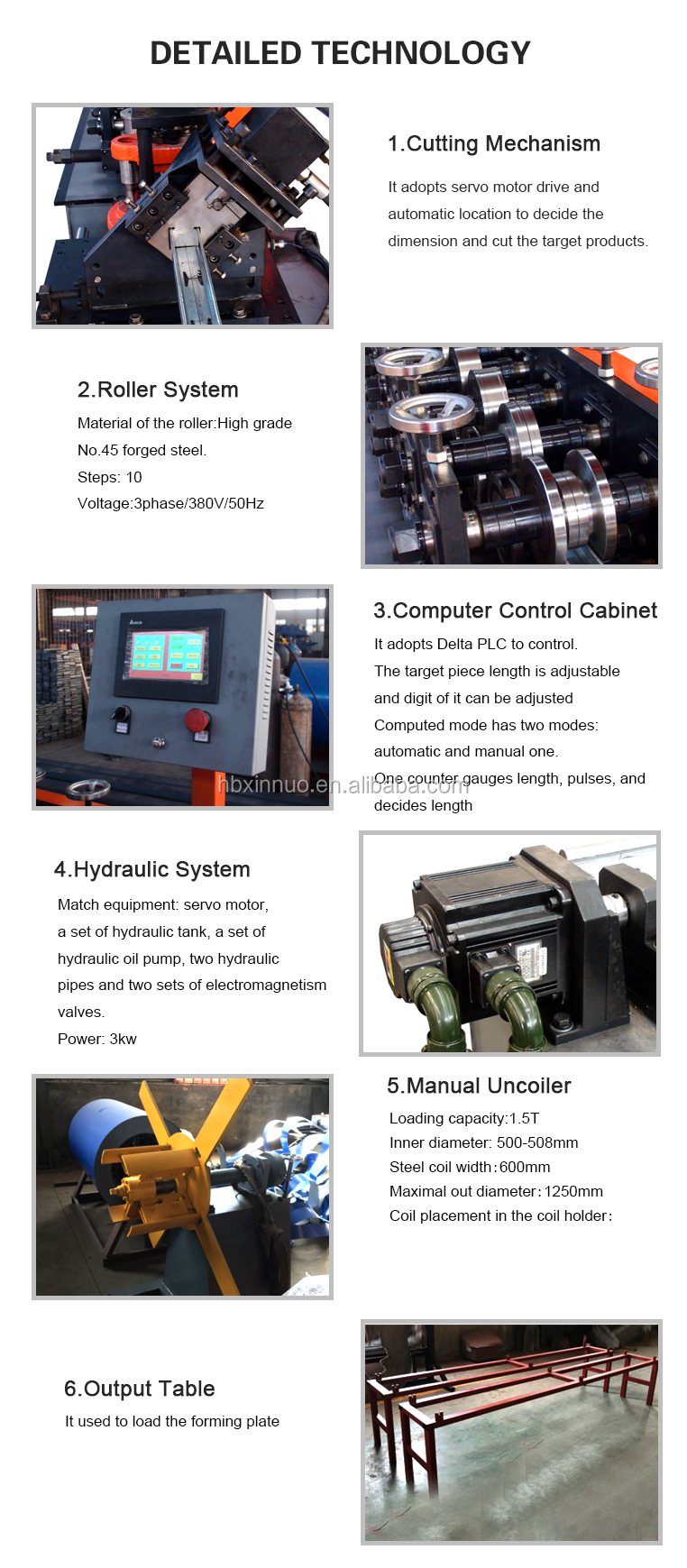

Technical Specifications
Overview
High-Efficiency Keel Production
This light steel keel roll forming machine is engineered for the precise and efficient production of drywall omega furring profiles. It features a robust multi-station rolling system and an advanced PLC-based control interface, allowing for seamless operation and high-volume manufacturing. Designed to handle various metal types including color steel, galvanized sheet, and aluminum, this machine ensures consistent quality and minimal material waste for professional construction applications.
Technical Specifications
- Roller Stations
- 10 rows
- Roller Material
- 45# Forged Steel with Chrome Plating
- Control System
- Delta PLC with Colored Touch Screen
- Power Supply
- 3-Phase, 380V, 50Hz
Material & Processing
Production Speed
50 m/min
Max Speed
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
- Feeding Material Thickness
- 0.3 mm
Uncoiler & Hydraulic System
Uncoiler Specifications
| Parameter | Value |
|---|---|
| Inner Diameter | 500-508 mm |
| Max Outer Diameter | 1250 mm |
| Steel Coil Width | 600 mm |
- Hydraulic System Power
- 3 kW
- Uncoiler Loading Capacity
- 1.5 T
