Light Steel Frame Automatic Forming Machine

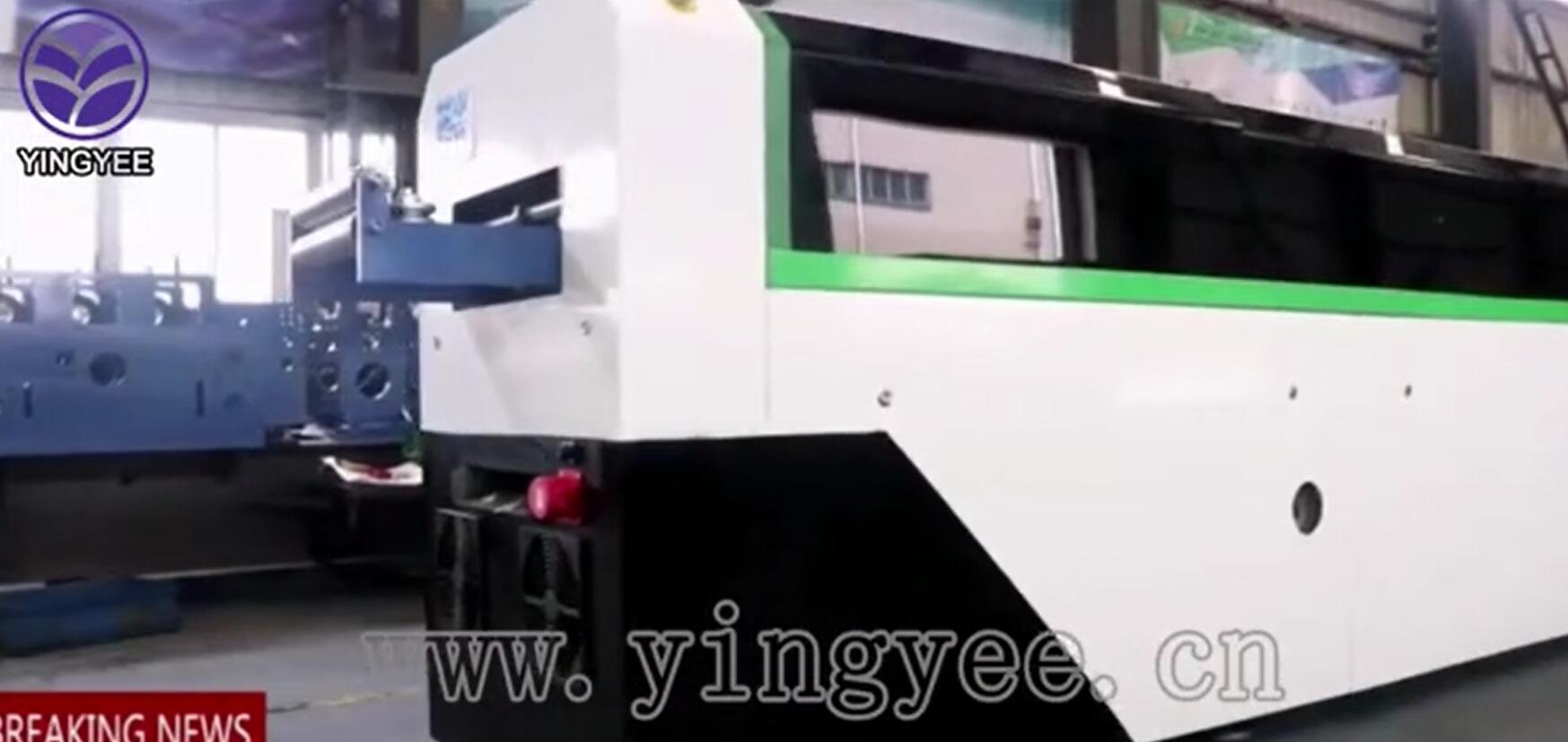

This automatic forming machine is designed for producing light steel frame components. It automates the shaping and forming of steel for light steel villa construction, ensuring precision and efficiency.
Technical Specifications
Overview
High-Precision Light Steel Frame Production
This automatic forming machine is engineered for the high-volume production of light steel frame structural elements. Featuring advanced post-punching capabilities, it ensures exceptional precision in both positioning and dimensions for residential construction components. The system integrates multiple specialized molding tools to streamline assembly and installation, delivering consistent, high-quality profiles ready for seamless structural connection.
Technical Specifications
- Punching Method
- Post Punching
- Die Material
- SKD11
- Cutting Method
- Forming Cutter, Blanking shear with three blades
- Blade Material
- SKD11
- Surface Treatment
- CNC semi-finishing, Vacuum treatment to 58-60HRC, CNC refining
Tooling Configuration
Integrated Moulding Tools
| Tool Name | Specification | Quantity | Function/Benefit |
|---|---|---|---|
| Lip notch tool | 12x50 | 2 | Easy for Install |
| Dimple hole mould | Ф3.3 | 2 | Screw using |
| Installing hole mould | Ф13 | 1 | Sill Anchor Using |
| Service hole mould | 60x30 | 1 | Water/Electric Wire Using |
| Web notch mould | 89x50 | 1 | Easy for Install |
| Chamfering mould | 45° | 2 | Easy for Install |
| Web swaging mould | - | 1 | Easy for Install |
| Forming cutter | - | 1 | Profile more standard |
| Patent Seamless End Cutting mould | - | 1 | Wall/Purlin connection without gap |
