Light Keel Roll Forming Machine for Metal Ceiling Tiles

This machine is designed for producing light keels used in metal ceiling tile construction. It automatically forms galvanized sheets into the desired profiles with a production speed of up to 25 meters per minute.

Request a Quote Download PDFPDF

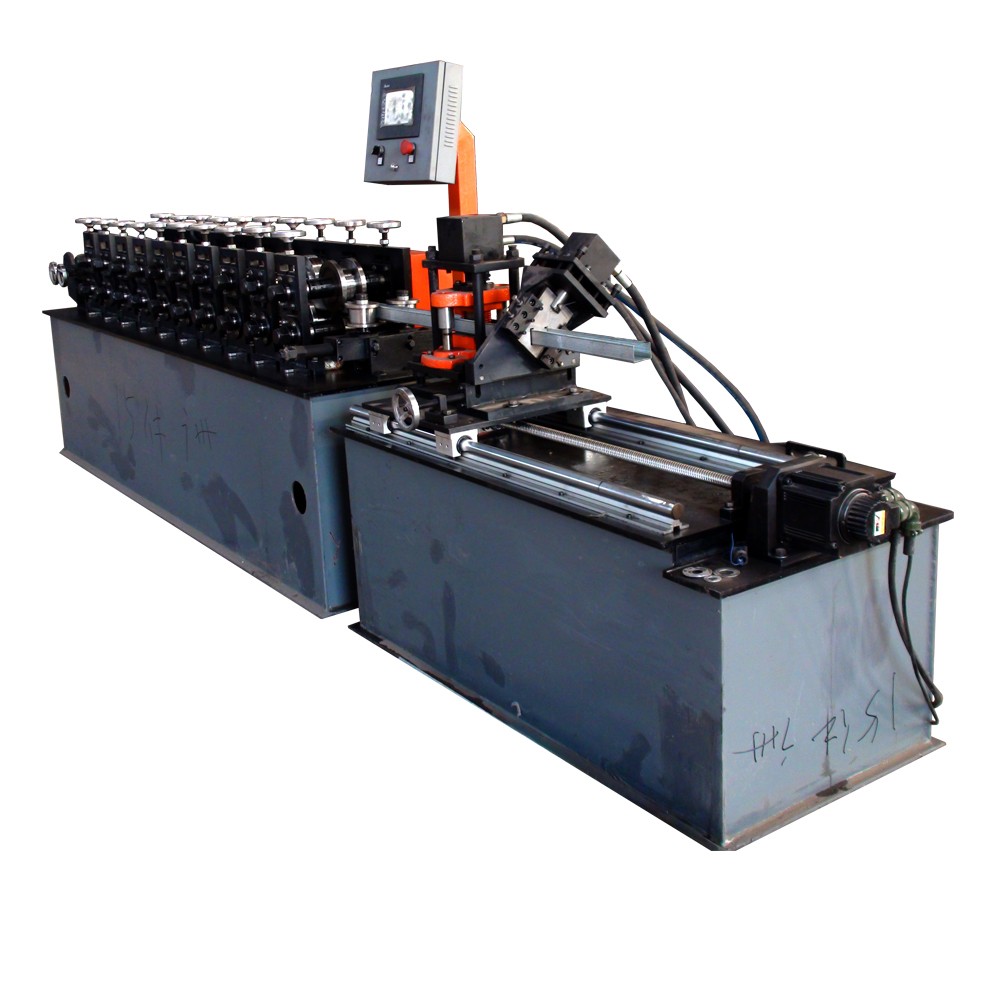

light keel machine for metal ceiling tiles machine - Image 1

Technical Specifications

Overview

High-Efficiency Light Keel Roll Forming System

This automated roll forming machine is engineered for the precise, high-volume production of light keel profiles used in metal ceiling tile construction. Featuring a robust steel frame and precision-engineered rollers, the system ensures consistent dimensional accuracy for various ceiling components. Equipped with advanced controls and a reliable cutting mechanism, it provides a seamless manufacturing experience for industrial applications.

Side view of the metal ceiling tile forming machine — Robust machine frame with integrated rollers for consistent output.

Technical Specifications

Voltage: AC380/50-60Hz
Total Power: 6 kW
Dimensions (L x W x H): 4000mm x 1300mm x 1100mm
Operation Mode: Automatic

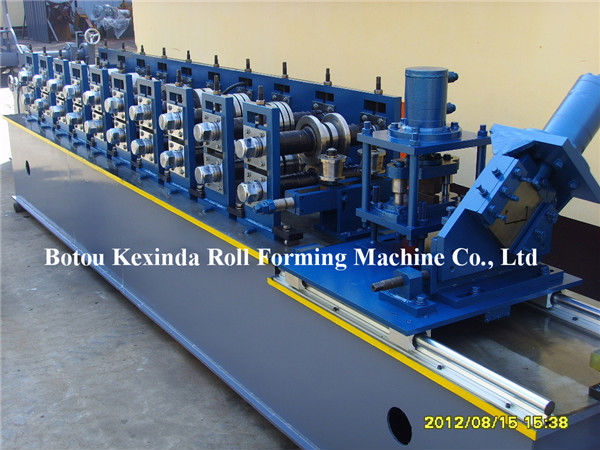

Roll forming machine with hydraulic system — Automated roll forming system with hydraulic and electrical controls.

Performance Metrics

Production Speed

25 m/min

Max Speed

Compatible Sheet Thickness: 0.35mm - 0.6mm
Roller Material: 45# Steel

Forming Capabilities

Supported Profile Models

U220-63-25
U220-63-26
U100-70-35
U100-70-24
C230x60
C60x30x15

Standard Formed Width: 25mm x 25mm

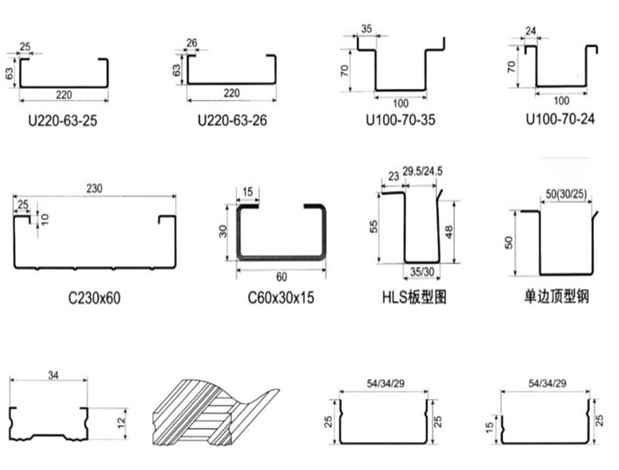

Diagram showing various light keel profiles and dimensions — Supported keel profiles including U-shaped and C-shaped sections.

Certifications & Features

Control Features

PLC ControlEmergency StopSpeed Adjustment

Certifications: CE

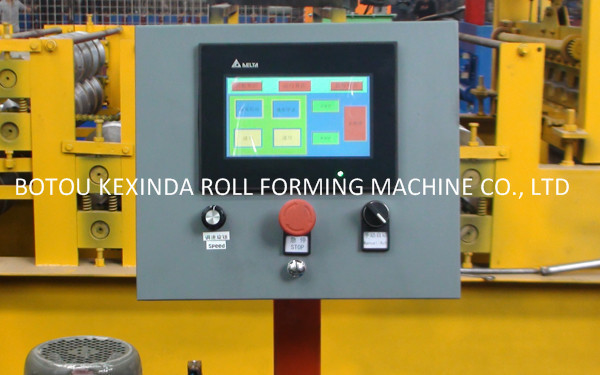

Close up of the machine control panel with PLC interface — Integrated PLC control panel for precise speed and operation management.
