Technical Specifications
Overview
High-Efficiency Roll Forming Solution

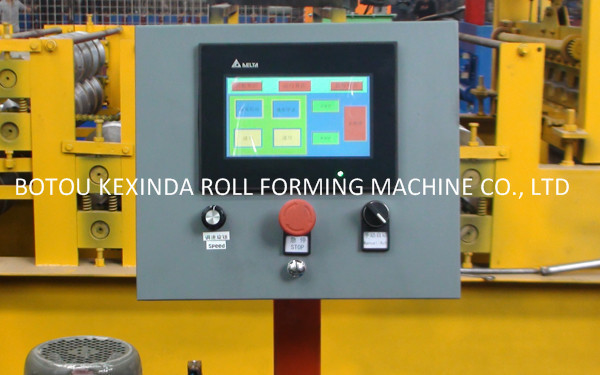

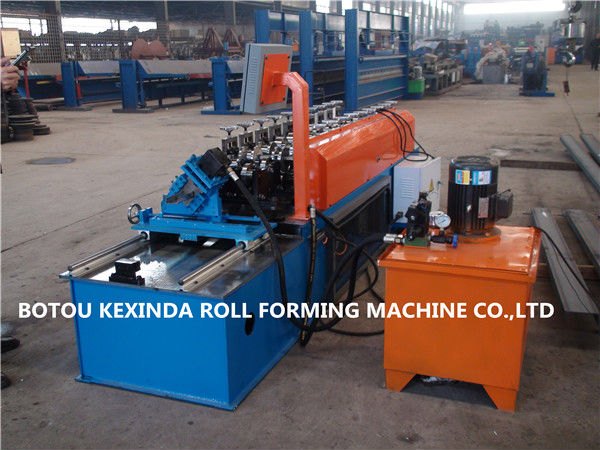

This industrial-grade roll forming machine is specifically engineered for the high-volume production of light keel sections used in metal ceiling tile systems. Featuring a robust construction and fully automated operation, it ensures consistent, high-precision results for diverse construction and interior design applications. The system is designed to handle galvanized sheet materials with adjustable parameters to accommodate various profile requirements, offering a reliable solution for manufacturers seeking durability and performance.
Technical Specifications
Key Performance Metrics
25 m/min
Max Productivity
6 kW
Total Power
0.6 mm
Max Sheet Thickness
Machine Specifications
| Feature | Specification |
|---|---|
| Operation Mode | Automatic |
| Roller Material | 45# Steel |
| Compatible Material | Galvanized Sheet |
| Voltage | AC380V / 50-60Hz |
| Dimensions (LxWxH) | 4000 x 1300 x 1100 mm |
Production Capabilities

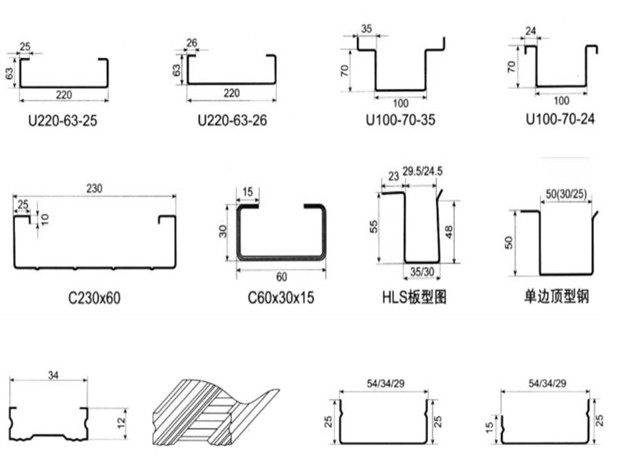

Supported Profiles
- U-shaped profiles (e.g., U220-63-25, U100-70-35)
- C-shaped profiles (e.g., C230x60, C60x30x15)
- Single-sided top steel
- HLS plate types
- Formed Width
- 25 x 25 mm
Certification & Standards
- Certifications
- CEIAFJAF
