Light Keel Roll Forming Machine

This light keel roll forming machine is designed for efficient production of light steel keels. It features multiple forming stations with adjustable rollers to accommodate various keel profiles.

Request a Quote Download PDFPDF

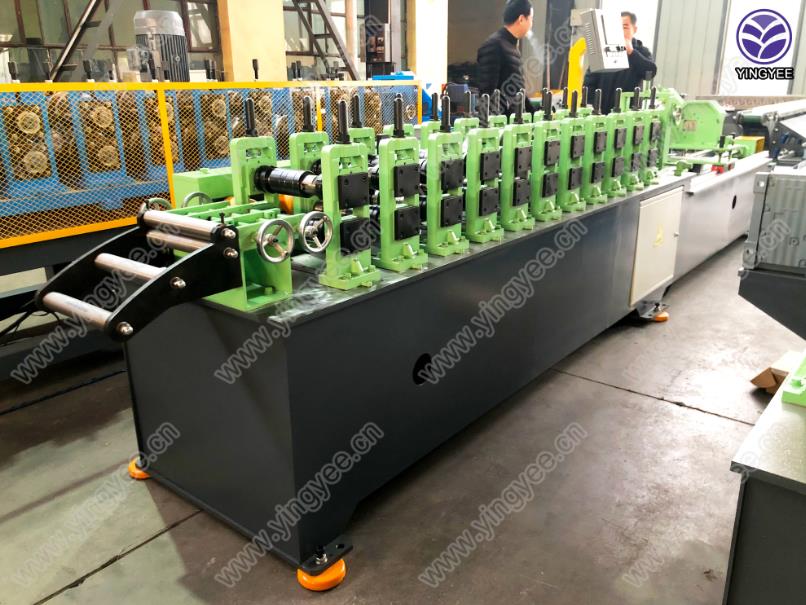

High speed light keel roll forming machine - Image 1

Technical Specifications

Product Overview

High-Speed Production Efficiency

This high-speed light keel roll forming machine is engineered for the efficient and precise production of light gauge steel profiles. It features a robust construction and an advanced control system, ensuring consistent quality and high throughput for construction and interior framing components. Designed for versatility, it can handle various profiles including angles, omega, studs, and tracks.

High-speed light keel roll forming machine overview — A robust roll forming machine engineered for high-speed production of metal profiles.

Performance & Capacity

Production Speed

70 m/min

Max Speed

Material Thickness Range: 0.3 - 0.8 mm

Roll forming machine in operation — Automated cutting and forming systems allow for high-volume manufacturing of light structural components.

Machine Configuration

System Components

Decoiler
Feeding device
11-stand forming main engine
Straightening device
Punching station
Hydraulic cutting
High-speed servo tracking shear
Hydraulic automatic turning and receiving platform

Drive & Control Systems

Inline control system
Integrated gearbox
K-series motor reducer
Dual-motor hydraulic station (three stations)

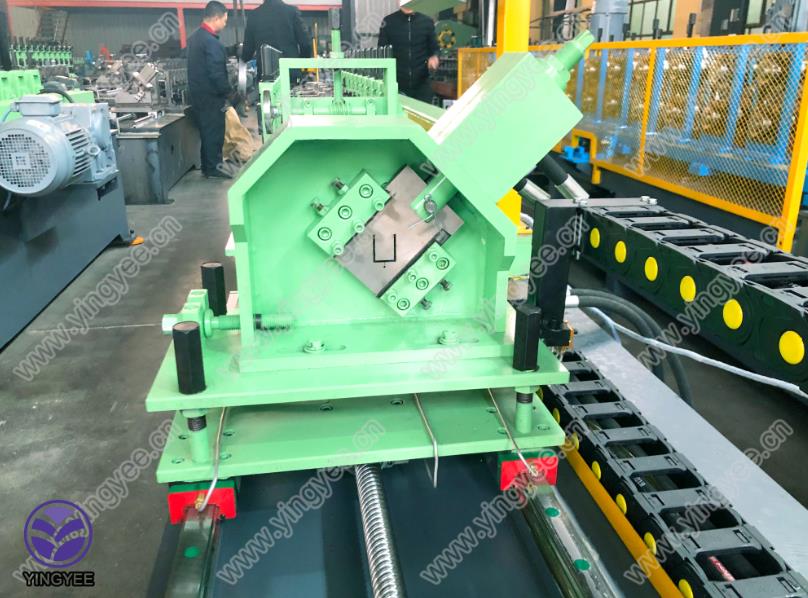

Close up of roll forming machine station — The forming unit features multiple stations designed for gradual shaping and consistent quality.

Applications

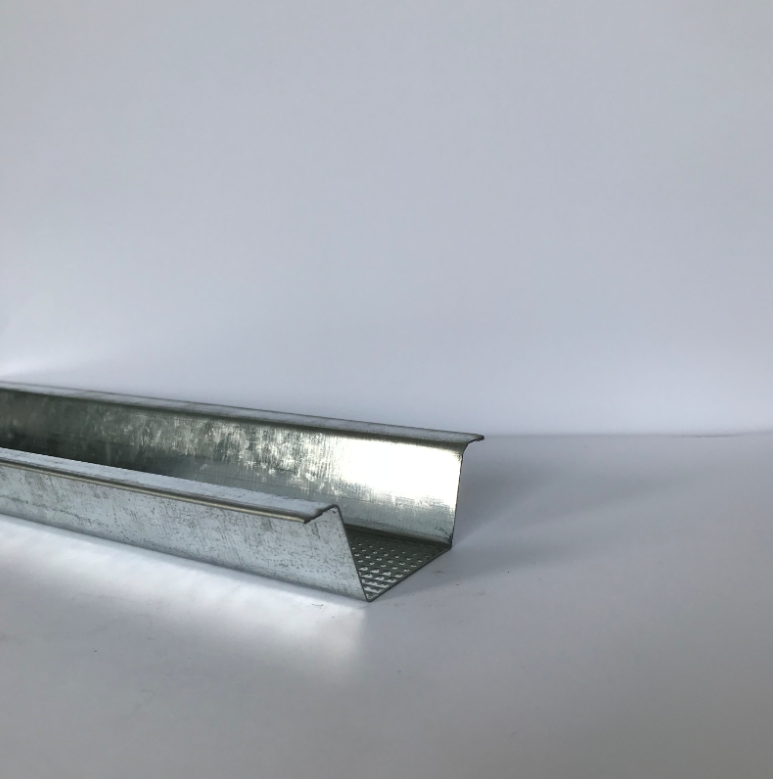

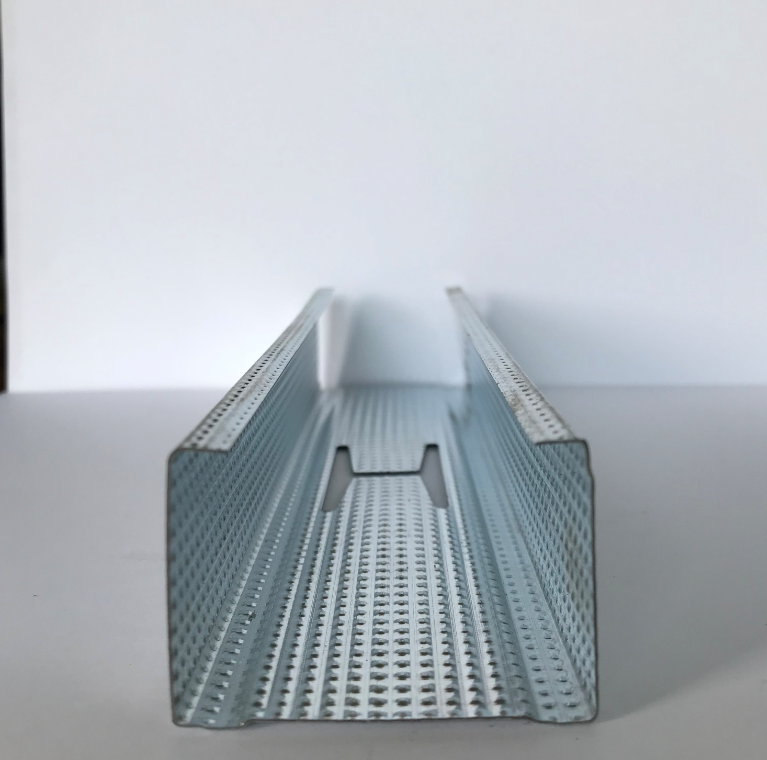

Supported Profiles: AngleOmegaStudTrack38 Main Furring50 Furring

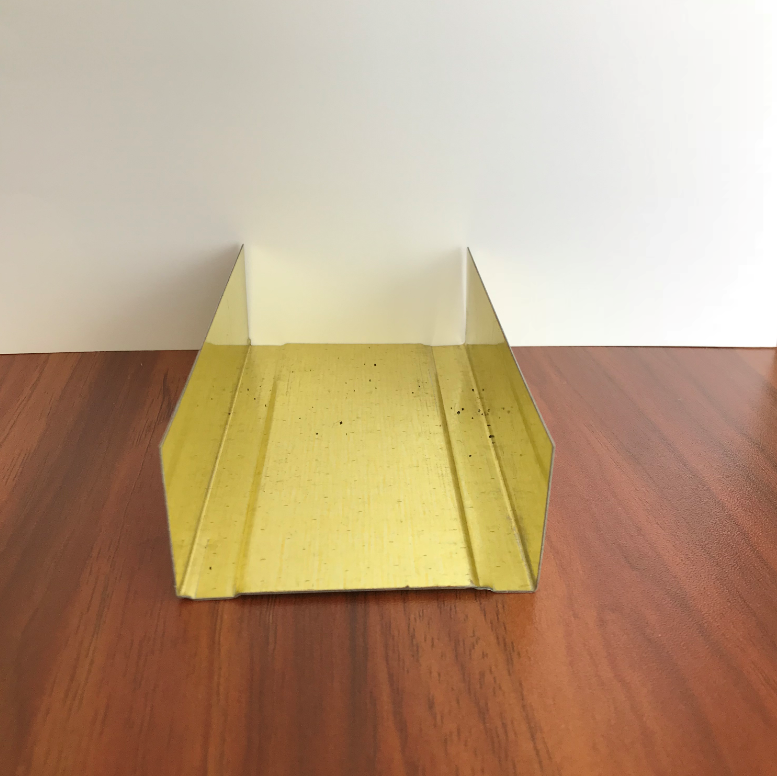

The machine produces precise profiles like this U-shaped channel, ideal for ceiling and wall framing.
