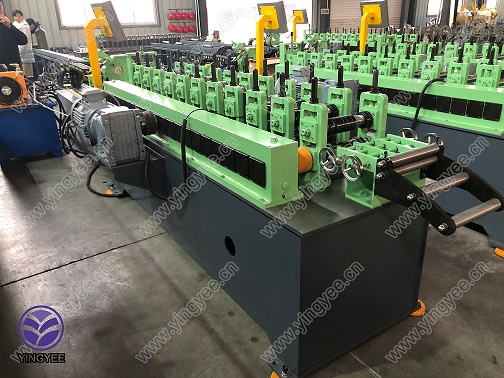

Light Keel Roll Forming Machine
This light keel roll forming machine is designed for the high-speed production of metal keels. It achieves speeds up to 60 meters per minute and is suitable for manufacturing various keel profiles used in construction.
Technical Specifications
Overview
High-Speed Light Keel Production
This advanced roll forming machine is engineered for high-speed production of lightweight steel profiles, achieving speeds up to 70m/min. It is designed to operate with minimal noise while maintaining high precision for construction components like ceiling keels and drywall studs. The system features a robust gear box drive and automatic collection for streamlined, high-volume manufacturing environments.
Performance Metrics
Key Performance Metrics
70 m/min
Production Speed
7.5 KW
Main Power
50 mm
Shaft Diameter
Material Specifications
Compatible Materials
| Parameter | Specification |
|---|---|
| Material Type | Galvanized strip |
| Thickness Range | 0.2 - 1.0 mm |
Technical Components
Component Details
| Part | Material / Type |
|---|---|
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Shaft Material | 45# steel with chromed |
| Drive System | Gear box |
| Roller Stations | 10-14 rollers |
Supported Profiles
- Supported Profiles

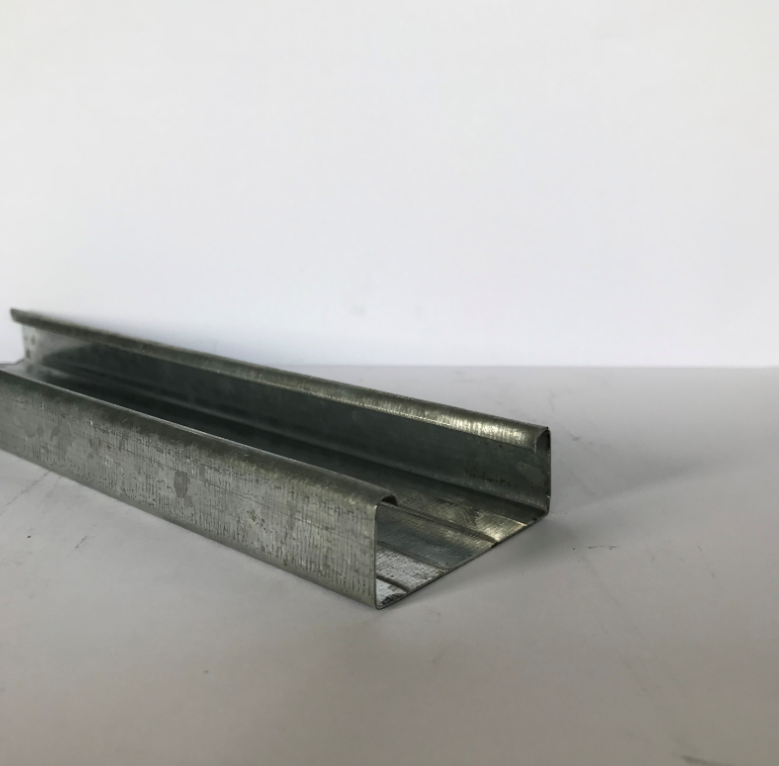

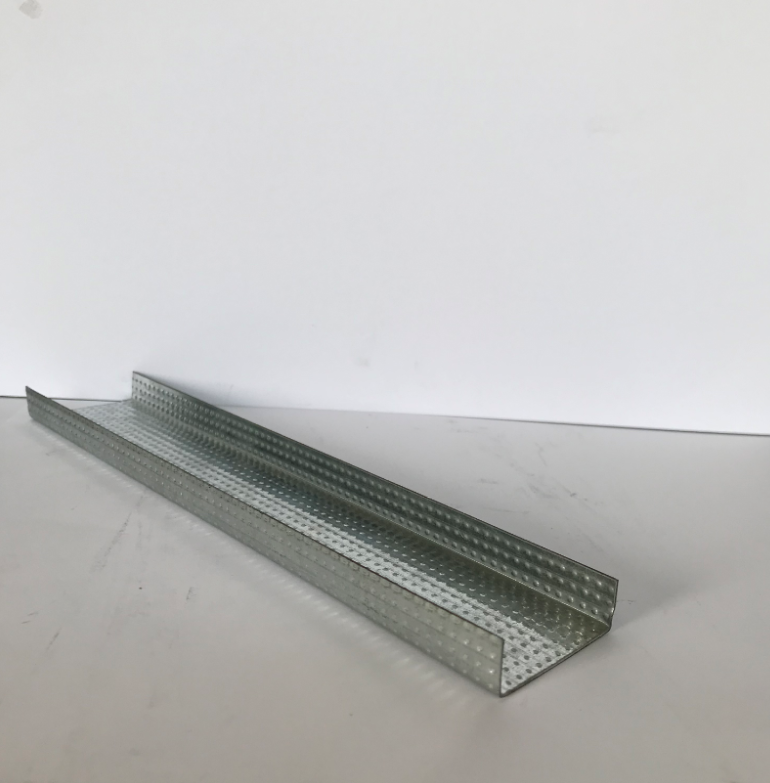

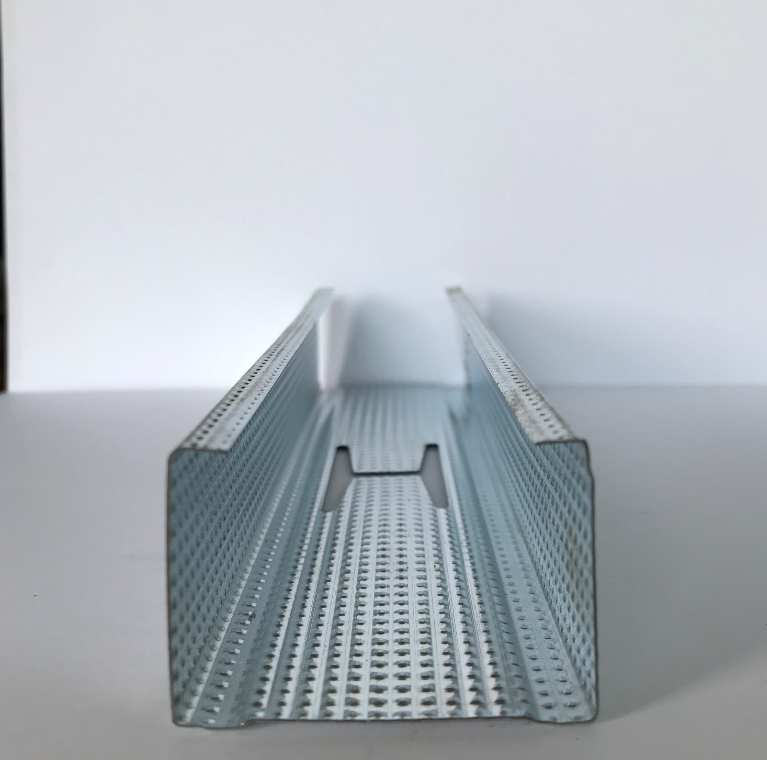

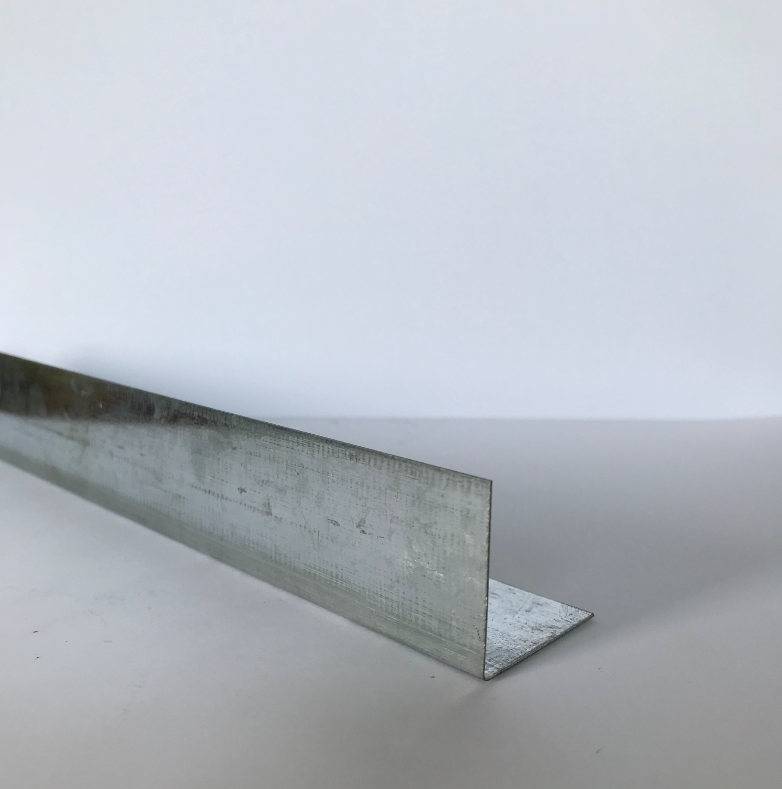

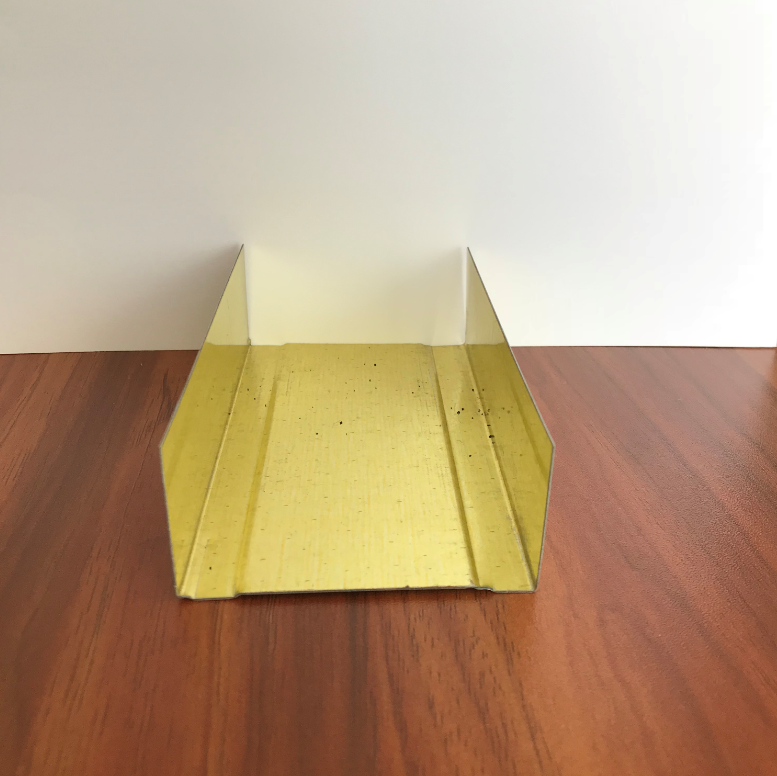

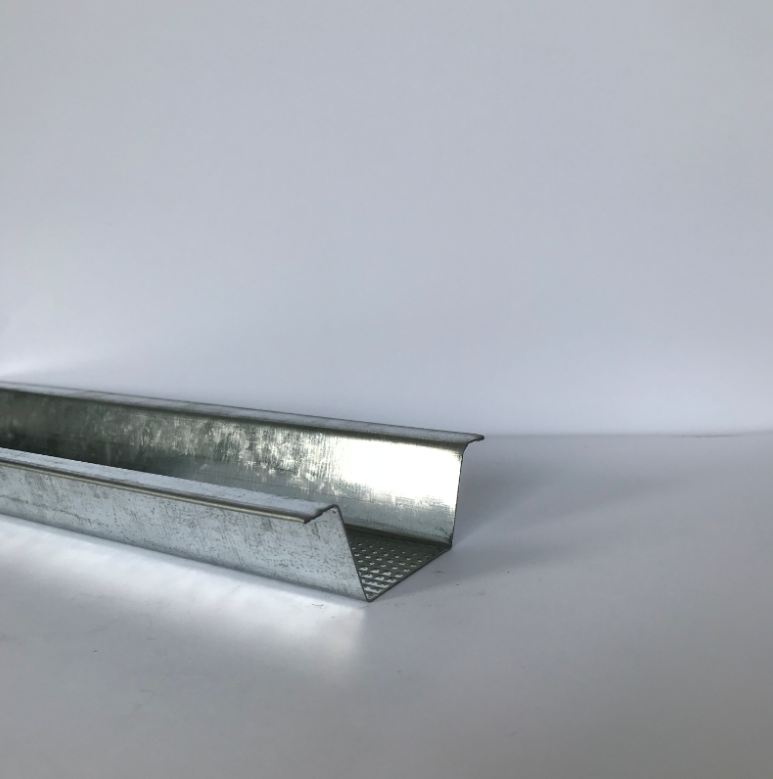

- AngleOmegaStudTrack38 Main Furring50 Furring
Automation Features
Automation Capabilities
- Automatic collection table
- Automatic oil lubrication system
- High-speed servo tracking shear
- Hydraulic automatic tilting receiving table
- Integrated full-line control system
Operational Benefits
Noise Level
Low Noise OperationHigh Efficiency
