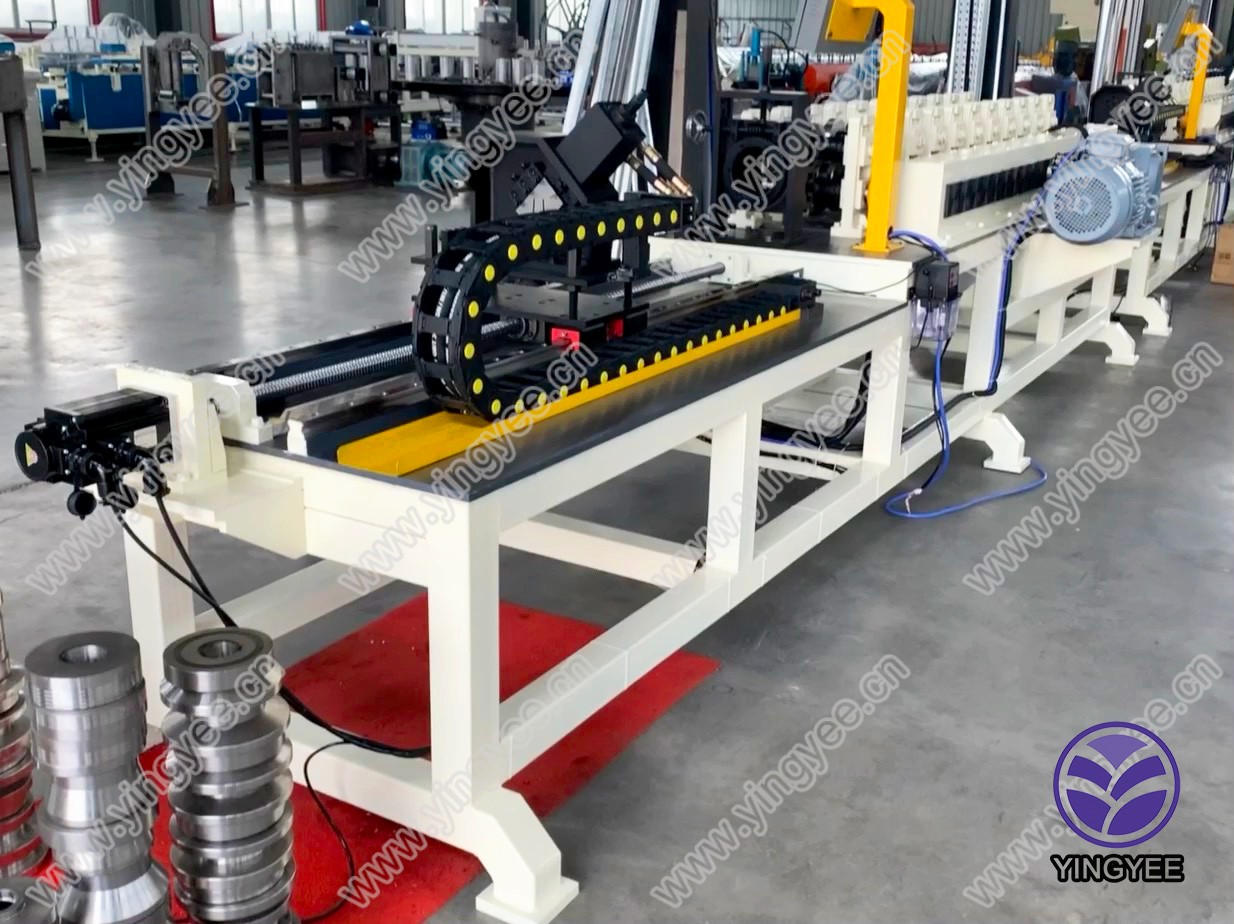

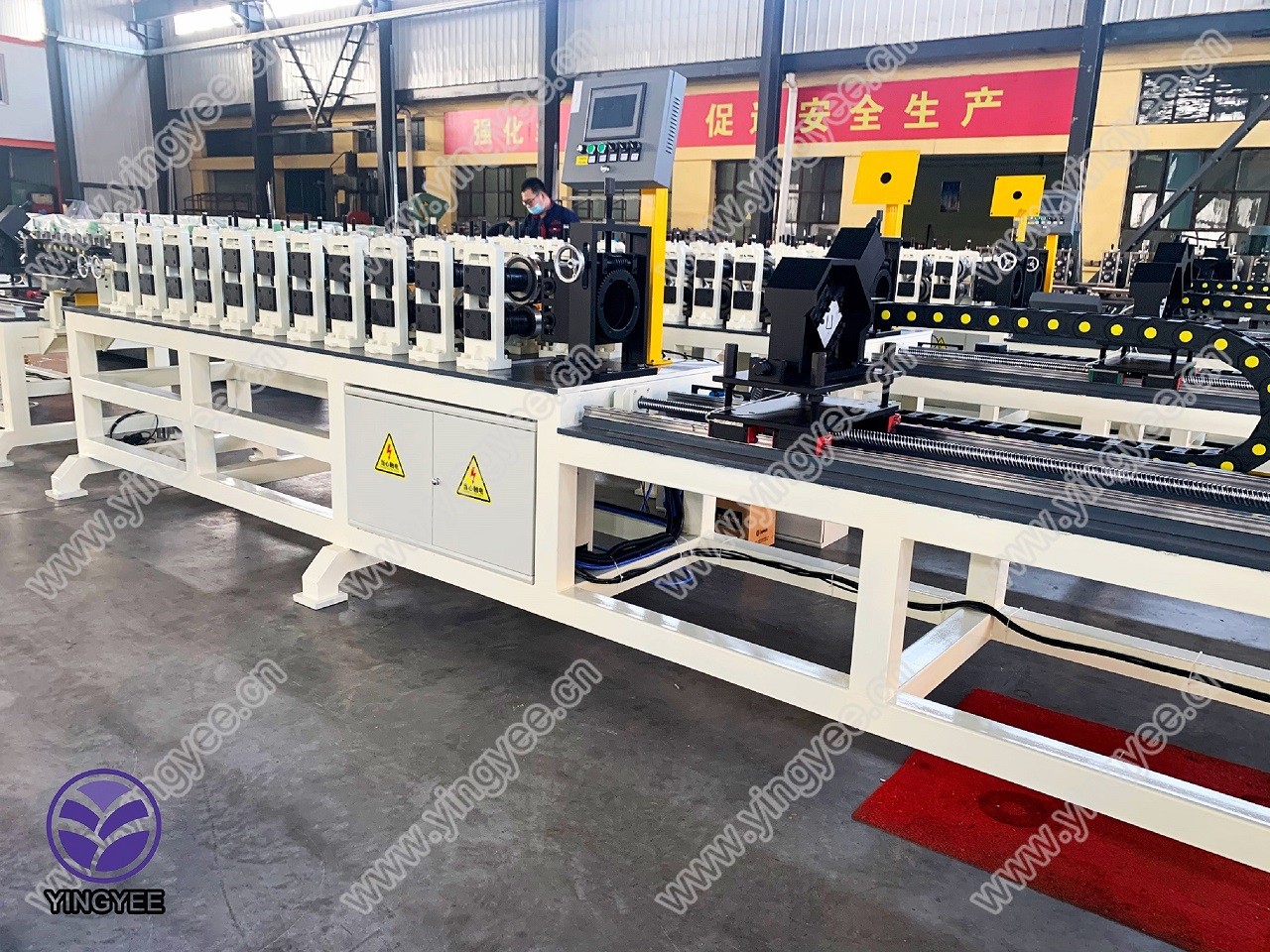

Light Keel Roll Forming Machine, 70 m/min
This light keel roll forming machine produces steel profiles. It achieves speeds up to 70 meters per minute for efficient production.
Technical Specifications
Overview
High-Speed Light Keel Production
This advanced roll forming machine is engineered for the high-speed production of light gauge steel keels, reaching industry-leading speeds of up to 70 meters per minute. Designed for noise-free operation, it provides a stable and efficient solution for manufacturing essential construction profiles such as studs, tracks, and furring channels. The system integrates automated cutting and collection to ensure consistent quality and high productivity for large-scale building projects.
Performance Metrics
Key Performance Metrics
70 m/min
Max Production Speed
7.5 kW
Main Motor Power
1 mm
Max Material Thickness
Technical Specifications
- Compatible Materials
- Galvanized strip
- Material Thickness Range
- 0.2 - 1.0 mm
- Forming Stations
- 10 - 14 rollers
- Drive Type
- Gear box
- Shaft Details
- 45# steel with chromed finish, 50mm diameter
Component Materials
Roller & Cutter Material
CR12 Steel
Automation Features
Automated Systems
- Automatic collection table
- Automatic oil lubrication system
- High-speed servo tracking shear
- Hydraulic automatic turning and receiving platform
- Online control system
Product Profiles
- Supported Keel Profiles

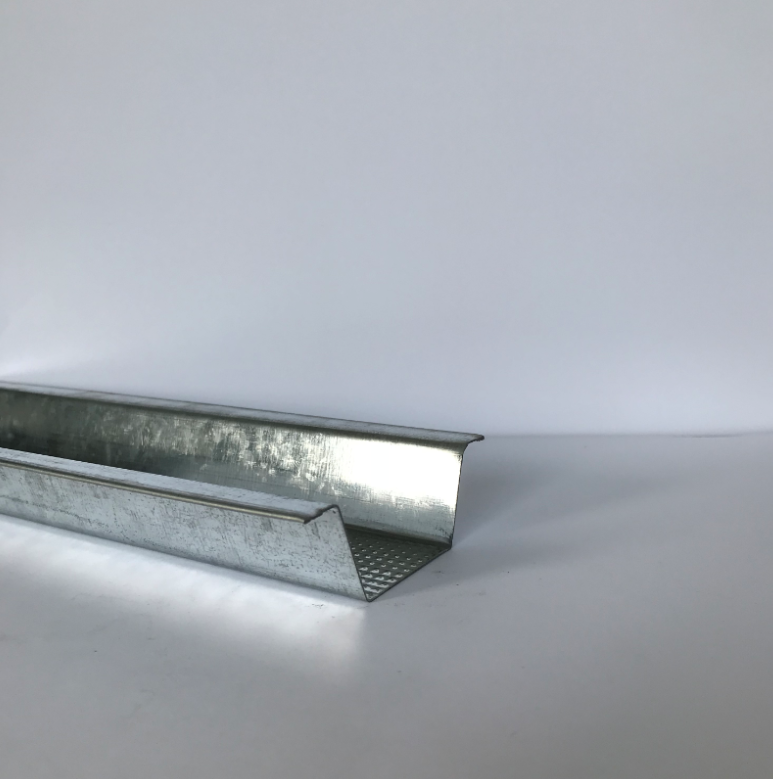

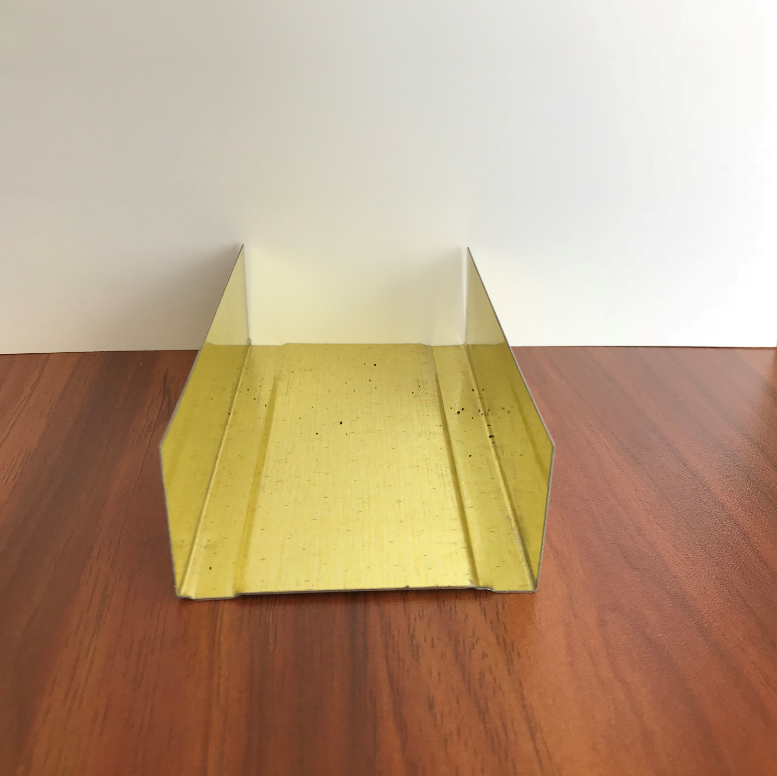

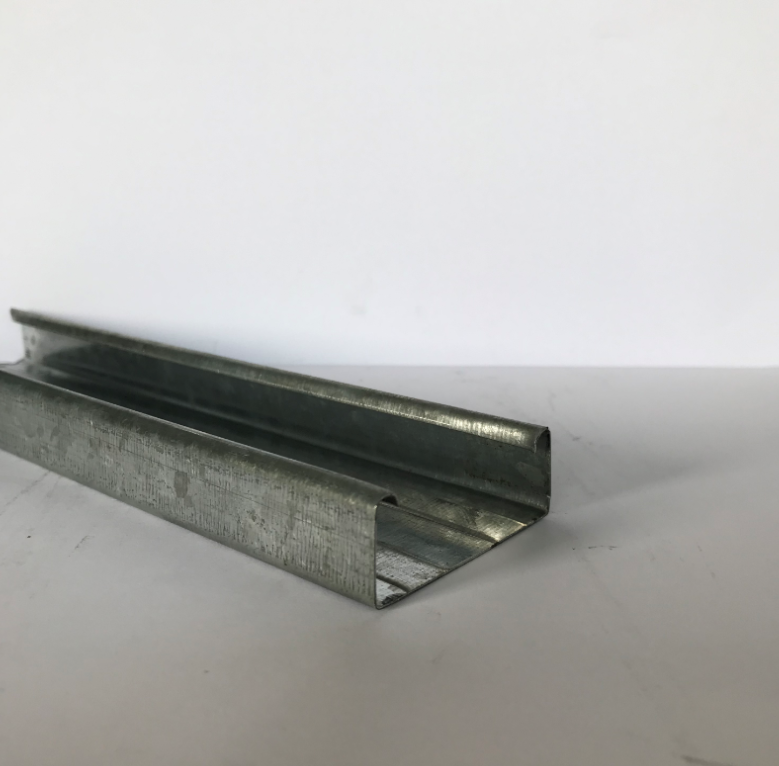

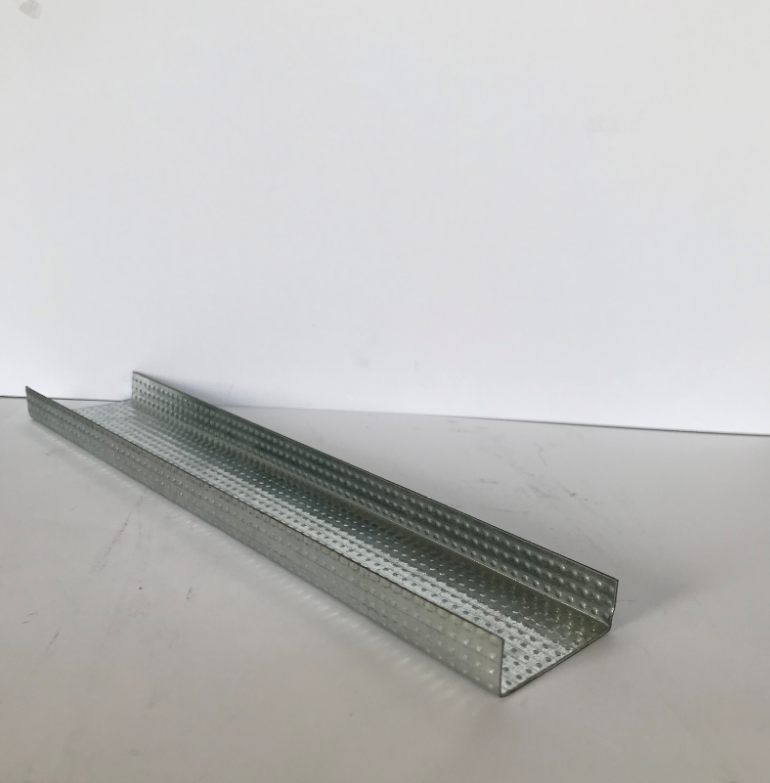

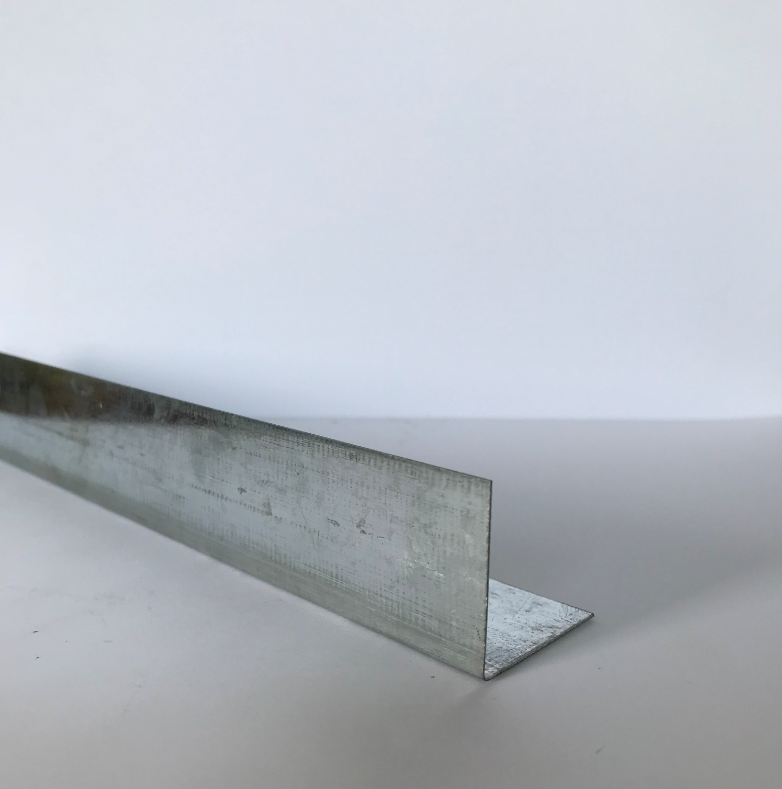

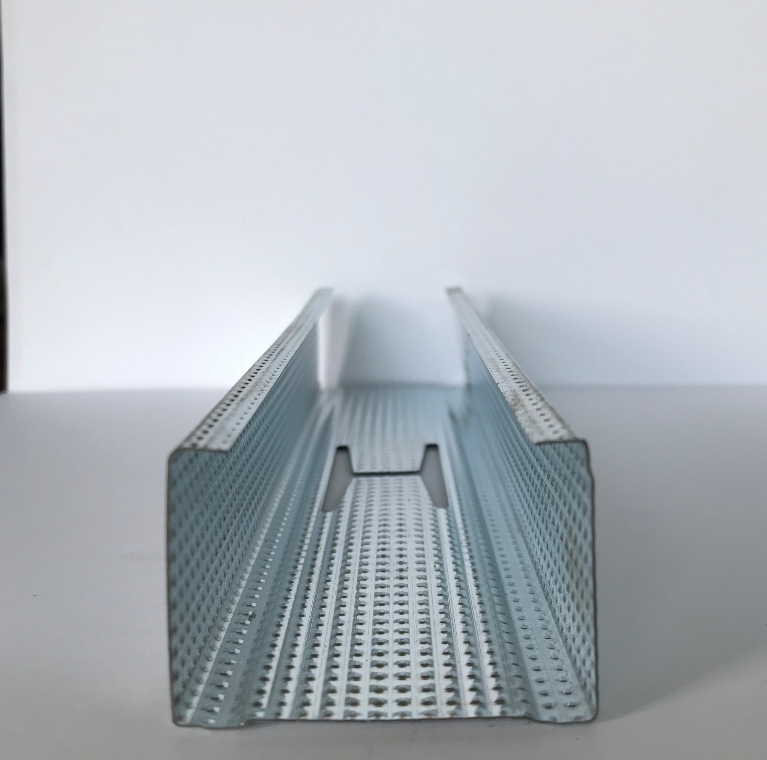

- AngleOmegaStudTrack38 Main Furring50 Furring

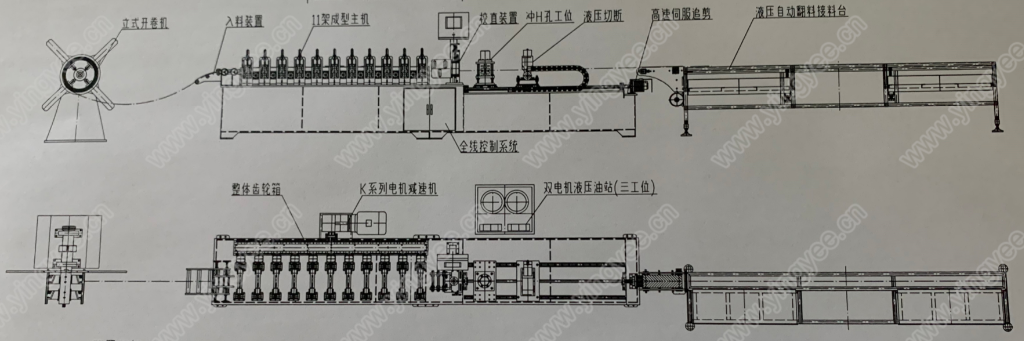

Production Process
Machine Technical Process
- Uncoiler (Vertical)
- Material feeding device
- 11-stand forming main engine
- Straightening device
- Punching station
- Hydraulic cutting
- High-speed servo tracking shear
- Automatic collection
Operational Environment
- Noise Level
- No noise / Low noise operation
