Technical Specifications
Product Overview
High-Speed Light Keel Production

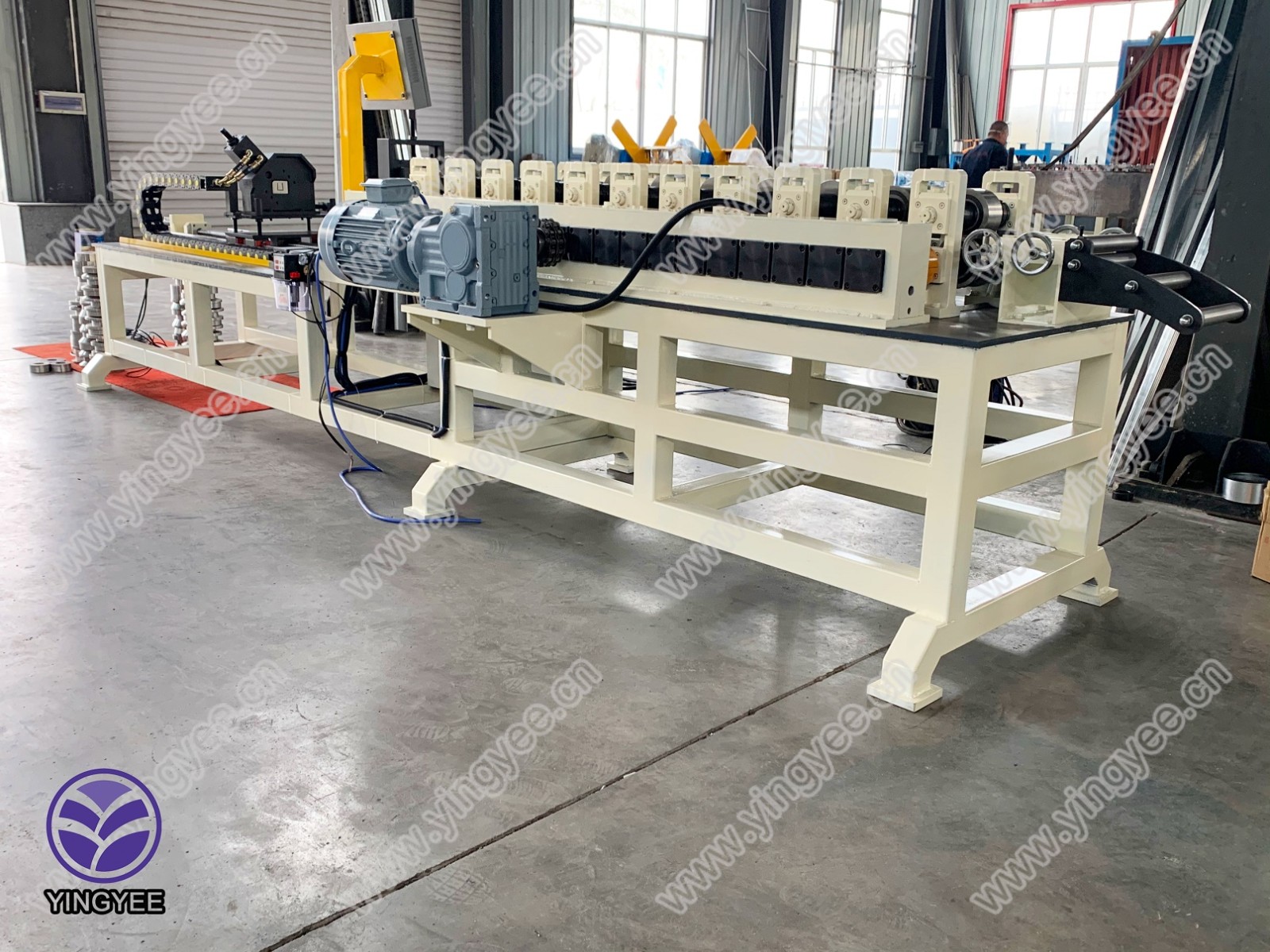

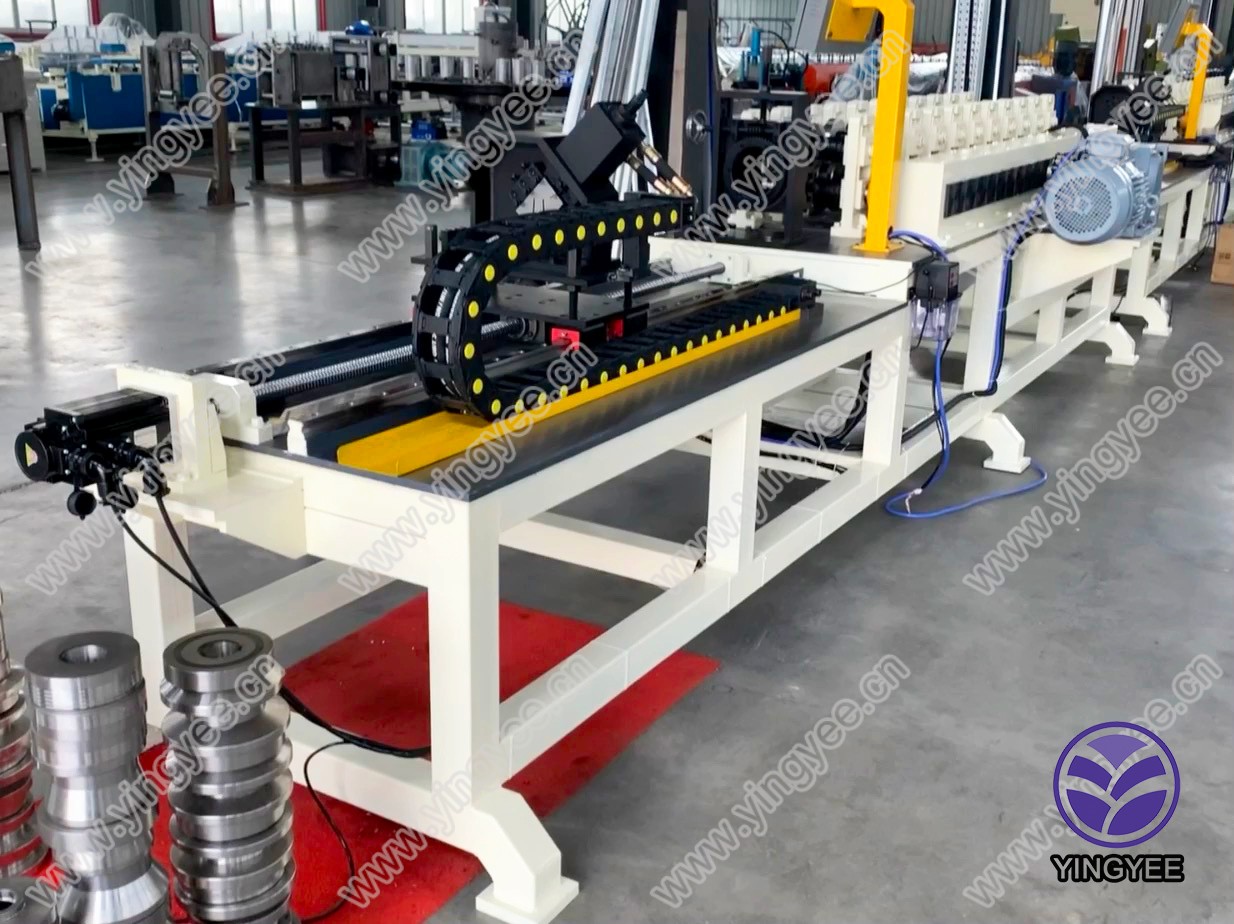

This advanced roll forming machine is engineered for high-efficiency production of light steel keels, reaching industry-leading speeds of up to 70m/min. It is highly versatile, capable of producing a wide range of profiles including angles, omega shapes, studs, tracks, and furring channels. Designed for professional construction manufacturing, it features automated collection and lubrication systems to ensure continuous, high-volume output with minimal downtime.
Performance Highlights
Key Performance Metrics
70 m/min
Production Speed
7.5 KW
Main Power
50 mm
Shaft Diameter
Technical Specifications
Material Compatibility
| Parameter | Requirement |
|---|---|
| Raw Material | Galvanized strip |
| Material Thickness | 0.2 - 1.0 mm |
| Roller Stations | 10 - 14 rollers |
| Drive System | Gear box |
Component Materials
Component Durability
- Roller Material: CR12 Steel
- Cutter Material: CR12 Steel
- Shaft Material: 45# Steel with Chromed Finish
Profile Capabilities
- Supported Profiles

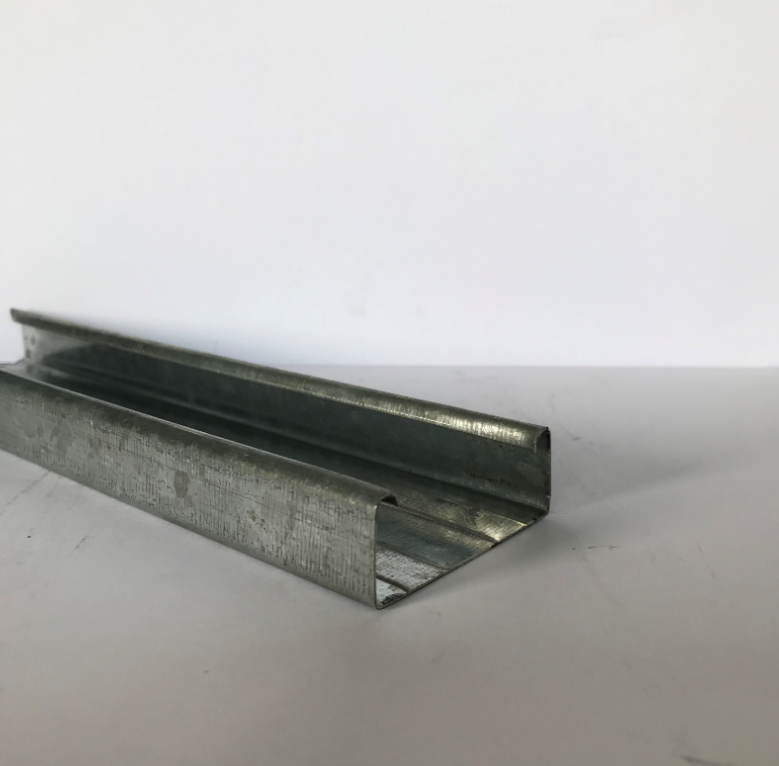

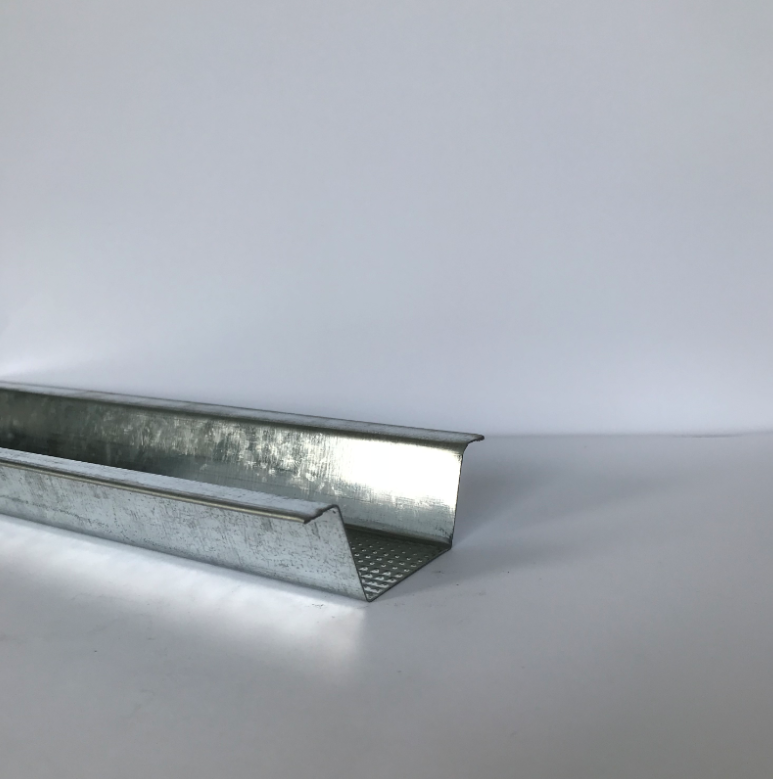

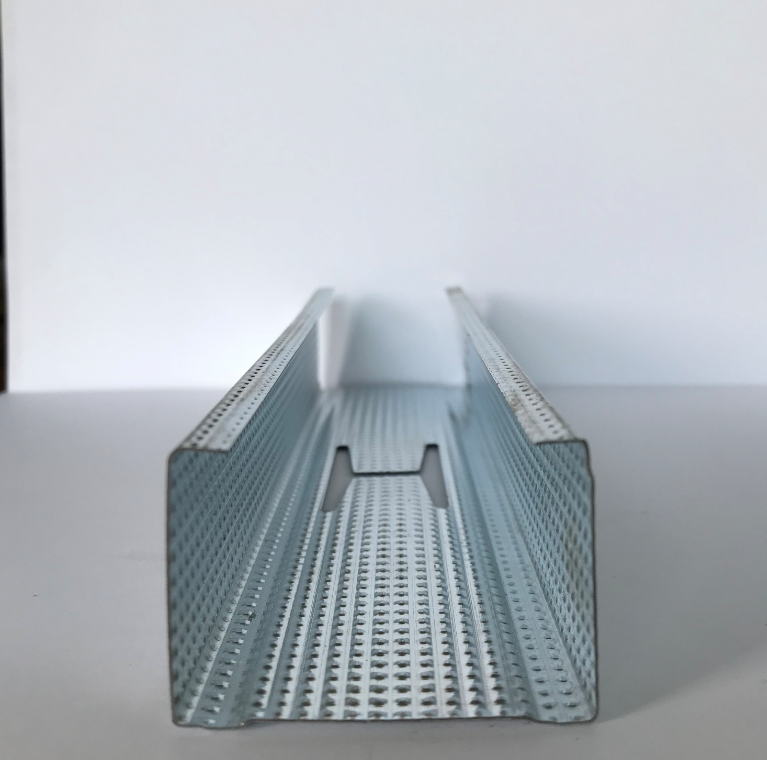

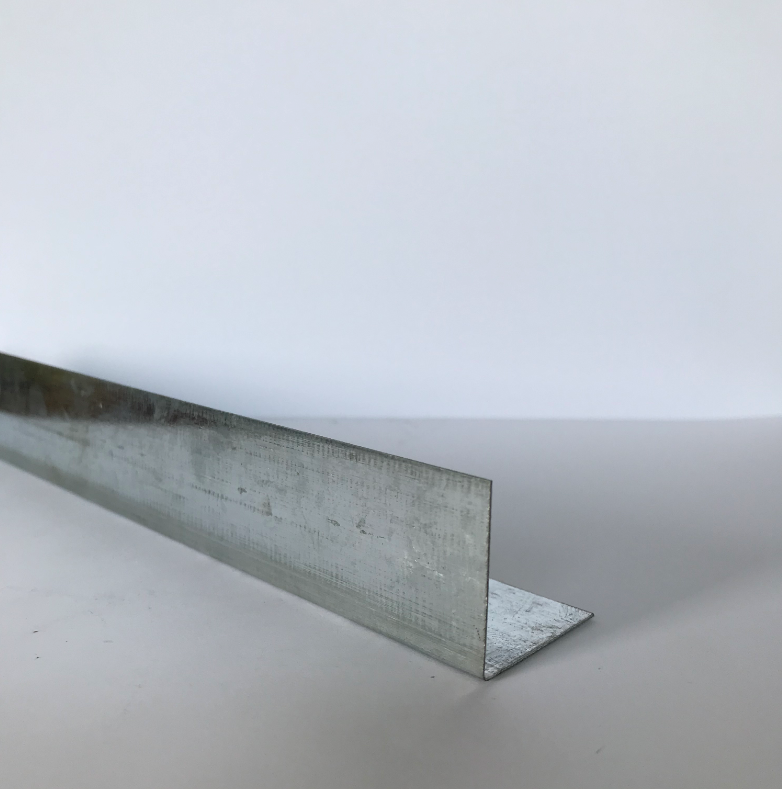

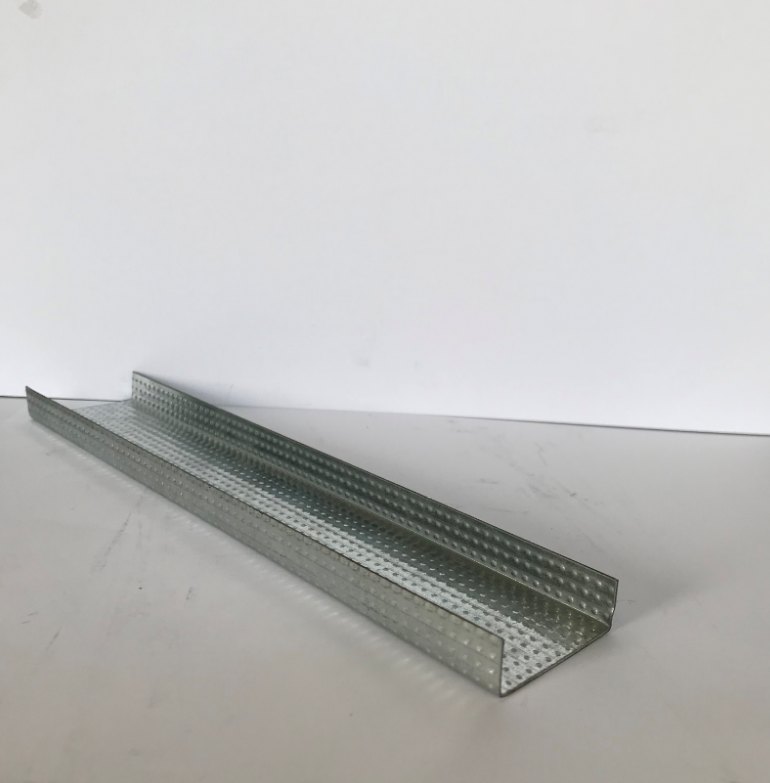

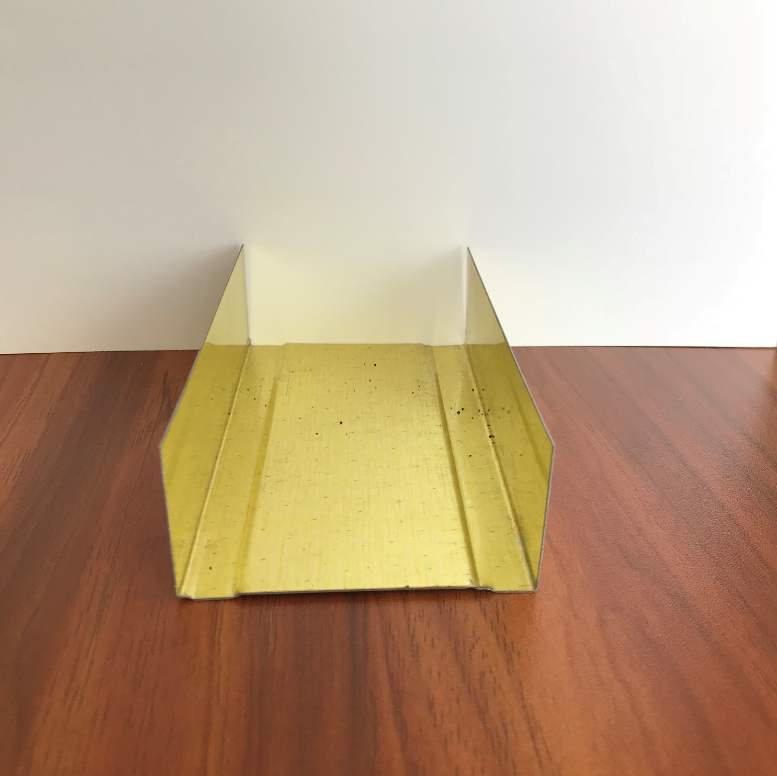

- AngleOmegaStudTrack38 Main Furring50 Furring
Automation & Features
Automation Features
Automatic Collection TableAutomatic Oil LubricationLow Noise OperationServo Tracking ShearHydraulic Punching

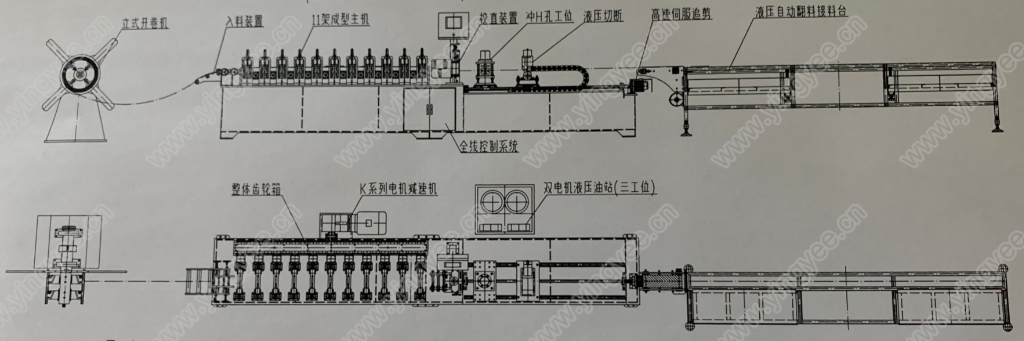

Production Process
Machine Workflow
- Vertical Uncoiler
- Material Feeding Device
- 11-Stand Forming Main Engine
- Straightening Device
- Punching Station
- Hydraulic Cutting
- High-speed Servo Tracking Shear
- Hydraulic Automatic Turnover Receiving Platform
