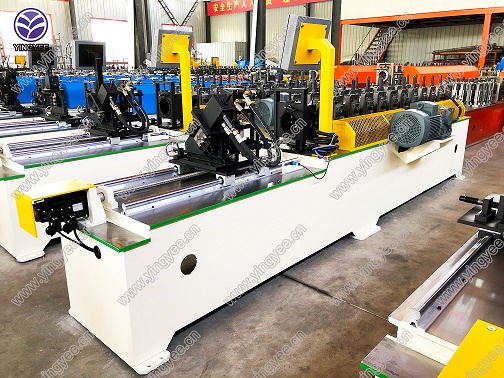

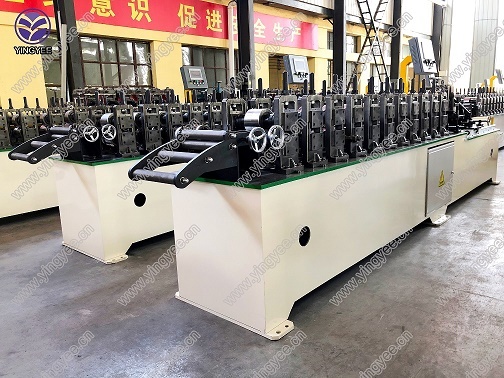

Light Keel Roll Forming Machine
This light keel roll forming machine produces light gauge steel profiles. It operates at a speed of 40 meters per minute, ensuring high throughput.
Technical Specifications
Overview
High-Efficiency Light Keel Production
This light keel roll forming machine is engineered for high-speed, automated production of light gauge steel profiles, achieving an impressive output speed of up to 45 meters per minute. Designed for versatility, it supports the manufacturing of various structural components including L-angles, Omega channels, CU channels, and furring profiles. Built for precision and durability, this system is an ideal solution for high-volume construction and interior finishing applications.
Performance Metrics
Production Speed
45 m/min
Standard Speed
25 m/min
Punching Speed
Technical Specifications
Supported Profiles

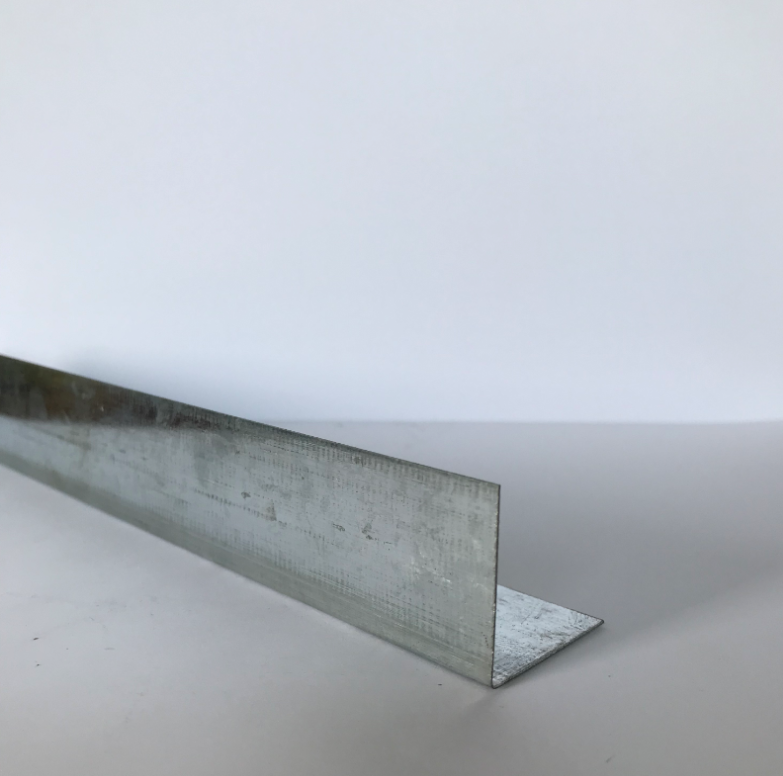

- L angle

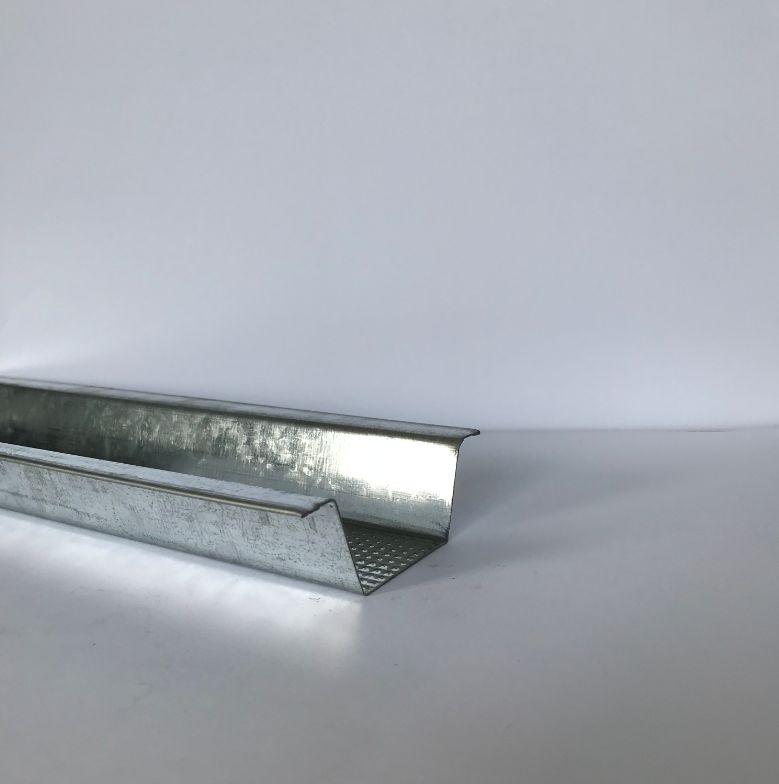

- Omega

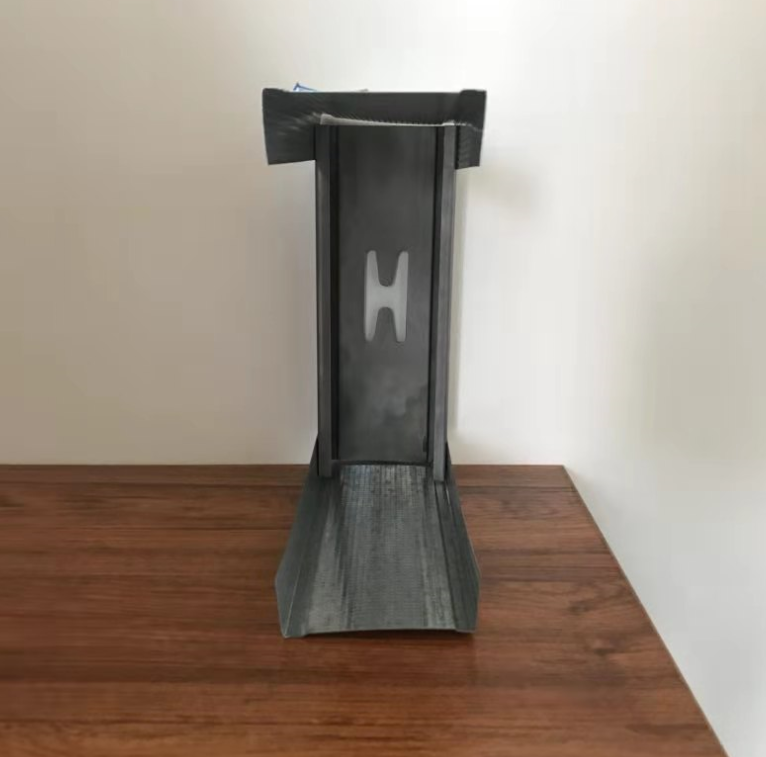

- CU channel
- 38 furring

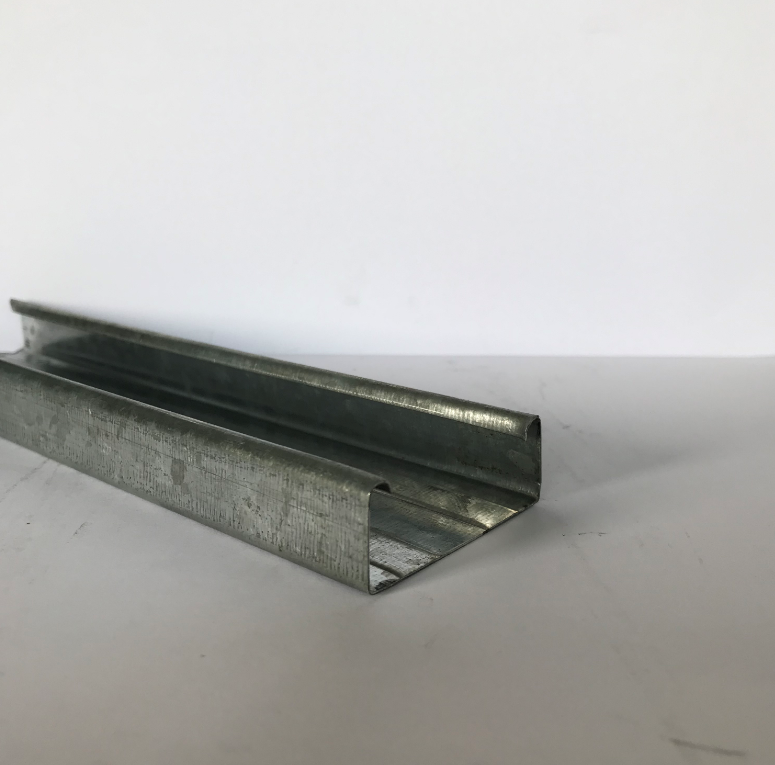

- 50 furring
- Compatible Materials
- Galvanized strip
Machine Components

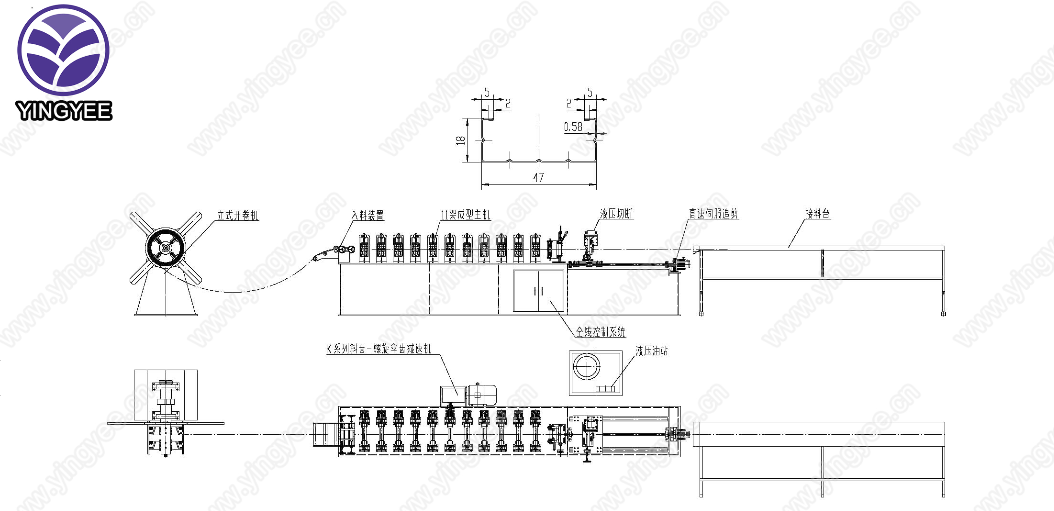

System Components
- Decoiler
- Feeding device
- Multi-stand roll forming unit
- Hydraulic cutting system
- Run-out table
