Light Keel Roll Forming Machine, 40 m/min

This light keel roll forming machine produces light gauge steel profiles. It operates at a speed of 40 meters per minute.

Request a Quote Download PDFPDF

light keel roll forming machine 40m/min - Image 1

Technical Specifications

Overview

High-Efficiency Light Keel Production

This high-speed light keel roll forming machine is engineered for the efficient, large-scale production of light gauge steel profiles used in modern construction. Capable of operating at speeds up to 40 meters per minute, it ensures high throughput for manufacturing essential components like ceiling keels, drywall studs, and furring channels. The system features a robust, durable construction and integrated control systems, providing consistent profile shaping and reliable performance in demanding industrial environments.

Technical Specifications

Forming Speed

45 m/min

Standard Speed

25 m/min

Punching Speed

Compatible Materials: Galvanized strip

Capabilities

Supported Profiles

L angle
Omega
CU channel
38 main furring
50 furring

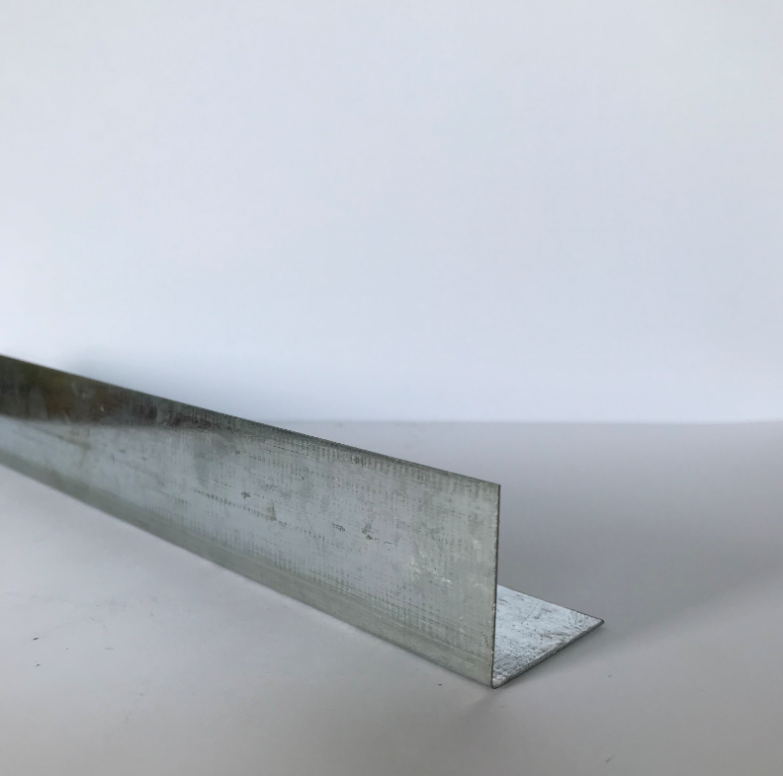

Example of L-angle profile produced by the machine.

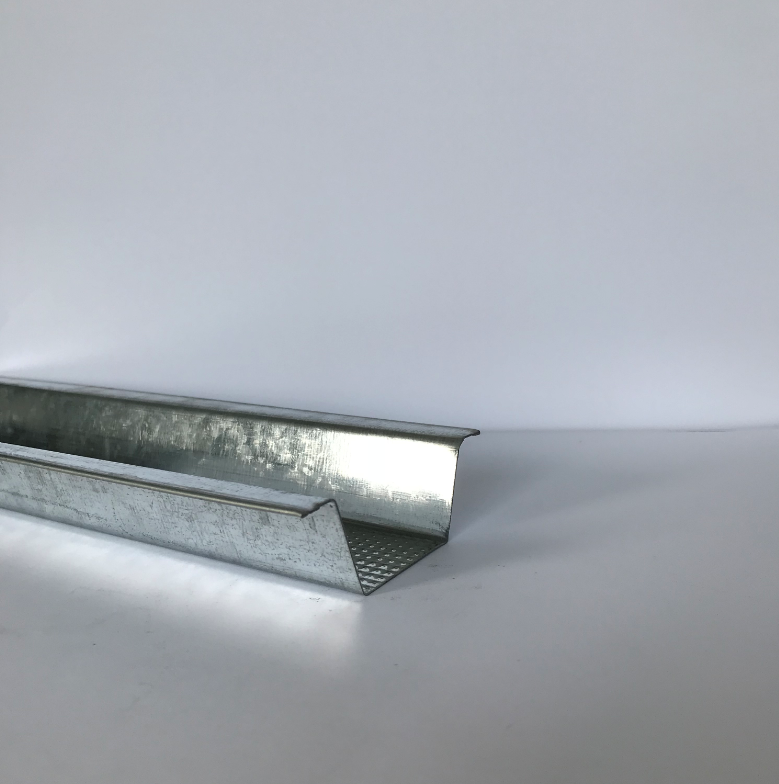

Example of Omega profile produced by the machine.

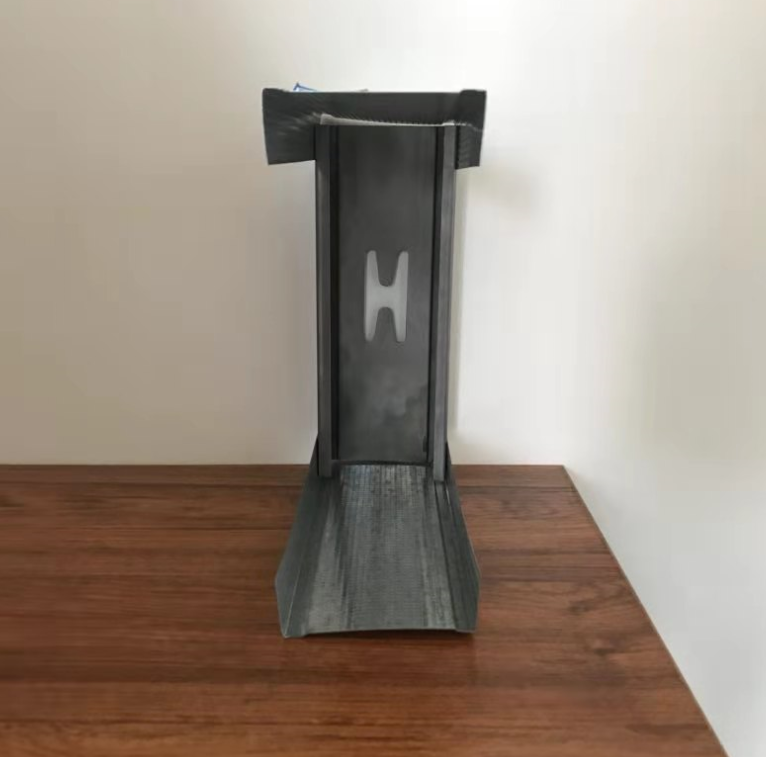

Example of CU channel profile produced by the machine.

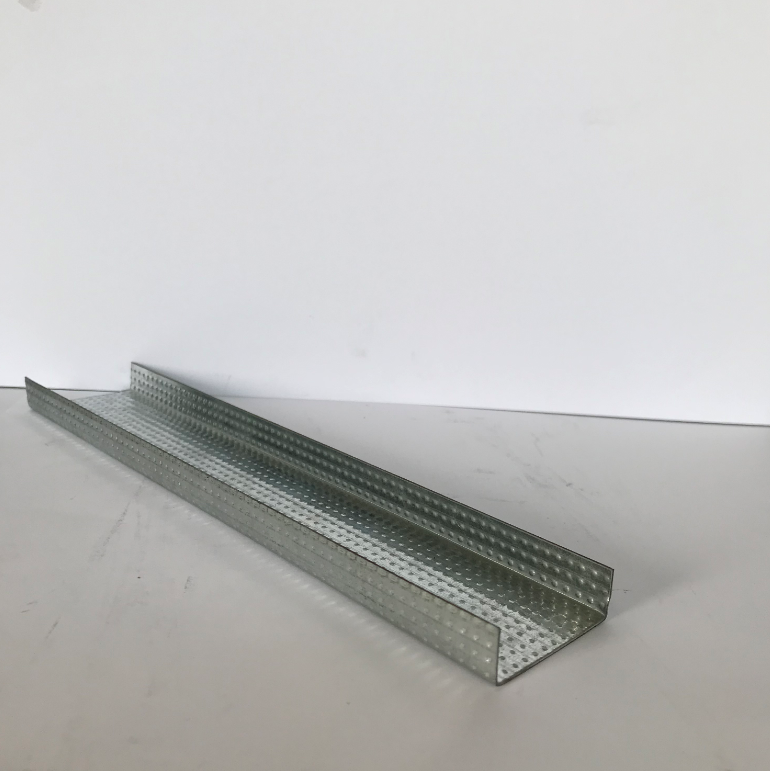

Example of 38 furring channel produced by the machine.

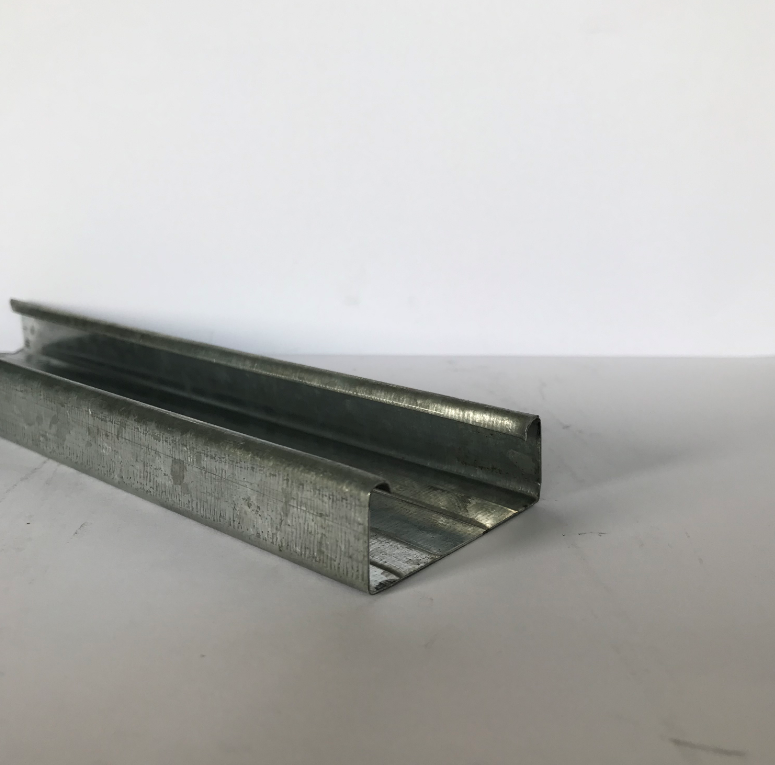

Example of 50 furring channel produced by the machine.

System Components

Technical Process Flow

Stage	Description
Uncoiling	Feeding raw material
Forming	Multi-stand roll forming unit
Cutting	Hydraulic cutting system
Output	Collection table

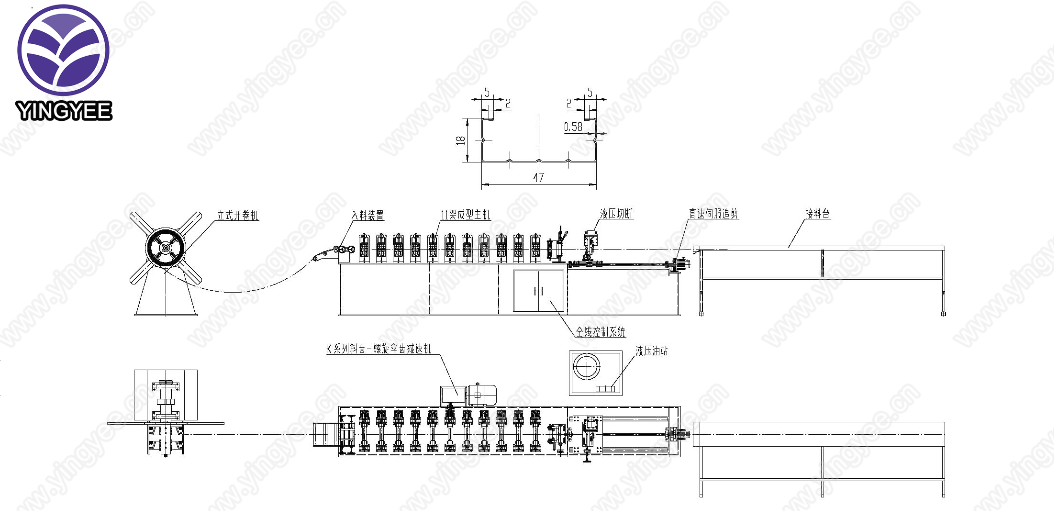

Technical process diagram of the roll forming machine — Overview of the technical process and machine components.
