Light Keel Roll Forming Machine
This machine produces light gauge steel keels at a rate of up to 40 meters per minute. It is engineered for precision and consistency in forming keels for various construction and industrial applications.
Technical Specifications
Overview
High-Speed Light Keel Production
This high-speed roll forming machine is engineered for the efficient production of light gauge steel keels, reaching speeds of up to 45m/min. It is a versatile solution capable of manufacturing a wide range of profiles including L angles, omega shapes, CU channels, and furring strips. Designed for high-volume manufacturing, the system ensures precision forming with minimal material waste and robust reliability for continuous operation.
Performance
Production Speed
45 m/min
Standard Speed
25 m/min
Punching Speed
Capability
- Supported Profiles

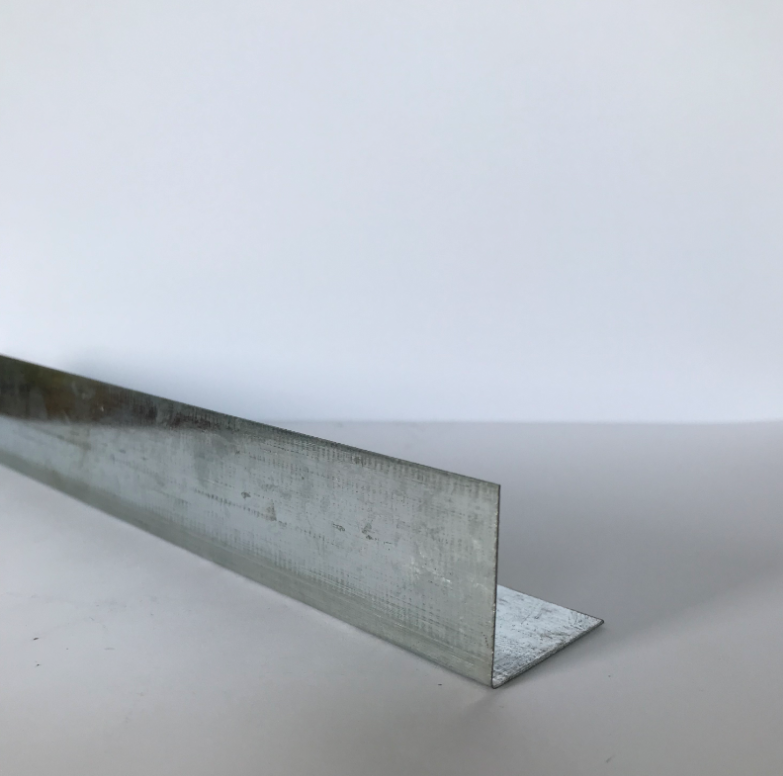

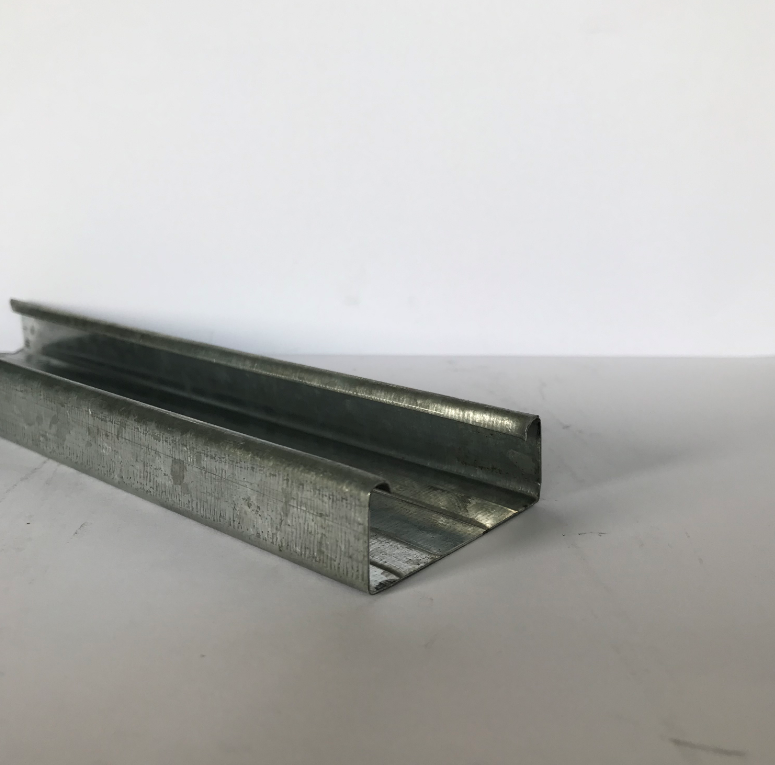

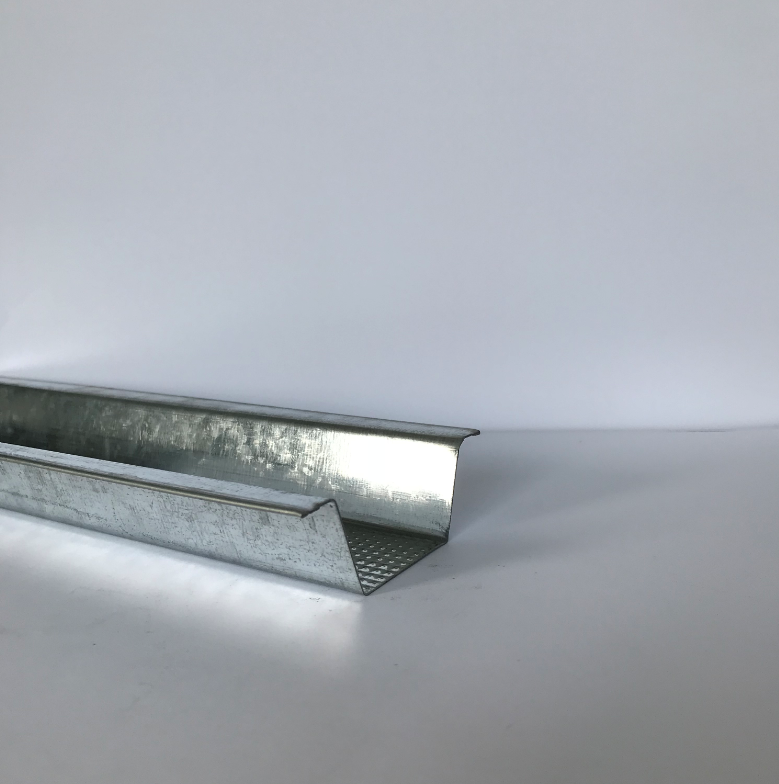

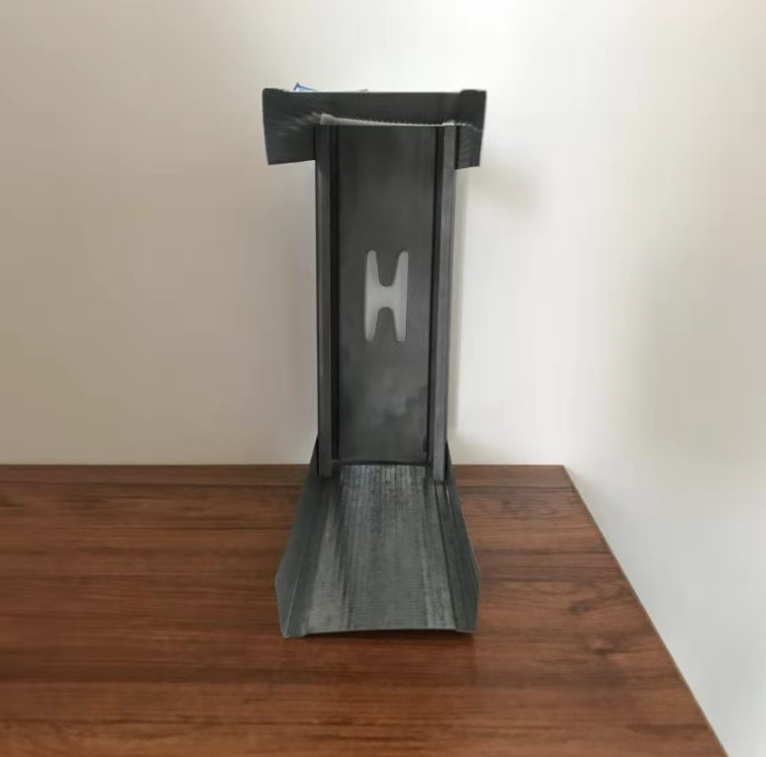

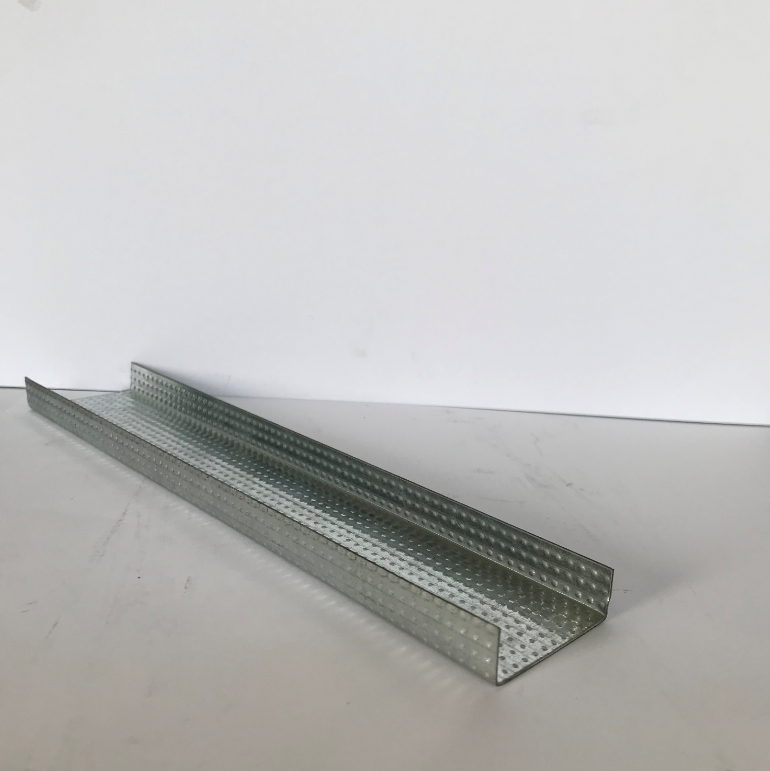

- L AngleOmegaCU Channel38 Main Furring50 Furring
Technical Process

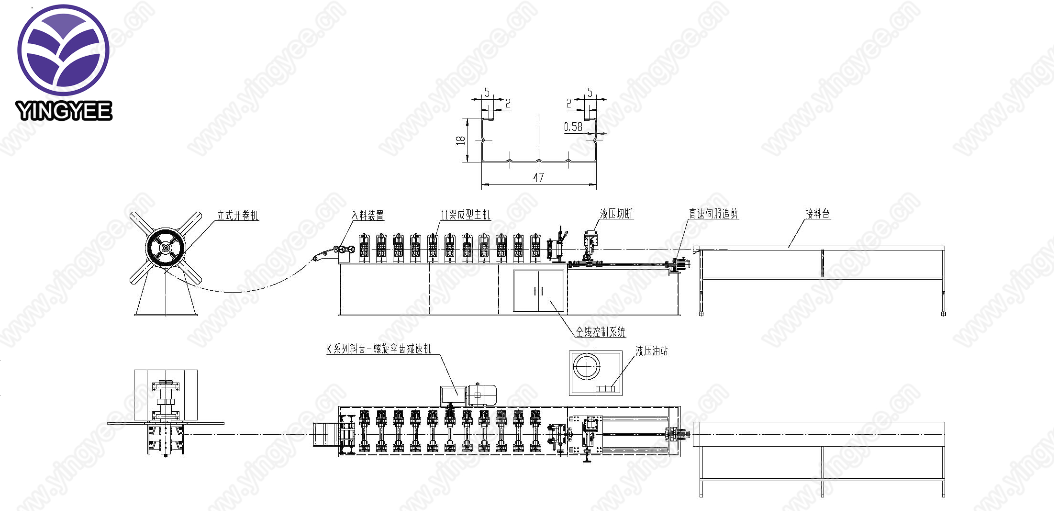

System Components
- Vertical Uncoiler
- Feeding Device
- Multi-stand Roll Forming Main Unit
- Hydraulic Cutting Unit
- Servo Tracking Device
- Discharge Table
- Integrated Control System
- Hydraulic Oil Station
Process Features

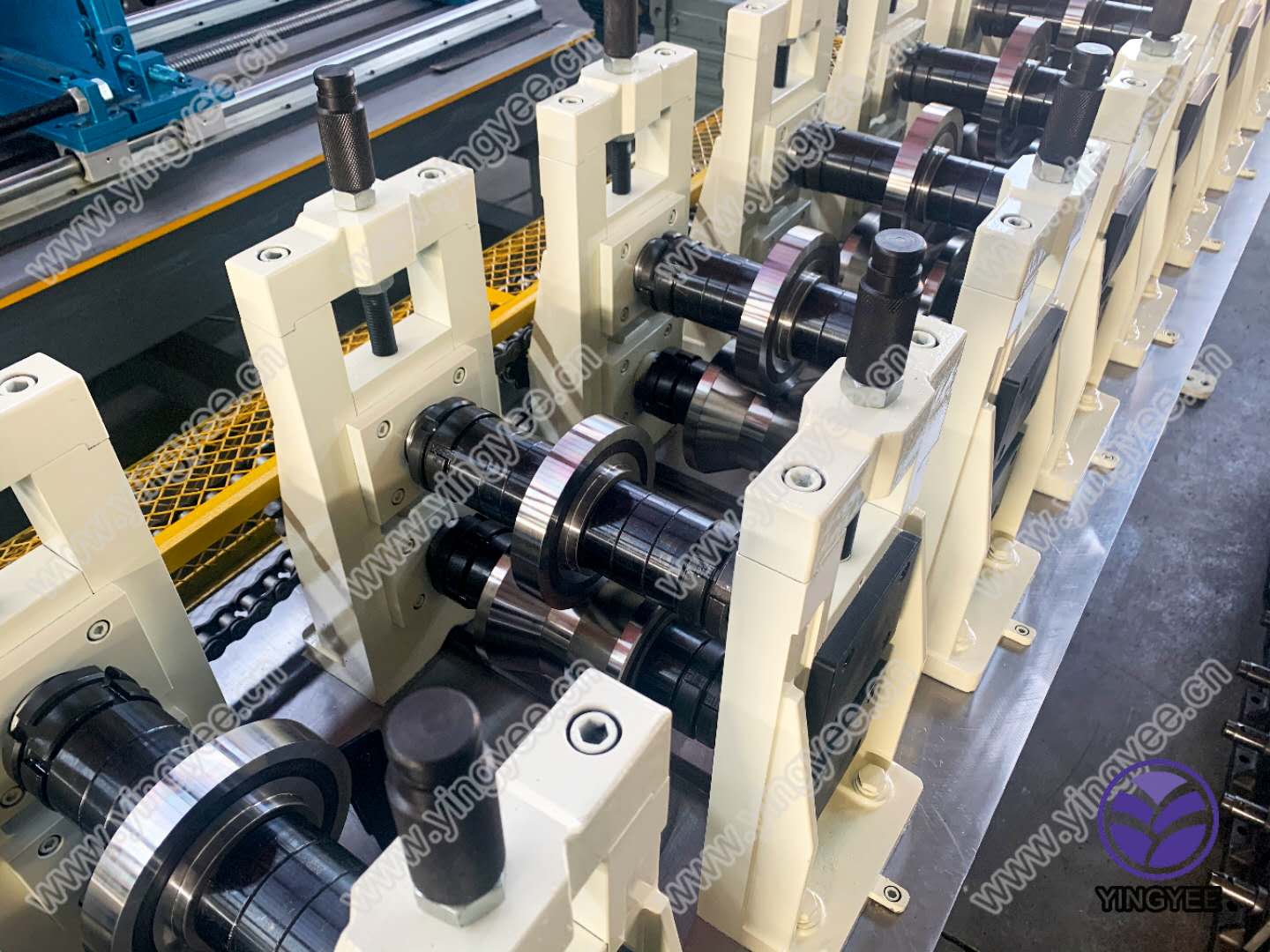

- Precision-engineered rollers for gradual shaping
- Adjustable guides for accurate material alignment

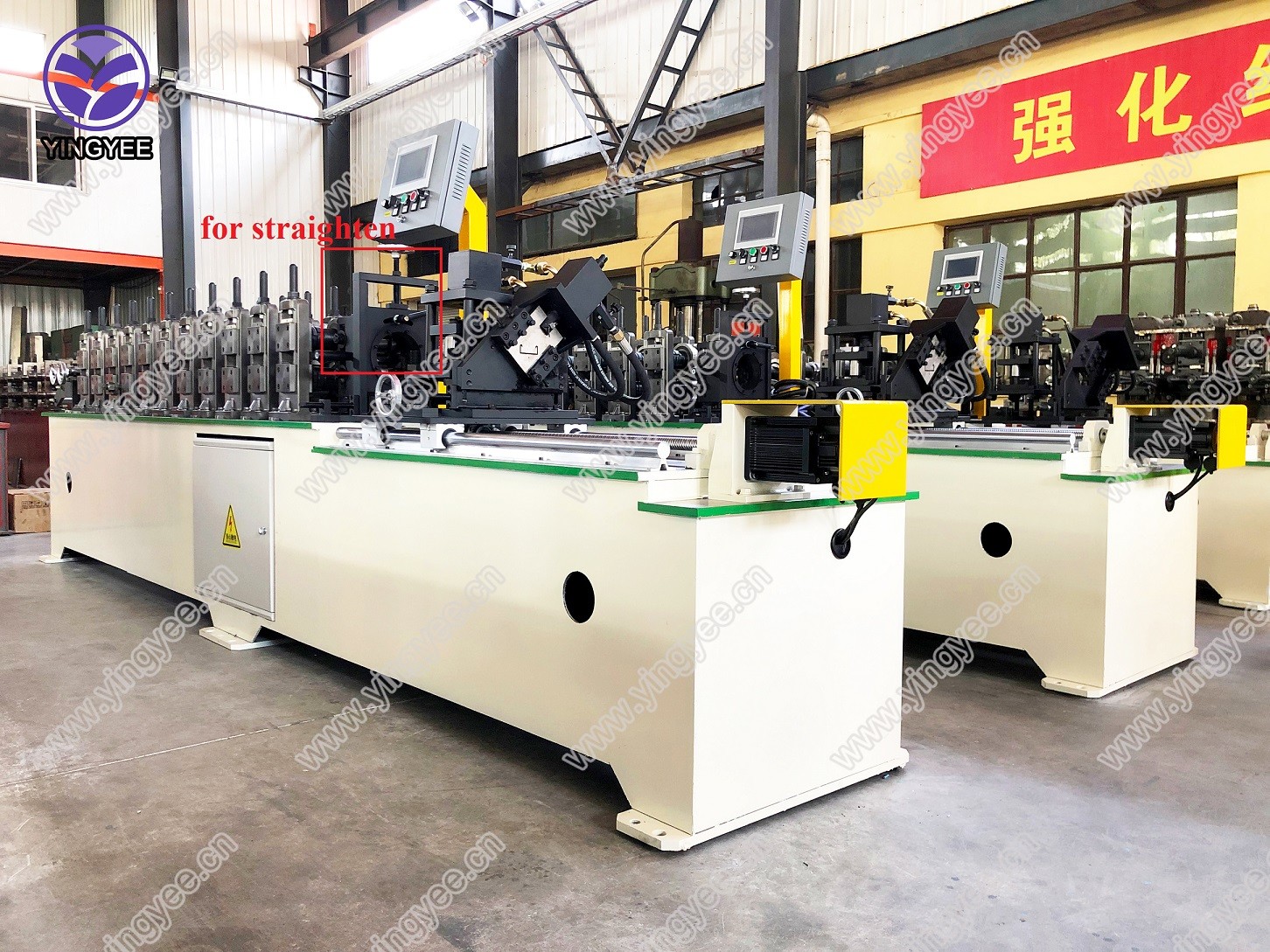

- Advanced straightening mechanisms
- Simultaneous linear output mechanisms
Construction
Build Quality
Robust ConstructionHigh-Volume OptimizedPrecision FormingLow Maintenance
Applications
- Primary Applications
- Ceiling and wall systems, light gauge steel framing components for construction.
