LED Voltage Indicator Light with Integrated Meter
This LED voltage indicator light features an integrated meter for real-time voltage monitoring. Its compact design allows for easy installation in various electrical panels and equipment.
Technical Specifications
Product Overview
High-Performance LED Voltage Indicator
The AD22-22DSA series integrates a high-brightness LED light source with a digital voltage meter, offering a modern replacement for traditional incandescent and neon lamps. Designed for reliability and longevity, these indicators feature a compact, lightweight build and a polycarbonate lampshade for superior anti-surge performance. They are ideal for real-time monitoring in electrical power, telecommunications, and industrial machinery applications.
Technical Performance
Key Technical Metrics
2.5 kV
Working Frequency Voltage
2 MΩ
Insulated Resistance
20 %
Voltage Wave Tolerance
Safety & Design Features
- Polycarbonate lampshade with high intensity
- Anti-surge performance
- Bolt-type connector for safer installation
- Integrated digital display for real-time monitoring
Compliance
CE
Physical Specifications

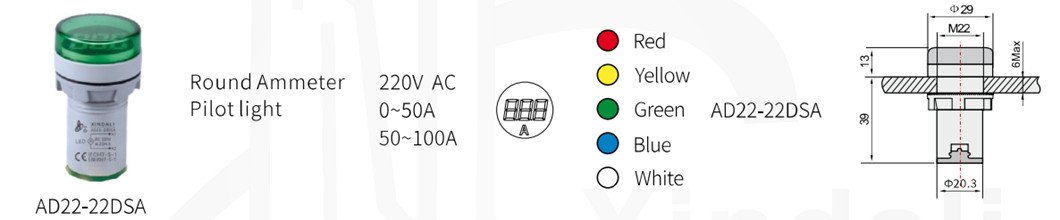

Mounting Dimensions
| Parameter | Dimension |
|---|---|
| Installation Diameter | 22mm (M22) |
| Top Diameter | Φ29mm |
| Bottom Diameter | Φ20.3mm |
| Max Panel Thickness | 6mm |
| Depth (Surface to Bottom) | 39mm |
Operational Details
Application Sectors
- Electrical Power Systems
- Telecommunications Equipment
- Machine Tools
- Watercraft & Marine
- Textile & Printing Machinery
- Mine Machinery
- Available LED Colors
- RedYellowGreenBlueWhite
- Current Measurement Range
- 0-50A or 50-100A (Ammeter variants)
- Voltage Compatibility
- AC/DC 6V ~ 220V, AC 220V, AC 380V
