Mini Voltage Indicator with LED Display
This mini voltage indicator displays voltage levels in electrical systems. The LED provides a clear visual representation of the voltage status.
Technical Specifications
Overview
Compact LED Voltage Monitoring

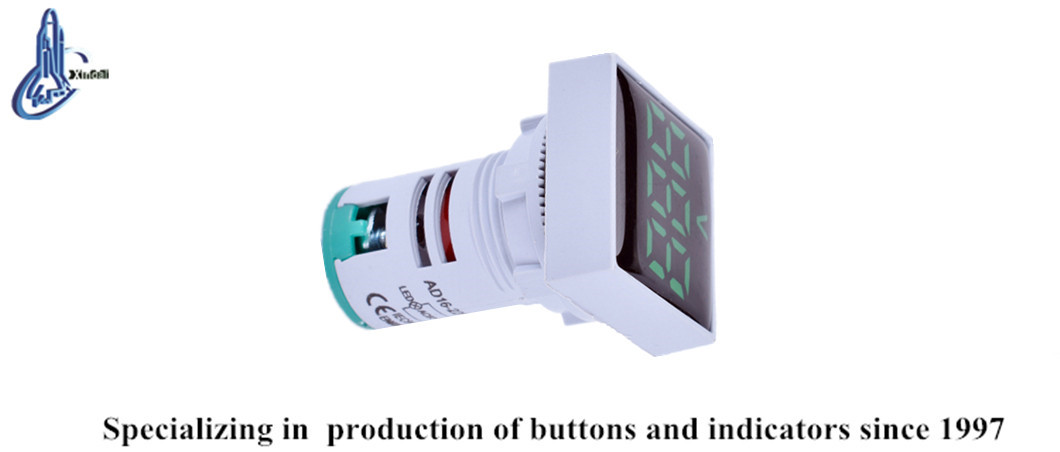

The AD22-22FSV is a mini LED voltage display meter designed for real-time monitoring in space-constrained electrical environments. Featuring a high-brightness LED chip as its light source, it offers long service life, low power consumption, and superior reliability compared to traditional incandescent lamps. Its polycarbonate lens provides high intensity and anti-surge performance, making it an ideal choice for power supplies, control panels, and industrial machinery.
Technical Specifications
Operating Voltage Range
50 V
Min AC Voltage
500 V
Max AC Voltage
- Voltage of Working Frequency
- 2.5kV (AC valid value), 1min
- Insulated Resistance
- ≥2MΩ
- Allowed Voltage Wave
- 20 %

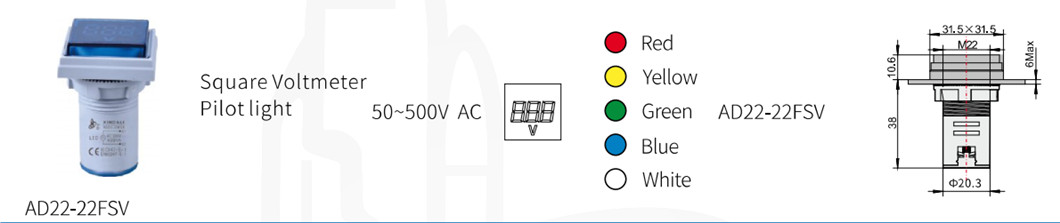

Physical Dimensions
Detailed Dimensions
| Dimension Type | Measurement |
|---|---|
| Front Panel Size | 31.5 x 31.5 mm |
| Front Height | 10.6 mm |
| Body Length | 38 mm |
| Bottom Diameter | 20.3 mm |
- Mounting Diameter
- 22 mm
Design & Materials
Available LED Colors
RedYellowGreenBlueWhite
Material Features
- Polycarbonate lampshade with high intension
- Anti-surge performance
- Bolt-type connector for safety
- High-brightness LED shining chip
Applications
- Target Industries
- Electrical PowerTelecommunicationMachine ToolWatercraftTextilePrintingMine Machinery
Compliance
- Compliance Standards
- IECCE
