LED Dimmer Switch with Rotary Knob
This LED dimmer switch features a rotary knob and push-button for on/off control. It is designed for smooth, flicker-free dimming of compatible LED lighting.
Technical Specifications
Overview
Advanced LED Dimming Solution
The BRT-D205 is a high-performance rotary dimmer switch designed specifically for flicker-free LED lighting control. It features a unique two-in-one push button and rotary knob design, allowing for intuitive on/off operation and precise brightness adjustment. Built with flame-resistant ABS-V0 material and supporting both single-pole and three-way wiring, it offers a versatile and safe solution for modern residential and commercial lighting installations.
Key Performance
Key Performance Metrics
150 W
Max Power Load
5 W
Min Power Load
86
Series Design
Technical Features
Dimming Technology
- Leading edge dimming technology
- Adaptive adjustment for wide LED variety
- Memory function (retains last brightness setting)

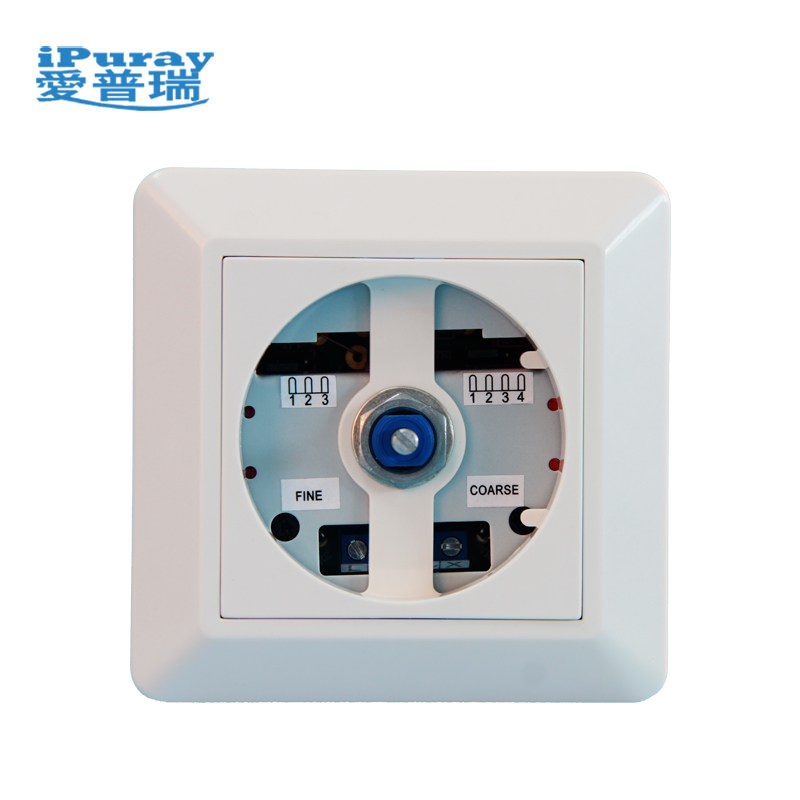

- Fine and Coarse adjustment screws to eliminate flickering
- Large dimming range
Power Load Optimization
Jumper Cap Load Settings
| Power Range | Application |
|---|---|
| 5W - 30W | Low Load Optimization |
| 30W - 60W | Standard Load Optimization |
| 60W - 90W | Medium Load Optimization |
| 90W - 120W | High Load Optimization |
| 120W - 150W | Maximum Load Optimization |
Installation & Build
Material
ABS-V0 Flame ResistanceHigh Quality Build

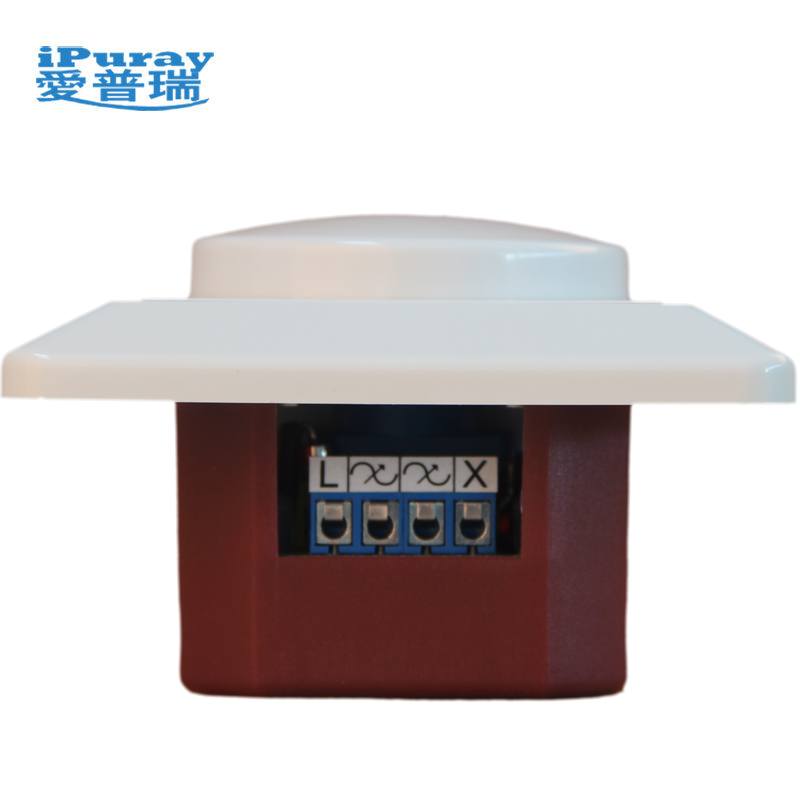

- Wiring Options
- Single-poleThree-wayMulti-location
- Mounting Compatibility
- Standard European Junction Box
Compliance
- Certifications
- CEATC
