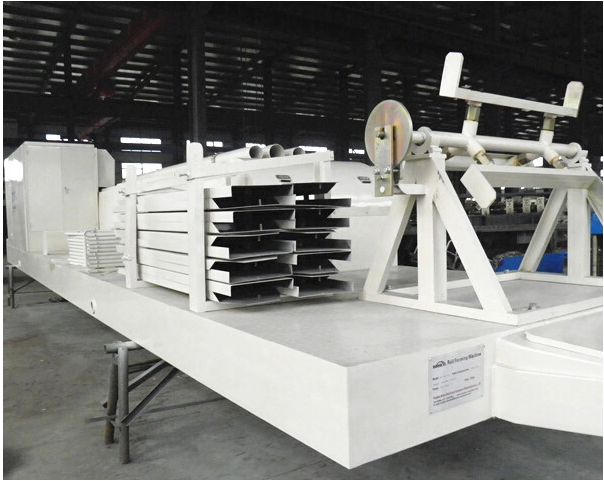

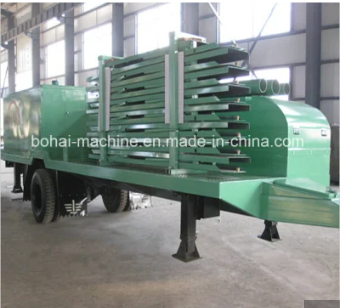

K Span Arch Roll Forming Machine
The K Span Arch Roll Forming Machine is designed for on-site fabrication of self-supporting arch structures. It efficiently transforms metal sheets into curved panels that interlock to form robust, weather-resistant buildings.
Technical Specifications
Overview
Professional Arch Forming Solution

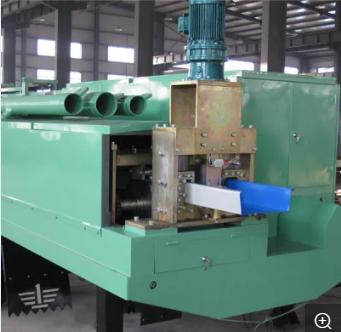

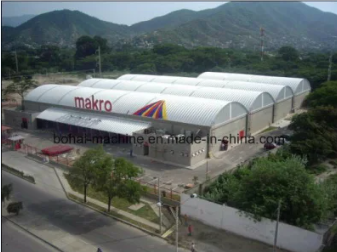

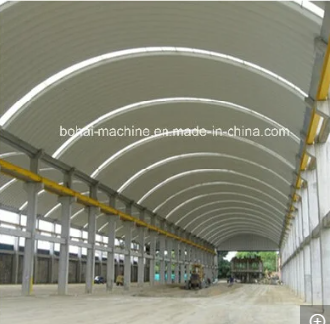

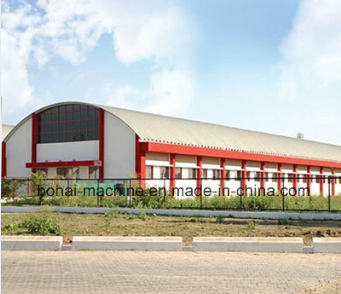

This K-Span arch roll forming machine is engineered for the on-site fabrication of self-supporting, weather-resistant arch structures. Utilizing a robust roll forming system, it efficiently transforms metal coils into curved panels suitable for warehouses, workshops, and large-span buildings. The system features computer-controlled precision, solid steel rollers, and adjustable bending mechanisms to ensure structural integrity and consistent quality.
Technical Specifications
- Machine Dimensions
- 8900 x 2230 x 2200 mm
- Total Weight
- 10000 kg
- Shipping Container
- 40'GP x 1
Performance Metrics
Key Performance Metrics
35 m
Maximum Span
600 mm
Feeding Width
300 mm
Effective Width
100 mm
Groove Depth
Power & Control
Power Configuration
| Component | Power Rating |
|---|---|
| Total Power | 15.2 kW |
| Main Motor | 5.5 kW |
| Bending Power | 4.5 kW |
| Cutting Power | 3.0 kW |
| Sewing Power | 2.2 kW |
Control System
PLC ControlManual Override
Construction Quality
Material Specifications
- Rollers & Shafts: Solid 45# steel with hard chromium plating
- Cutting Blade Material: Cr12moV
- Arch Shaping Leaf Thickness: 10mm
- Operational Features
- Computer-controlled shapingElectronic measurementMechanical measurementAdjustable bendingQuick-release hoisting
