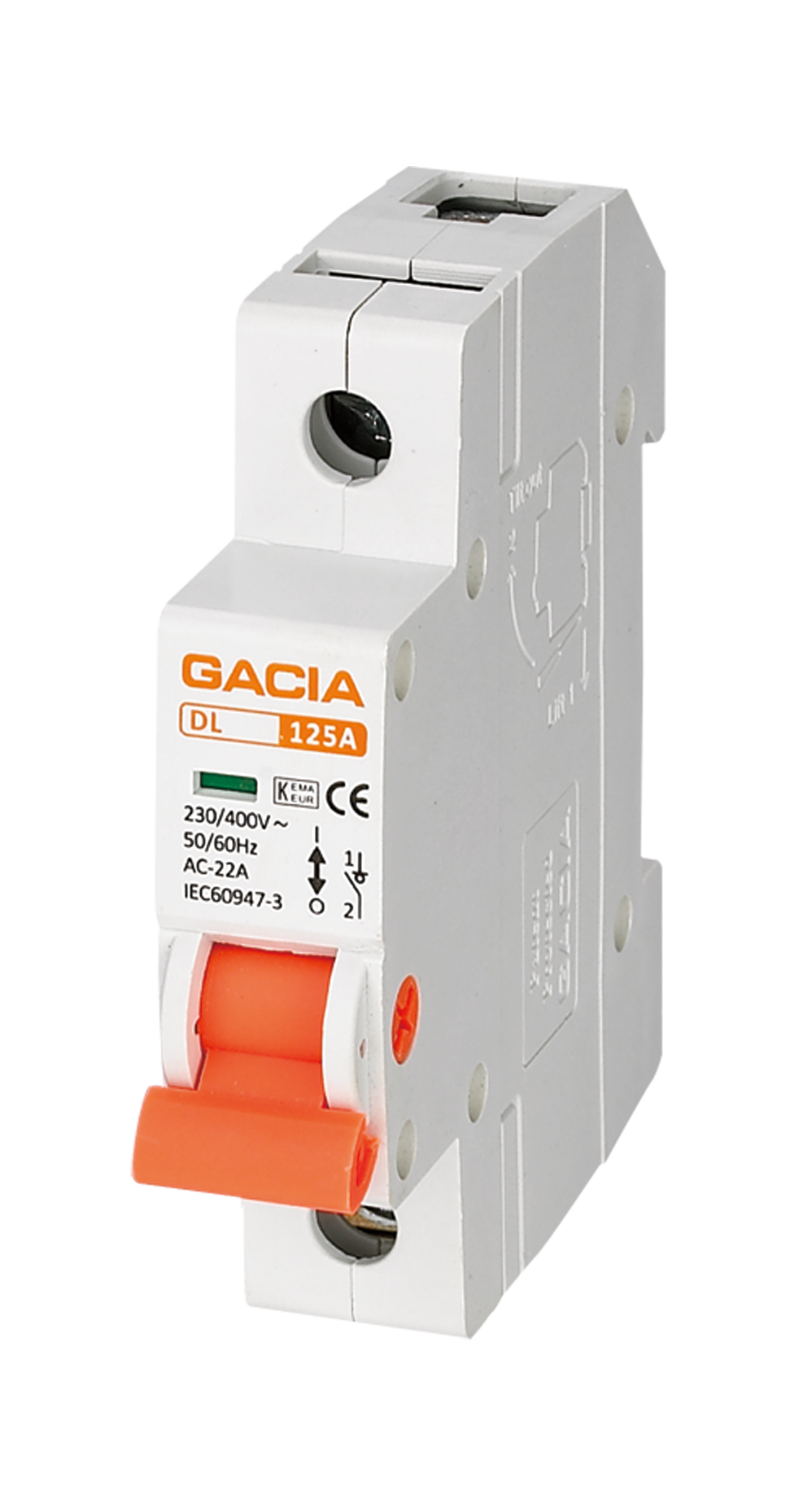

Isolating Switch
This isolating switch is designed for AC-22A applications. Compliant with IEC60947-3 standards, this switch provides reliable isolation with a clear on/off indication.
Technical Specifications
Overview
Versatile Main Isolation Switches
These isolating switches are engineered for use as main switches across a wide variety of applications. Built with a modular design, they offer flexibility for electrical installations and fulfill all requirements for isolation functions. Their robust construction ensures reliable performance in switching mixed resistive and inductive loads.
Electrical Characteristics
Utilization Category
AC-22A
- Rated Current
- 125 A
- Rated Voltage
- 230/400V AC
Compliance & Standards
- Standards Compliance
- IEC/EN 60947-3CE
Mechanical & Installation
Connection Methods
- Fork type busbar
- Pin type busbar
- Pole Configuration

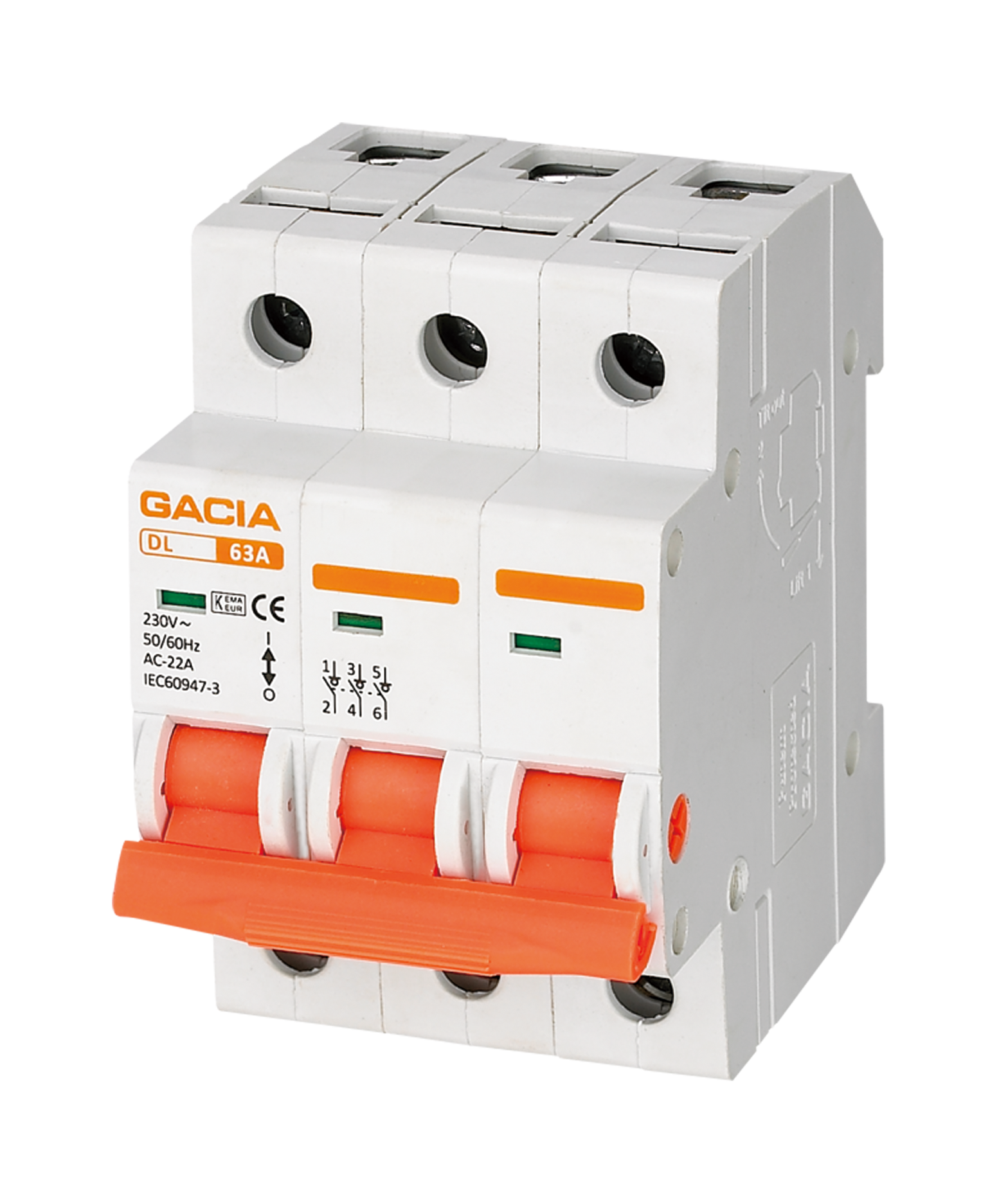

- 1 to 4 pole versions available
- Design
- Modular (one module unit per pole)
