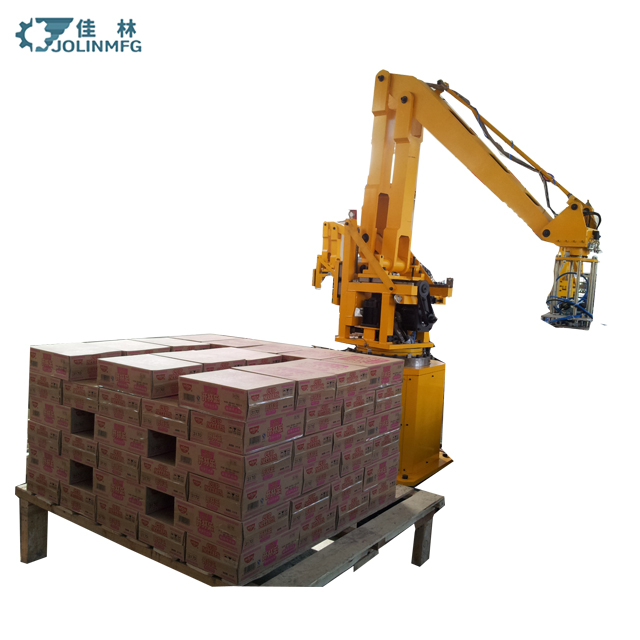

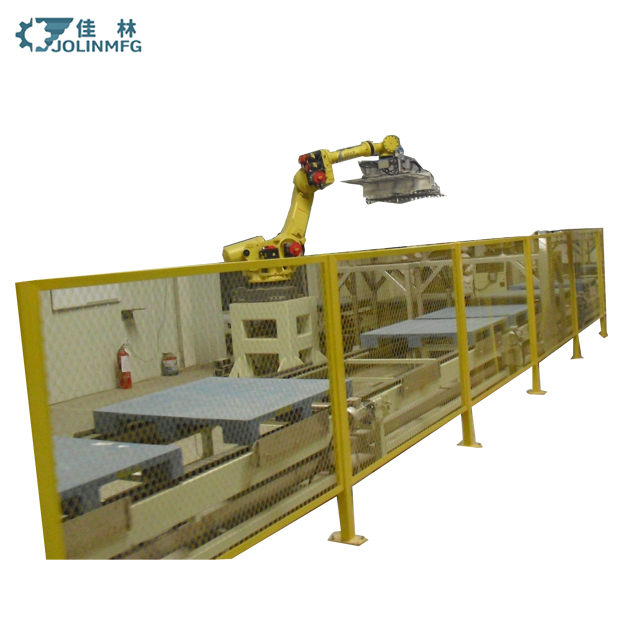

Industrial Robotic Palletizer for Cartons and Bags
This industrial robotic palletizer automates the stacking of cartons and bags onto pallets. The system integrates a multi-axis robotic arm with a programmable control system for precise palletizing patterns.
Technical Specifications
Overview
Industrial Robotic Palletizing Solution
This automated industrial palletizer is designed to streamline end-of-line packaging for both cartons and bags. The comprehensive system includes group organizing, bag/carton pushing, pallet storing, and integrated conveyor lines. Engineered for high performance, it utilizes a sophisticated control system to ensure precise and reliable palletizing operations.
Performance Metrics
Processing Capacity
15 cartons/min
Minimum Throughput
30 cartons/min
Maximum Throughput
- Noise Level
- 75 dB
Technical Specifications
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
- Pneumatic Pressure
- 0.5 - 0.6 MPa
- Air Consumption
- 45 NM3/Hour
- Power Supply
- 380V AC 50Hz, 10KW
Control & Automation
Control System Features
- Programmable Logic Controller (PLC)
- Touch Screen Interface
- Pneumatic System
Palletizing Modes
Customizable PatternsCarton HandlingBag Handling
