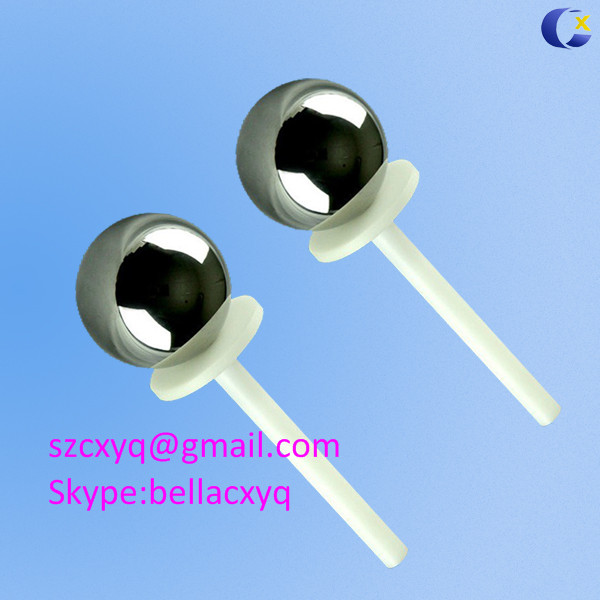

IEC61032 Figure 1 Access Test Probe
This IEC61032 Figure 1 safety probe A verifies basic protection against access to hazardous parts. It also verifies the protection against access with the back of the hand.
Technical Specifications
Overview
Precision Safety Testing
The IEC61032 Figure 1 Access Test Probe A is a precision instrument engineered to verify the degree of protection provided by enclosures against access to hazardous parts. It is designed to simulate human hand access, specifically the back of the hand, ensuring that enclosures prevent accidental contact with live components or moving parts. This probe is an essential tool for manufacturers and testing labs to ensure compliance with international safety standards such as IEC61032 and IEC60529.

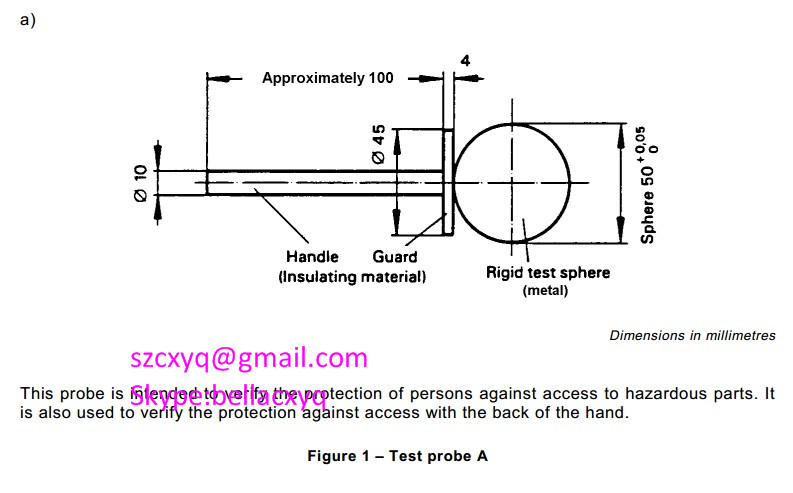

Technical Specifications
- Rigid Test Sphere Diameter
- 50 mm
- Sphere Tolerance
- +0.05/0 mm
- Handle Diameter
- 10 mm
- Handle Length
- 100 mm
- Guard Diameter
- 45 mm
- Guard Position
- 4 mm
Standards & Compliance
- Compliant Standards
- IEC61032IEC60529UL
Construction
Material Composition
| Component | Material Type |
|---|---|
| Rigid Test Sphere | Metal |
| Handle | Insulating Material |
