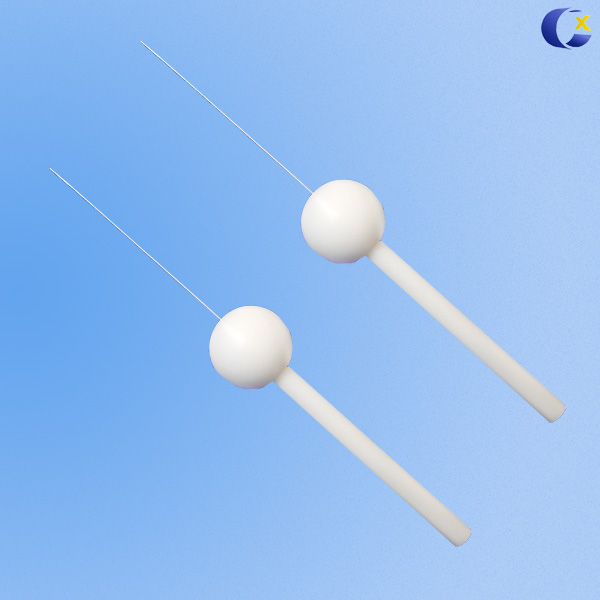

IEC61032-0 Figure 4 Test Probe D
The IEC61032-0 Figure 4 Test Probe D is designed to simulate human access to hazardous parts in electrical equipment. It verifies the degree of protection against access to hazardous parts, ensuring compliance with safety standards.
Technical Specifications
Product Overview
IEC61032-0 Figure 4 Test Probe D
The IEC61032-0 Figure 4 Test Probe D is a precision instrument designed to verify the protection of persons against access to hazardous parts within electrical equipment. This probe is essential for assessing enclosure safety and ensuring compliance with international standards regarding accessibility. Constructed with durable materials, it provides reliable and repeatable testing for product safety and compliance assessments.
Physical Dimensions
- Rod Length
- 100 mm
- Rod Diameter
- 2.5 mm
- Handle Length
- 100 mm
- Handle Diameter
- 10 mm
- Sphere Diameter
- 35 mm
Technical Specifications
Standard Compliance
IEC61032-0Figure 4
Primary Functions
- Verify protection against access to hazardous parts
- Simulate human access to electrical equipment
- Assess enclosure safety and accessibility
- Construction Materials
- Stainless Steel
