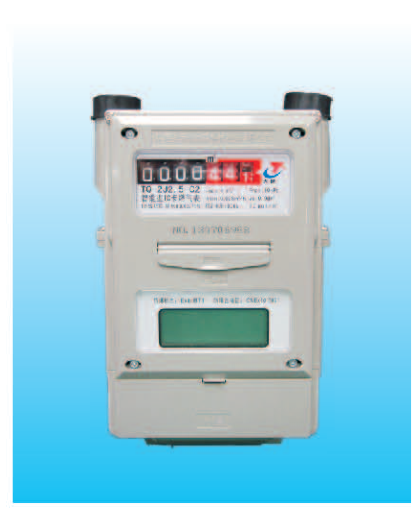

IC Card Prepaid Gas Meter
This electronic gas meter is designed with an IC card interface for prepaid gas consumption. It accurately measures gas usage with a digital counter, LCD screen, and mechanical wheel for cumulative volume.
Technical Specifications
Overview
Smart Prepaid Gas Metering Solution
This IC card prepaid gas meter is designed for precise and reliable gas consumption measurement in residential and commercial environments. It features an integrated IC card interface for convenient prepaid billing management, ensuring efficient utility usage. Built to rigorous industry standards, the meter offers durable performance with a service life exceeding 15 years and high measurement accuracy.
Performance Metrics
Nominal Flow Rates
- 1.6 m³/h
- 2.5 m³/h
- 4 m³/h
- Measuring Accuracy
- 1.5 grade
- Max Working Pressure
- 10 kPa
- Pressure Loss
- 250 Pa
Technical Specifications
- Display Resolution
- 0.01 m³
- IC Card Interface Life
- 10000 cycles
- Meter Service Life
- 15 years
Compliance & Standards
- Standards Compliance
- GB/T6968-1997CJ/T 112JJD-577-2005GB/T6968-2011
Physical Properties
- Weight
- 1.4 kg
- Operating Temperature
- 5°C - 40°C
