IBR Trapezoidal Roof Sheet Roll Forming Machine

This roof sheet roll forming machine produces IBR and trapezoidal profiles. It operates at a speed of 30 meters per minute and includes an electric cutter.

Request a Quote Download PDFPDF

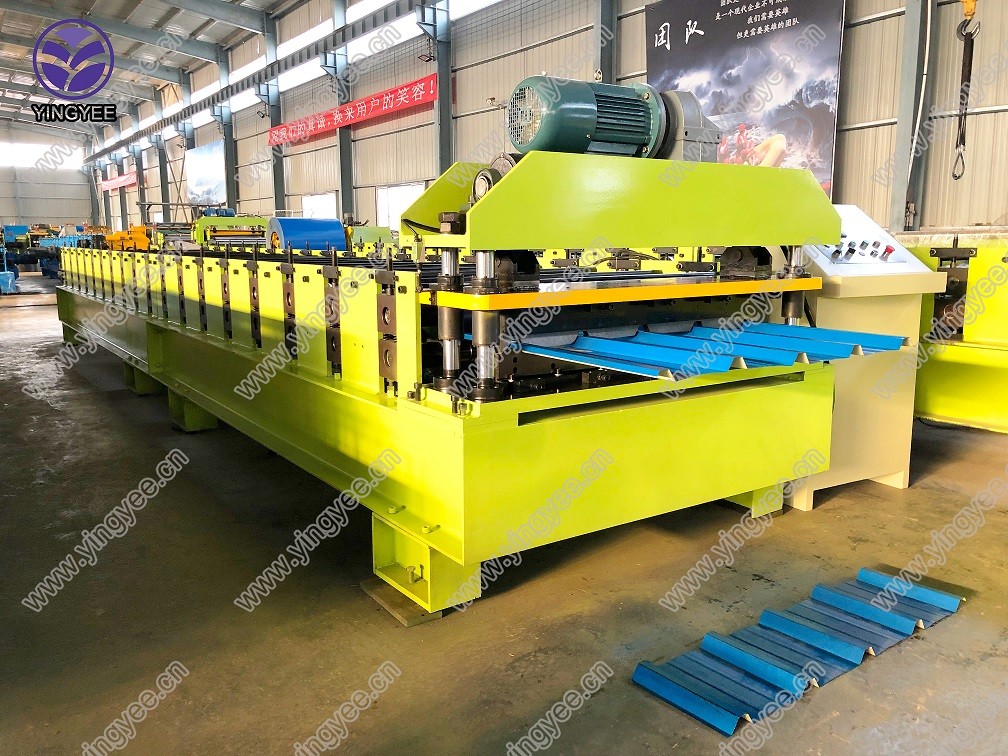

IBR/trapezoid roof sheet roll forming machine 02 - Image 1

Technical Specifications

Overview

High-Efficiency Roll Forming Solution

This industrial-grade roll forming machine is engineered for the precise and continuous production of IBR and trapezoidal roof sheets. Featuring a robust construction and an integrated hydraulic cutting system, it ensures consistent material shaping and dimensional accuracy. Designed for high-volume manufacturing, the system includes advanced PLC controls for seamless operation and parameter adjustments, making it an ideal choice for large-scale roofing material production.

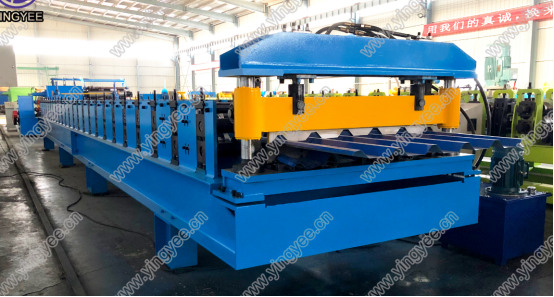

Full view of the industrial roll forming machine — The complete production line featuring heavy-duty construction for continuous operation.

Technical Specifications

Production Speed: 30 m/min
Material Thickness: 0.2 - 0.8 mm
Compatible Materials: PPGIGIAluminium

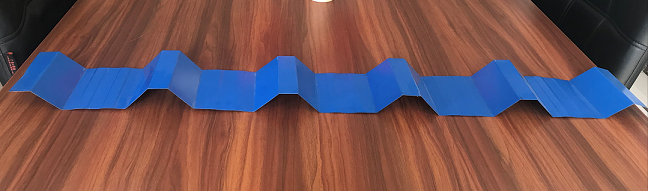

Precision rollers designed for progressive shaping of IBR and trapezoidal profiles.

System Components

Included Components

Manual Coiler
Adjustable Input Equipment
Main Roll Forming Machine with Chromed Plate
Hydraulic Cutting System
Hydraulic Station
PLC Control System

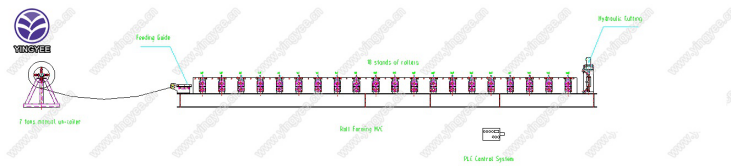

Diagram of the IBR trapezoid roof sheet roll forming machine components — Comprehensive system layout showing the uncoiler, rollers, and cutting stations.

Key Metrics

Uncoiler Capacity

7 tons

Uncoiler Capacity
