Professional Hydraulic Butt Fusion Welder

This hydraulic butt fusion welding machine is specifically designed for joining polyethylene (PE) pipes with precision and reliability. It utilizes a robust hydraulic system to ensure consistent pressure, alignment, and fusion quality, making it an ideal solution for water, gas, and industrial pipeline projects. The system includes essential components such as a heating plate, milling cutter, and hydraulic unit, ensuring durable, leak-proof connections for pipes ranging from 50mm to 200mm.

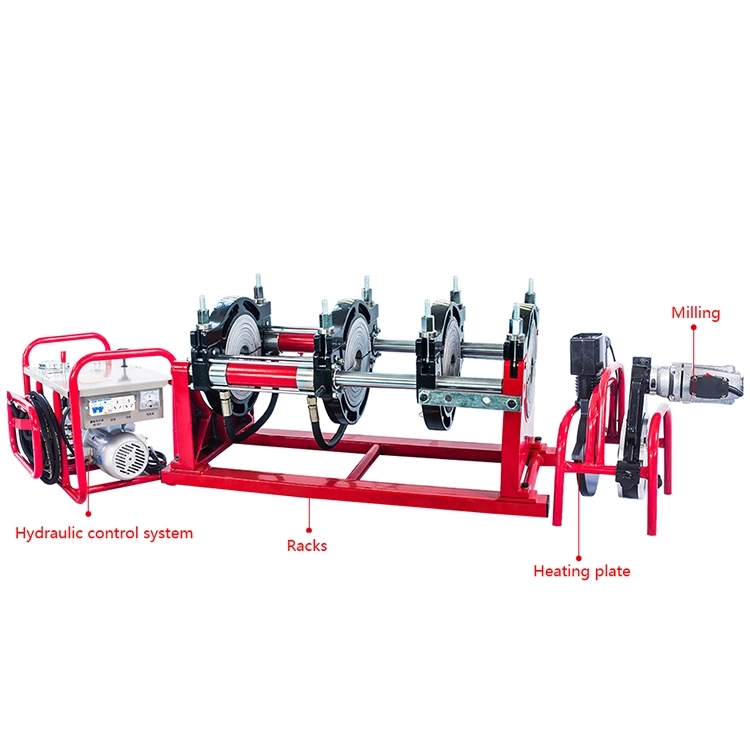

Hydraulic butt fusion machine components including racks and heating plate — Core components: Hydraulic control system, racks, heating plate, and milling tool.

Hydraulic butt fusion welder in operation — Designed for reliable and efficient joining of PE pipes in water and gas applications.

Technical Specifications

Power Rating

3.25 kW

Power

220 V

Voltage

Component Weights

Component	Weight
Racks	42 kg
Heating Plate	3.8 kg
Milling Tool	7 kg
Hydraulic Station	41.5 kg
Basket	2.1 kg

Logistics Data

Total Volume: 0.446 m³
Net Weight: 96.4 kg
Gross Weight: 110 kg

Welding Range: 50mm63mm75mm90mm110mm125mm140mm160mm180mm200mm

Operation & Process

Standard Welding Procedure

Fix pipes on the frame with 5-8cm gap
Mill pipe ends to ensure smooth surfaces
Heat pipe ends using the temperature-controlled plate
Apply hydraulic pressure for fusion
Cool and remove pipe from frame

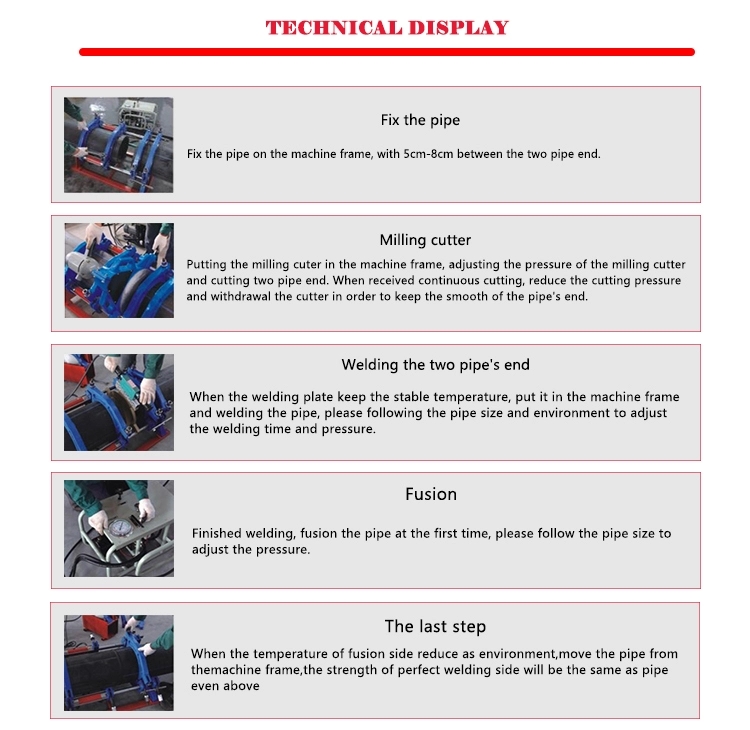

Technical diagram showing the step-by-step welding process — Step-by-step technical guide for the butt fusion welding process.

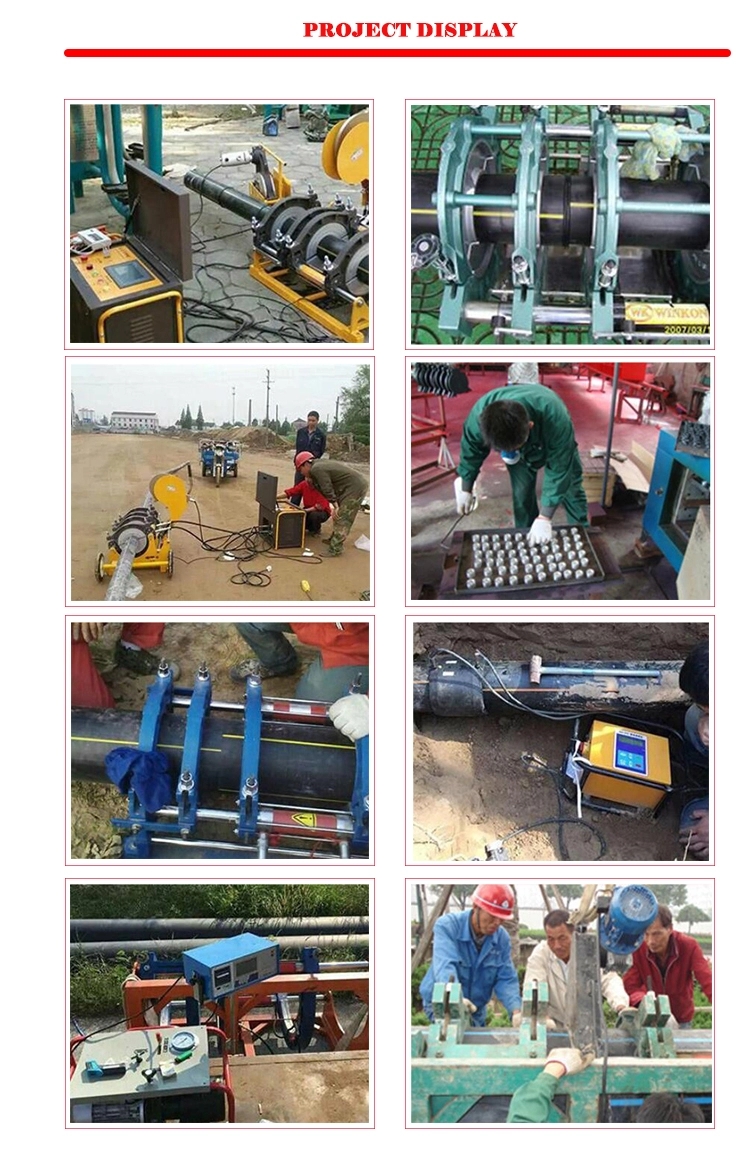

Project display of the welding machine on a job site — The machine in a real-world project environment, demonstrating versatility and alignment capabilities.
