Hydraulic Butt Fusion Welding Machine for PE Pipes
This hydraulic butt fusion welding machine is designed for joining PE pipes using a butt welding technique. It creates strong, leak-proof joints by heating and fusing pipe ends under controlled pressure.
Technical Specifications
Overview

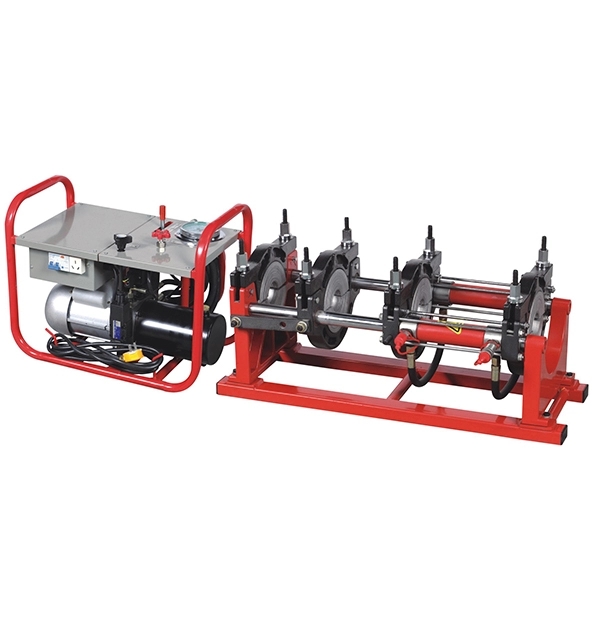

Professional Hydraulic Butt Fusion Welding Machine
This hydraulic butt fusion welding machine is engineered for the precise joining of polyethylene (PE) pipes, delivering strong, leak-proof connections essential for water supply, gas distribution, and industrial piping projects. The system features a robust frame, a hydraulic power unit for consistent pressure control, and a comprehensive set of components including a milling tool and heating plate. Designed for both workshop and on-site applications, it ensures reliable welding results across a wide range of pipe diameters.
Technical Specifications
Welding Range
- 50
- 63
- 75
- 90
- 110
- 125
- 140
- 160
- 180
- 200
Power Rating
3.25 kw
Power
220 V
Voltage
Weight Metrics
96.4 kg
Net Weight
110 kg
Gross Weight

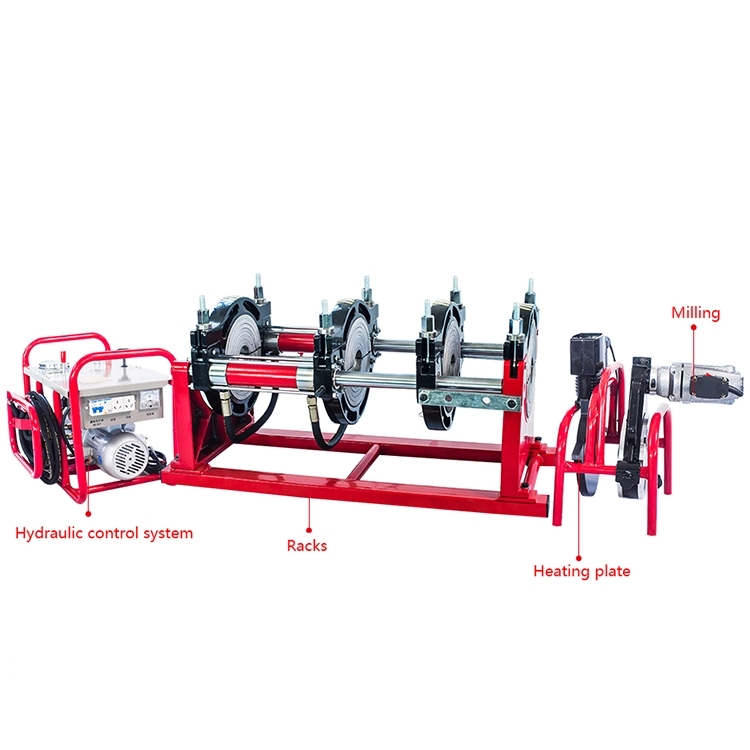

Component Details
Component Specifications
| Component | Dimensions (cm) | Weight (kg) |
|---|---|---|
| Rack | 82 x 44 x 40 | 42 |
| Heating Plate | 37 x 5 x 40 | 3.8 |
| Milling Tool | 35 x 36 x 35 | 7 |
| Hydraulic Station | 58 x 47 x 47 | 41.5 |
| Basket | 33.5 x 18.5 x 46 | 2.1 |
Features
- Key Features
- Hydraulic Control SystemPrecise Pressure AdjustmentOn-site CompatibleLeak-proof WeldingRobust Frame Design
