Technical Specifications
Product Overview
High-Efficiency Hydraulic Arch Roll Forming

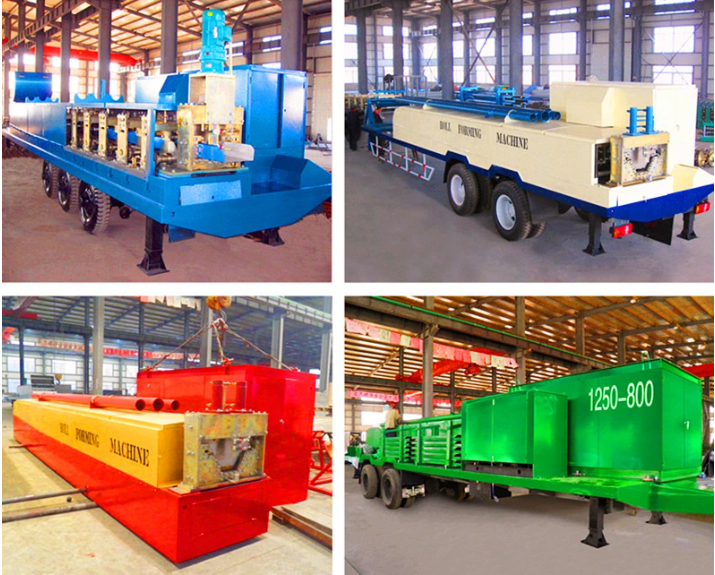

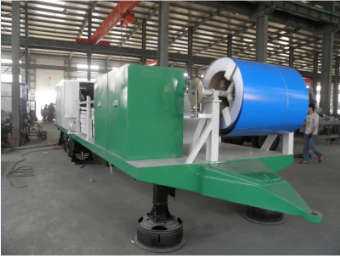

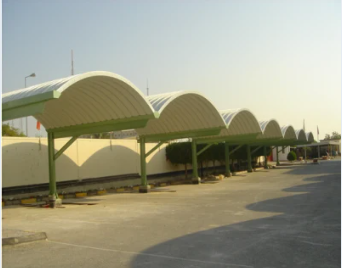

This hydraulic arch roofing sheet roll forming machine is a complete solution for the precise production of curved metal roofing panels. Designed for durability and industrial-scale projects, it features a powerful hydraulic system that ensures consistent arch profiles and smooth forming. The machine is engineered for mobility and ease of operation, making it ideal for on-site construction of warehouses, agricultural buildings, and commercial structures.
Key Performance Metrics
Performance Metrics
15 m/min
Forming Speed
13 m/min
Bending Speed
16 m/min
Seaming Speed
15.2 KW
Total Motor Power
Material Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Feeding Width | 600mm |
| Effective Width | 305mm |
| Coil Thickness Range | 0.5 - 1.6mm |
| Material Utilization Rate | 50.8% |
Technical Components
Component Details
- Roller Material: 45# High-Quality Steel (HRC 55~65) with Hard Chrome Plating
- Shaft Material: 45# High-Quality Steel, Galvanized
- Cutting Blade: 12CrMov Material with Heat Treatment
- Bending Leaf: 10mm Thickness, CNC Processed
- Molding Steps: 13 + 1 Steps
Physical Dimensions
- Machine Dimensions
- 8900mm x 2100mm x 2300mm (Includes Single Axle with 4 Tires)
- Total Weight
- 10 Ton
Operational Features
- Operational Features
- Hydraulic FormingMechanical CuttingLength-Set CuttingMobile DesignAutomated ControlSafety GuardsEmergency Stop
Power Distribution
Power Breakdown
| System | Power (KW) |
|---|---|
| Roll Forming Motor | 5.5 |
| Cutting Power | 3 |
| Bending Power | 4.5 |
| Seaming Power | 2.2 |
