HS-F1000-85AB Modular Plastic Conveyor Belt

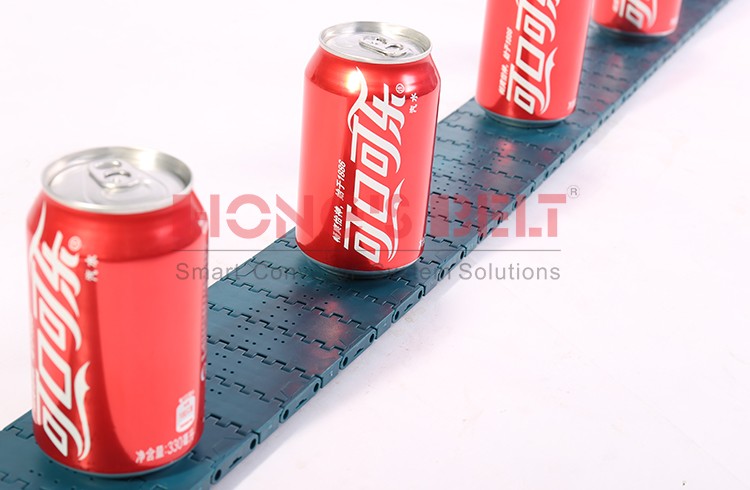

This modular plastic conveyor belt is designed for the beverage industry. Its modular construction allows for easy assembly, disassembly, and maintenance.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered for demanding industrial environments, particularly in the food and beverage sectors. Featuring a robust, interlocking modular design, it offers exceptional durability, easy maintenance, and significant operational efficiency. With a high load capacity of up to 1.2 tons per square meter and resistance to extreme temperatures, it provides a reliable solution for smooth, hygienic product transportation.
Technical Specifications
- Model Number
- HS-F1000-85AB
- Pitch
- 25.4 mm
- Thickness
- 8.6 mm
- Minimum Width
- 85 mm
- Rod Diameter
- 4.5 mm
- Open Area
- 1%
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Performance & Compliance
Working Temperature Range
-40 °C
Min Temp
260 °C
Max Temp
Certifications
FDAEU Approved
- Maximum Load Capacity
- 1.2 tons/m²
Configuration
Sprocket Dimensions
- 12T-2R
- 18T-2R
- 20T-2R
- Square bore & round bore options
Belt Features
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve | No |
Applications
Industry Applications
- Food Industry: Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables
- Non-food Industry: Automotive, Tire manufacturing, Packaging, Printing/Paper, Postal, Corrugated cardboard, Can manufacturing, PET manufacturing, Textile
