Hook Gantry Crane
This hook gantry crane is suitable for outdoor lifting and unloading tasks at warehouses or railways. It consists of a bridge, support legs, crane travelling mechanism, trolley, electric equipment, and a lifting winch.
Technical Specifications
Product Overview
Industrial Gantry Crane Solutions
These gantry cranes are designed for efficient lifting and unloading in outdoor environments such as warehouses, railway yards, and construction sites. Featuring robust box-type welded frames and versatile girder configurations, these cranes provide reliable material handling without the need for fixed building support structures. Available in various designs, including single and double girder models, they ensure precise control and safe operation for a wide range of industrial capacities.
Key Features
Operational Advantages
- Simple structure for easy installation and maintenance
- High-performance pneumatic and electric components
- Advanced double crank control for die opening and closing
- Automated and intelligent operation system
- Direct integration capability with filling line air conveyors
Technical Specifications
Crane Type Comparison
| Crane Type | Capacity (t) | Span (m) | Lift Height (m) |
|---|---|---|---|

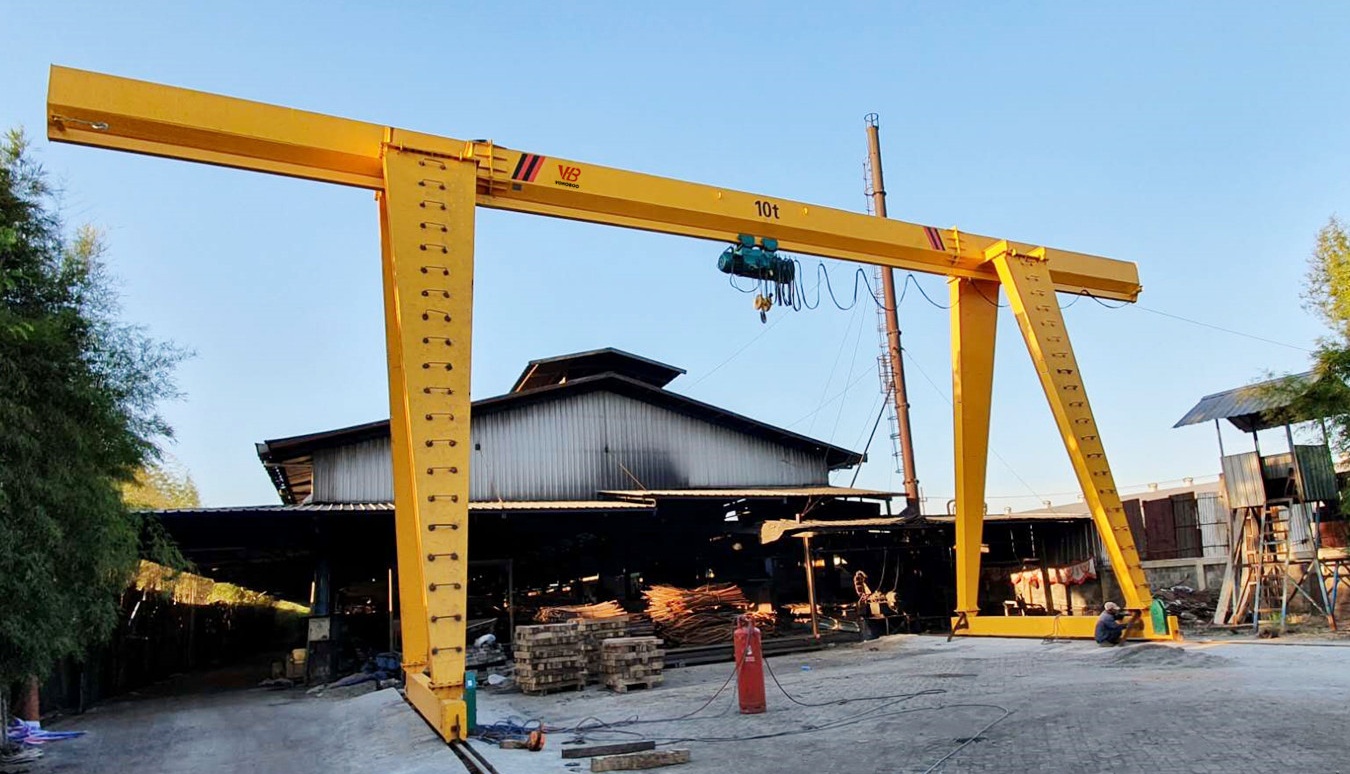

| Single Girder | 5 - 20 | 12 - 30 | 6 - 12 |

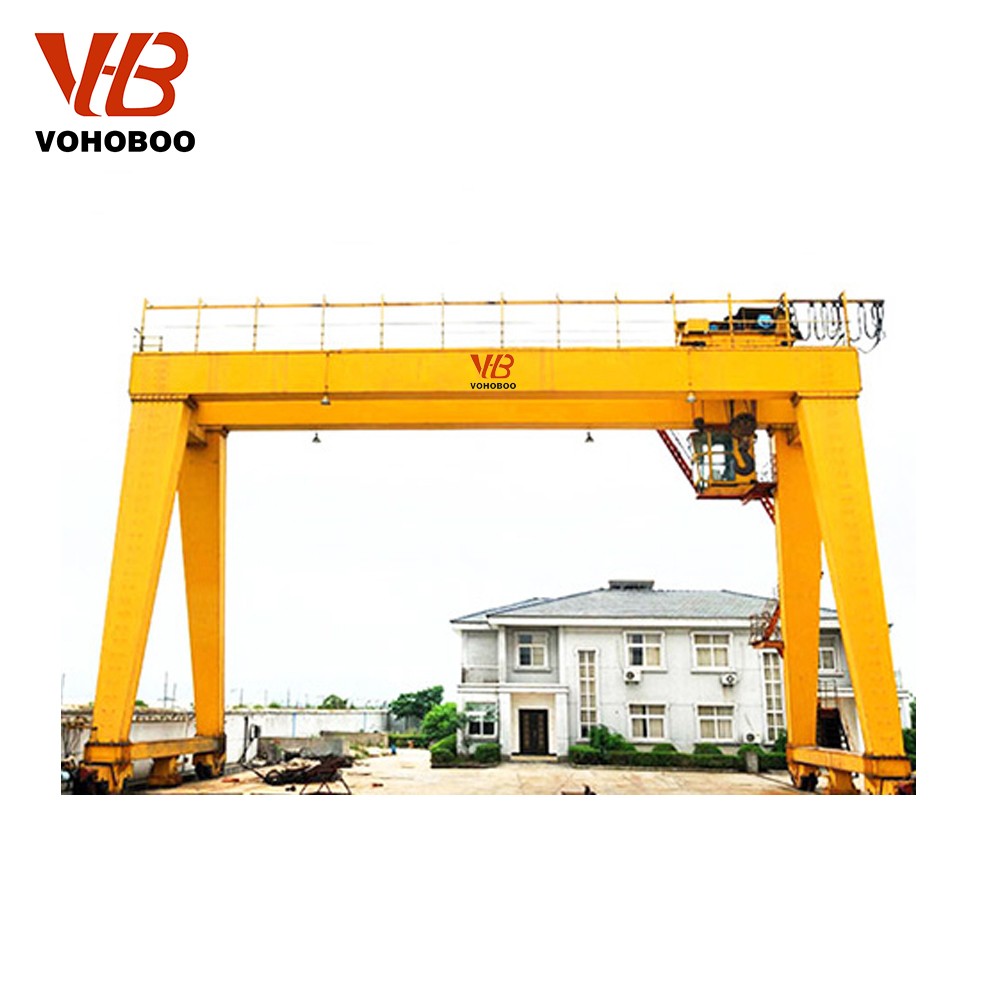

| Double Girder | Up to 500 | 12 - 35 | Up to 12 |
| Single Girder Truss | 5 - 20 | 12 - 30 | 6 - 12 |
| Semi Gantry | 2 - 10 | 10 - 20 | 6 - 12 |
| L-Type Single Girder | 5 - 32 | 12 - 30 | Not specified |
Configuration
- Structural Components
- Box-type weldingA-frame supportFlexible cable conductiveSlide wire conductiveDriver cabin operation
