Technical Specifications
Overview
High-Performance Laser Processing

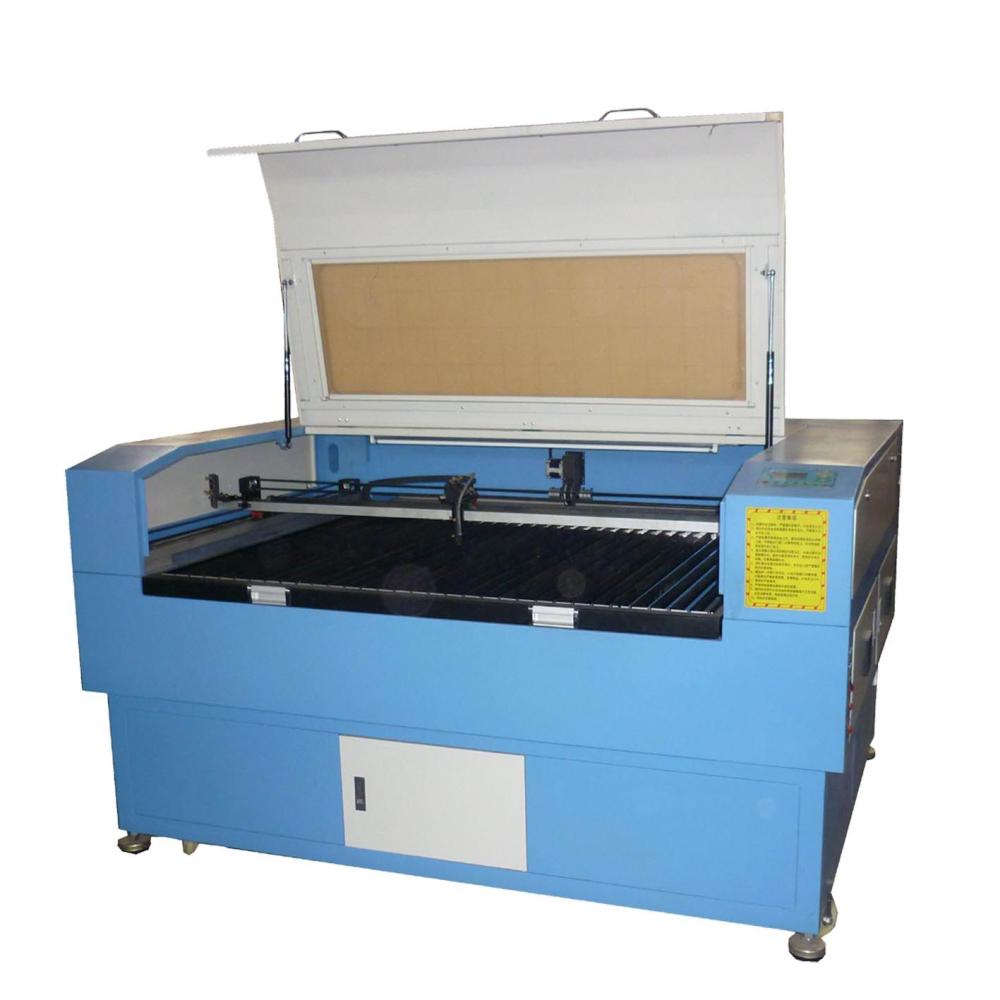

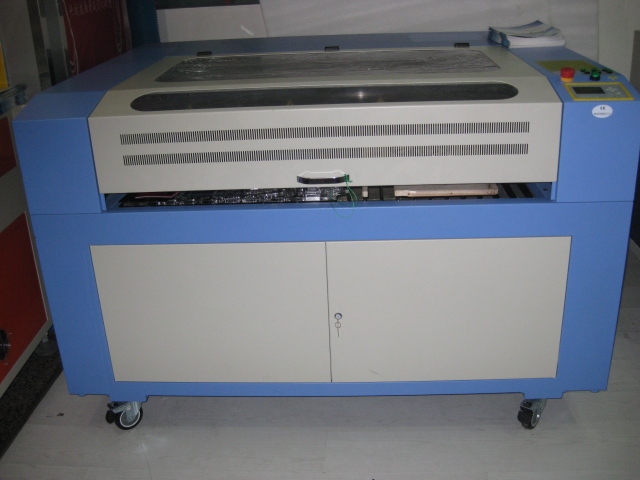

This high-speed laser cutting and engraving machine is engineered for precision and reliability in industrial environments. Featuring advanced linear guide rails and a high-grade laser tube, it delivers consistent results across diverse materials. The system supports offline operation via USB and includes intelligent features like red spot positioning and automatic light compensation to streamline production workflows.
Performance Metrics
Key Performance Indicators
60,000 mm/min
Max Engraving Speed
10,000 mm/min
Max Cutting Speed
30 mm
Max Cutting Thickness
Technical Specifications
Model Specifications
| Model | Working Area (mm) |
|---|---|
| SF-640 | 600*400 |
| SF-960 | 900*600 |
| SF-1390 | 1300*900 |
| SF-1410 | 1400*1000 |
Operating Environment
- Temperature: 5-40°C
- Humidity: 5-90% (Free of condensed water)
Features
Key Machine Features
- Imported high-precision linear guide rail
- USB interface for offline processing and large memory storage
- Red spot positioning system
- Auto-supplement system for light declining
- Honeycomb or blade platform options
- Compatible File Formats
- PLTBMPDSBDSTDXF
