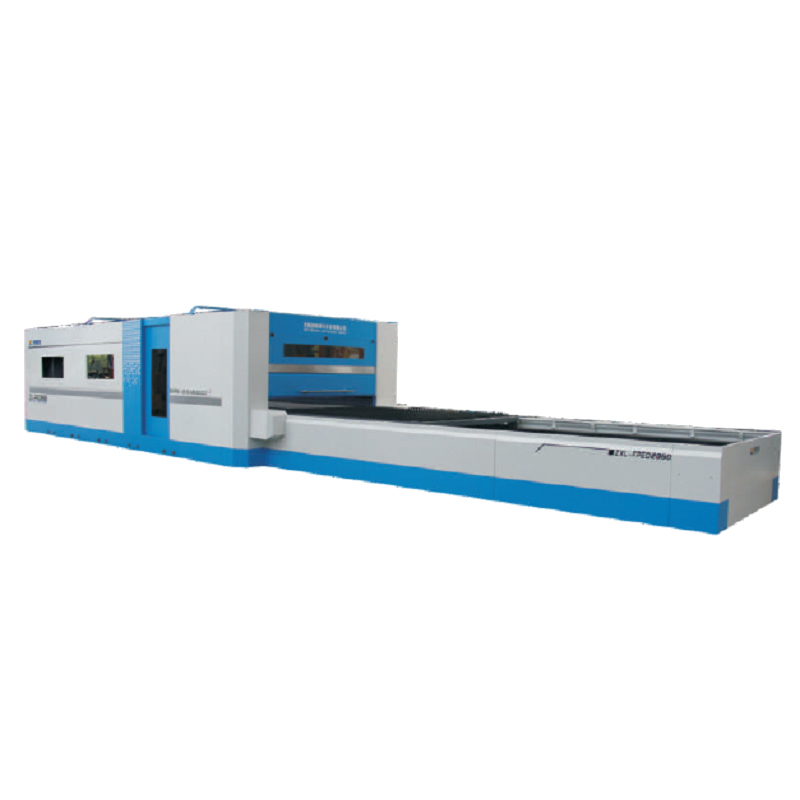

High Power Fiber Laser Metal Cutting Machine
This fiber laser cutting machine uses a fiber laser to produce a high-energy density laser beam. The beam melts and sublimates the workpiece surface, achieving automatic cutting through a CNC mechanical system.
Technical Specifications
Overview
High-Performance Fiber Laser Cutting
This high-power fiber laser cutting machine utilizes advanced optical focusing technology to deliver smooth, precise cuts on metal plates. Designed for industrial efficiency, it features a gantry-type structure with an aviation-grade aluminum alloy beam for superior stability and speed. With dual exchange working tables and high photoelectric conversion efficiency, it is an ideal solution for heavy-duty metal processing across sectors like aerospace, automotive, and engineering.
Technical Specifications
Laser Power Range
2,000 W
Minimum Power
12,000 W
Maximum Power

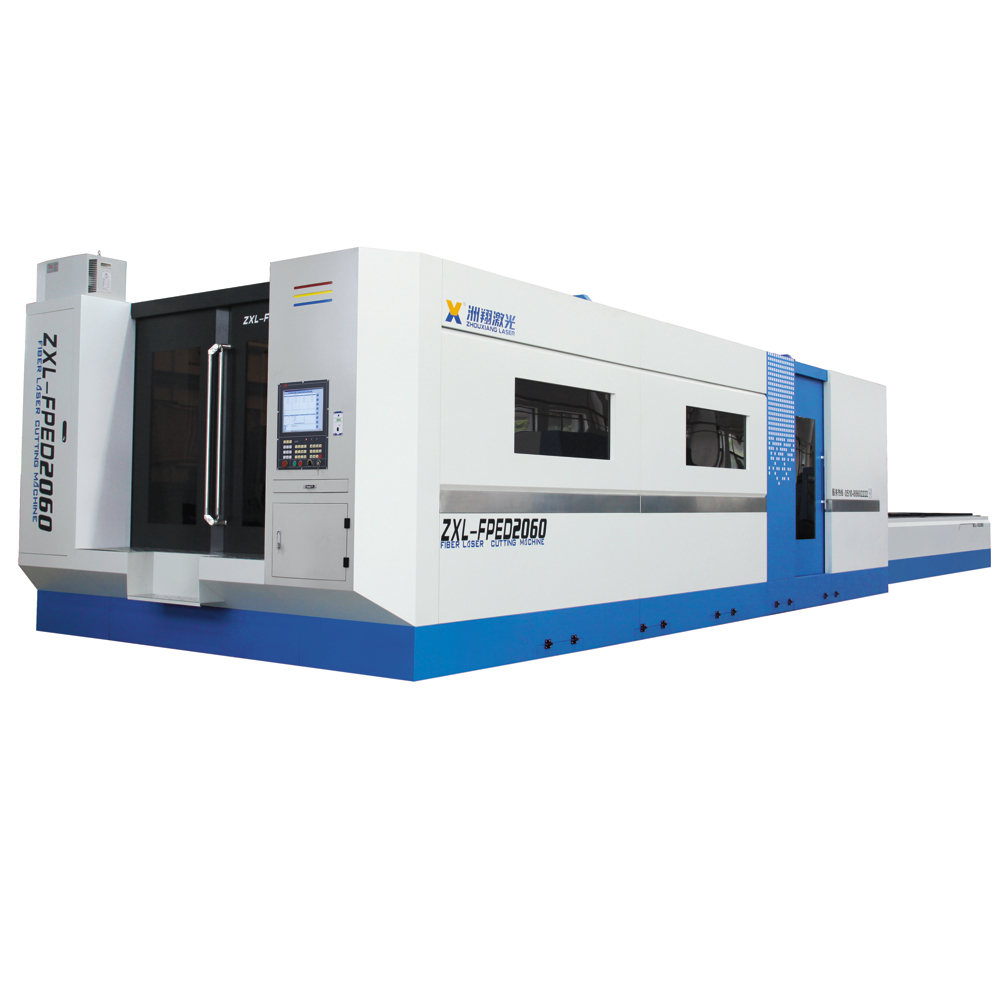

- Machine Model
- FPED2060
- Cutting Thickness
- 0.5 - 30mm
- Working Area
- 2000 x 6000mm
Performance Metrics
- Maximum Speed
- 120 m/min
- Max Acceleration
- 1.5 G
- Repeat Positioning Accuracy
- ±0.02mm
Construction & Design
- Frame Structure
- Gantry type, welded rectangular tubes with internal stiffeners
- Beam Material
- 6061 T6 Aviation Aluminum Alloy
- Table Weight
- 4500 kg
- Rectangular Pipe Wall Thickness
- 10 mm
Electrical Requirements
- Voltage and Frequency
- 380V 50Hz/60Hz
Features
- Key Features
- Exchange Working TablesAviation Aluminum BeamHigh Photoelectric EfficiencyEnergy SavingGantry Structure
Industries
Suitable Industries
- Aerospace
- Automobile
- Electrical Equipment
- Shipbuilding
- Elevator Manufacturing
- Household Appliances
- Decoration & Advertising
