HDPE Pipe Butt Fusion Welding Machine
This machine is designed for butt fusion of HDPE pipes using the thermofusion method. It features a hot plate for heating the pipe ends, ensuring a strong and reliable weld.
Technical Specifications
Product Overview
Professional HDPE Butt Fusion Welding
This manual butt fusion welding machine is engineered for joining high-density polyethylene (HDPE) pipes and fittings with precision and reliability. Utilizing a controlled hot plate thermofusion method, it creates strong, leak-proof joints suitable for plumbing, gas, and fluid transfer systems. The robust frame and adjustable clamping system ensure consistent alignment and pressure, making it an ideal solution for both field and workshop applications.
Technical Specifications
- Welding Method
- Butt Fusion / Thermofusion
- Operation
- Manual
- Applications
- PlumbingGas DistributionWater TransferOn-site WeldingWorkshop Use
Key Features
Core Components

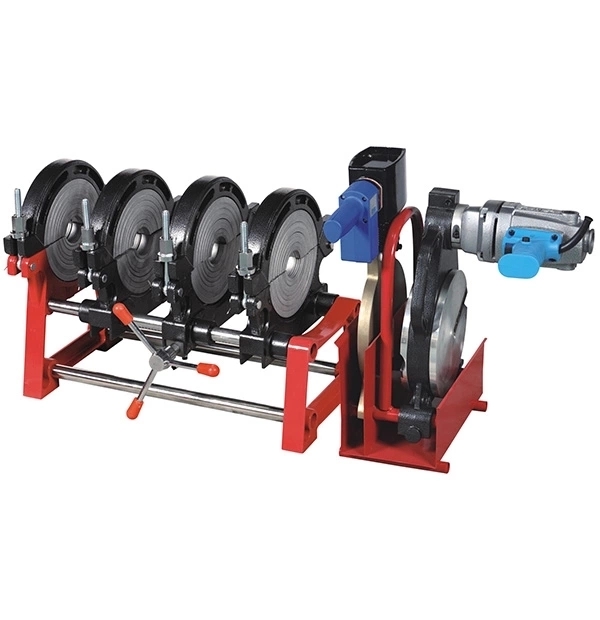

- Robust structural frame
- Adjustable pipe clamps for various diameters
- Precision heating plate
- Integrated milling cutter for pipe end preparation
- Manual lever system for pressure control
Operational Process
Welding Procedure
| Step | Description |
|---|---|
| Preparation | Fix pipe in frame with 5-8cm gap |
| Facing | Use milling cutter to ensure smooth pipe ends |
| Heating | Apply hot plate at stable temperature |
| Fusion | Apply pressure according to pipe size and environment |
| Cooling | Allow joint to cool before removal |
