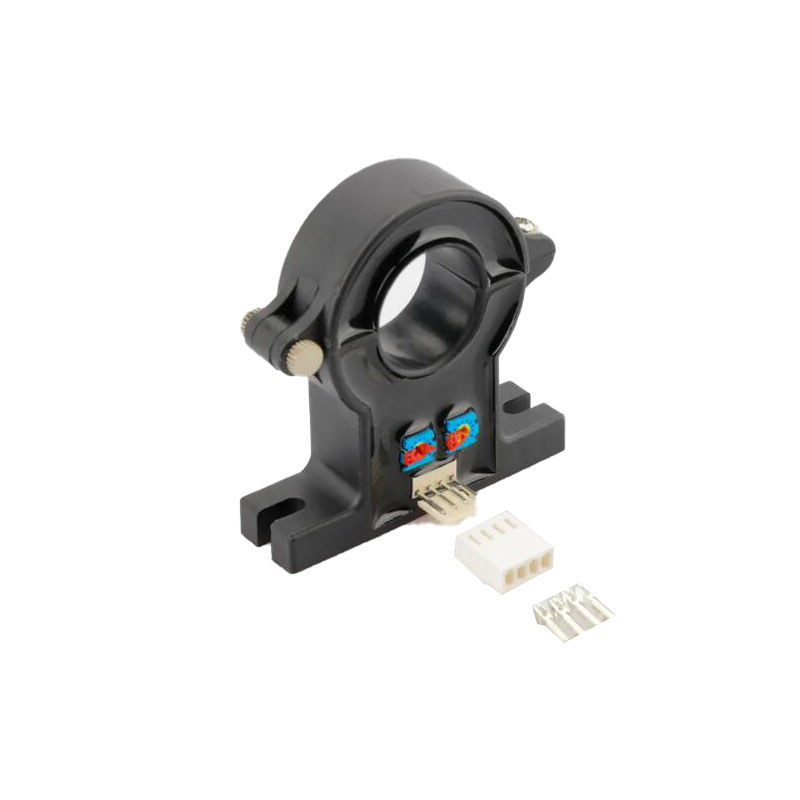

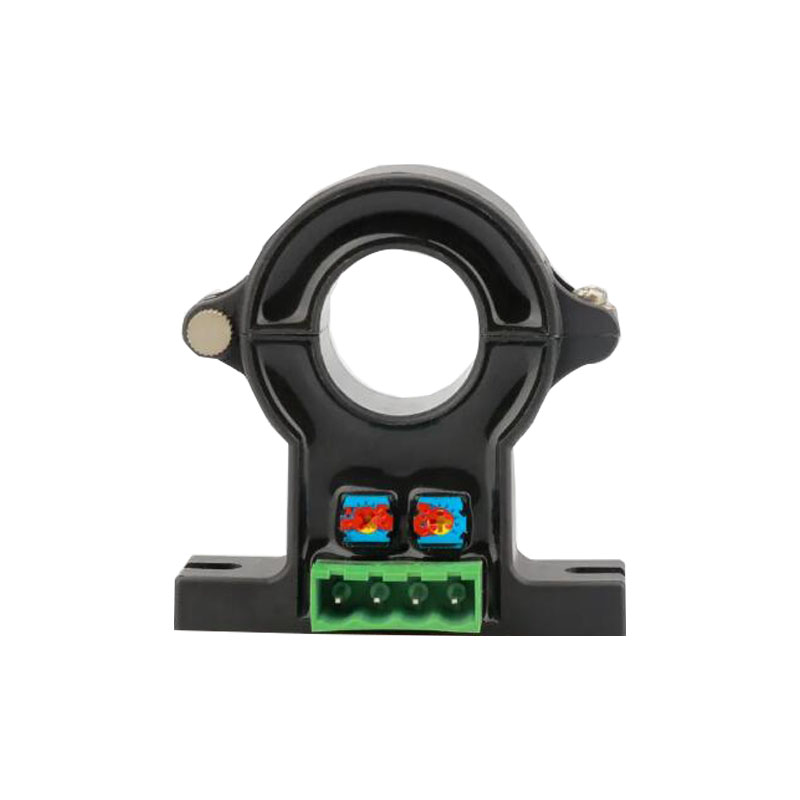

Hall Effect Class 0.5 Current Transformer
This Class 0.5 hall effect current transformer is designed for accurate current measurement. It is suitable for mounting on walls or bus bars.
Technical Specifications
Overview
Advanced Hall Effect Current Sensing
This dismountable Hall effect current sensor provides precise DC current measurement using the Hall effect principle, ensuring galvanic isolation between primary and secondary circuits. Its open-loop design generates an electronic output signal compatible with PLC or DSP control systems, making it ideal for industrial automation and power quality monitoring. With high immunity to external interference and a non-contact measurement method, it offers a reliable, low-maintenance solution for demanding electrical environments.
Key Features
- No insertion losses
- Small size, easy installation
- Low power consumption
- Linear Output Characteristics
- High immunity to external interference
- Non-contact measurement
- Short response time
Technical Specifications
Electrical Performance
600 A
Max Measure Range
3 kV
Galvanic Isolation
1,000 MΩ
Isolation Resistance
Operating Conditions
| Parameter | Range |
|---|---|
| Operating Temperature | -25 to +70°C |
| Storage Temperature | -40 to +85°C |
| Power Consumption | <30mA |
- Supply Voltage Options
- ±12V±15V+12V~+24V
Applications
Recommended Applications
Industrial AutomationWelding EquipmentVariable Speed DrivesPower Quality MonitoringSMPSUPSBattery Systems
