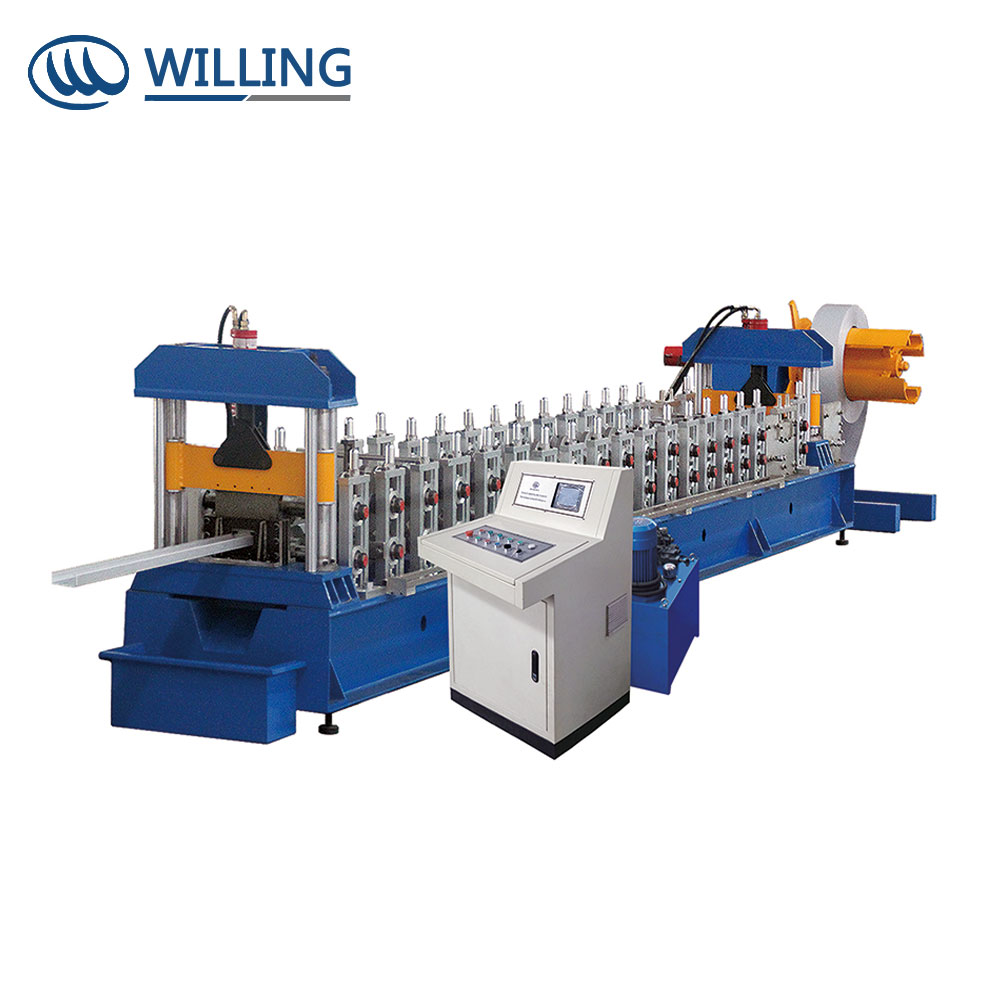

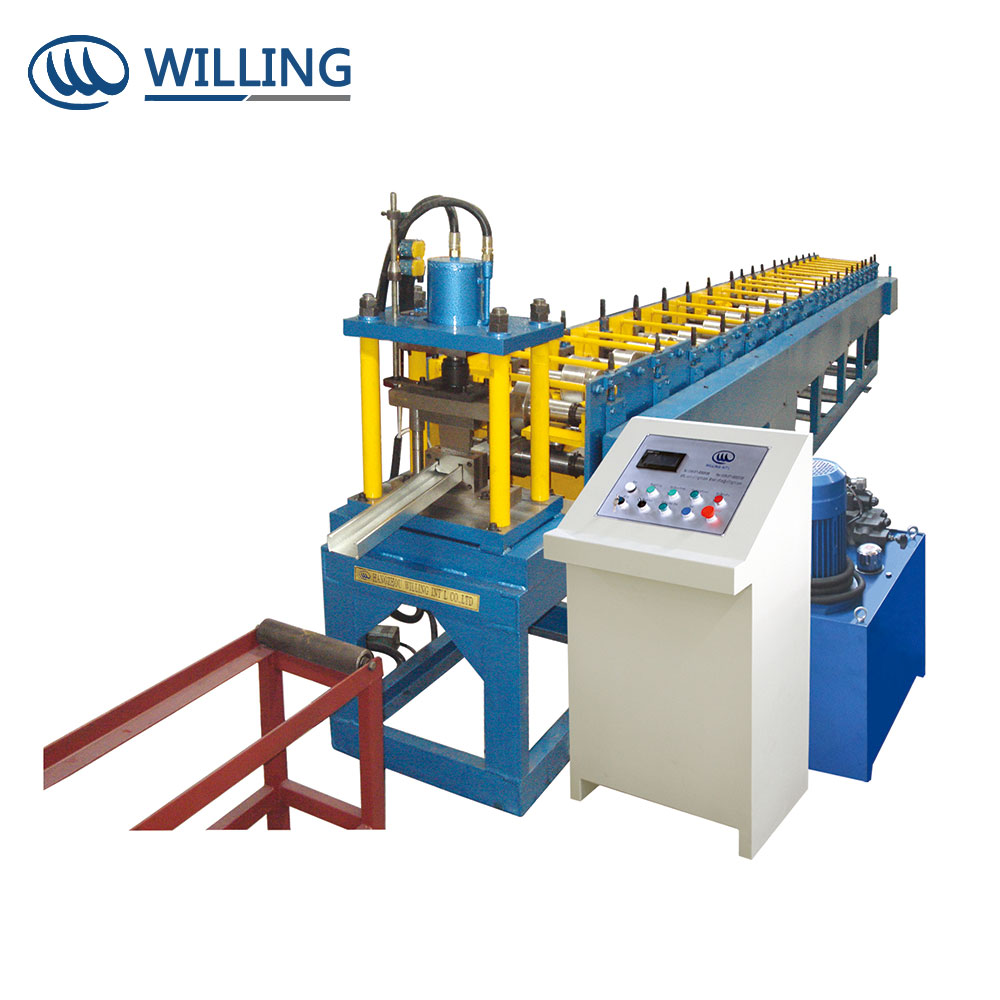

Half-Round Gutter Roll Forming Machine
This machine efficiently produces half-round gutters with precise shaping and cutting. It features automated controls and is suitable for various metal materials.
Technical Specifications
Overview
High-Efficiency Gutter Production
This industrial roll forming machine is engineered for the precise and efficient production of half-round gutters. Designed for high-volume manufacturing environments, it integrates multiple stages including uncoiling, straightening, and precision roll forming to ensure consistent profiles. With an automated PLC control system and hydraulic cutting mechanisms, it offers reliable performance and easy operation for various metal materials.
Technical Specifications
- Max. Forming Speed
- 15 m/min
- Material Thickness
- 1.5 - 3.0 mm
- Yield Stress
- Q235-345 MPa
- Roller Material
- Bearing steel GCr15
- Roller Driven Type
- Chain transmission
- Controller
- PLC

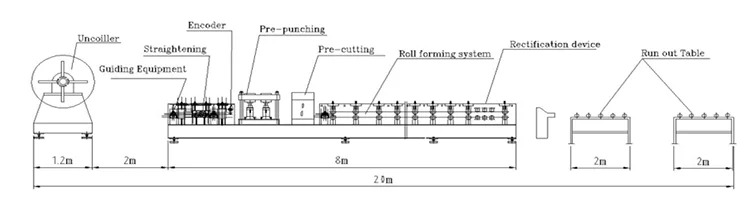

System Configuration
System Components
- Uncoiler
- Straightening and Guiding Equipment
- Pre-punching Station
- Pre-cutting Station
- Roll Forming System
- Rectification Device
- Run-out Table
- Total Machine Length
- 24 m
Certifications & Standards
- Compliance
- CE CertifiedISO 9001:2008
