H-Beam Assembly Machine
The H-beam assembly machine quickly spot welds flanges and webs together. This process ensures accurate alignment, improving the production efficiency and quality of finished H-beams.
Technical Specifications
Overview
Precision H-Beam Assembly

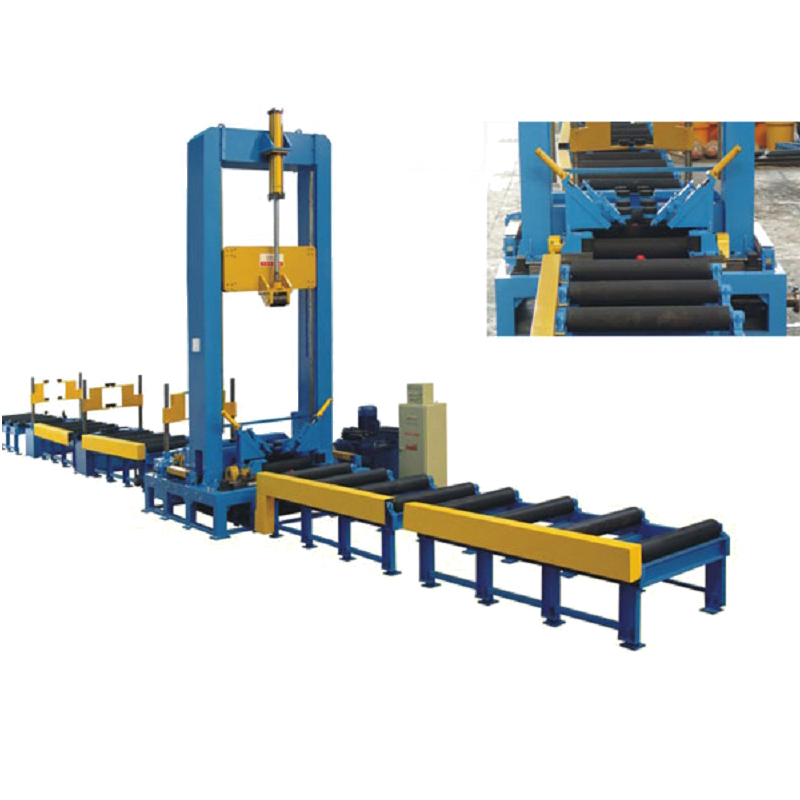

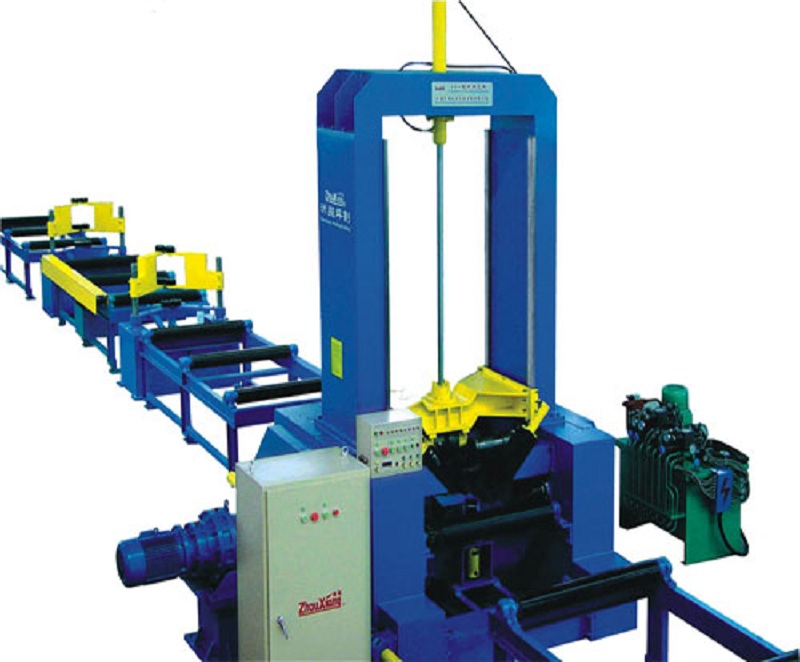

The H-Beam Assembly Machine is engineered to streamline the production of structural H-beams by accurately positioning and spot-welding flanges and webs. This robust system utilizes a draw bar centering system, hydraulic clamping, and integrated conveyors to ensure consistent alignment and high production efficiency. Designed for versatility, the machine supports both automatic and manual welding configurations to suit specific operational requirements and budget considerations.
Technical Specifications
- H-Beam Height Range
- 200 mm
- Web Thickness Range
- 6 mm
- Flange Width Range
- 200 mm
- Flange Thickness Range
- 6 mm
- Workpiece Length Range
- 4000 mm
Performance Metrics
Assembly Speed
0.5 m/min
Minimum Speed
6 m/min
Maximum Speed
Power Consumption
5.5 kW
Main Machine Power
4 kW
Hydraulic Station Power
System Components
Included Components
- Main assembly machine
- Draw bar centering system
- Input roller conveyor
- Output roller conveyor
- Hydraulic system
- Electric control system
- CO2 Gas Shielded Welding machines
- Welding Modes
- Automatic WeldingManual Welding
