Grille Ceiling Roll Forming Machine
This cold roll forming machine efficiently produces grille ceilings with precision. It uses rollers to gradually shape metal sheets into the desired profile, ensuring consistent quality.
Technical Specifications
Overview
High-Efficiency Grille Ceiling Production
This automated roll forming line is engineered for the precise and continuous manufacturing of metal grille ceiling panels. The system integrates decoiling, straightening, servo-driven feeding, multi-stage punching, and forming into a single, high-speed production workflow. Built with a robust steel chassis and precision-ground components, it ensures consistent dimensional accuracy and reliable performance for high-volume architectural production.
Technical Specifications
Key Performance Metrics
15 m/min
Forming Speed
0.6 mm
Max Material Thickness
4 kW
Main Motor Power
- Material Compatibility
- Aluminum
- Electrical Requirements
- AC380V, 50Hz, Three-phase
Line Components
Production Line Components
| Component | Specifications |
|---|---|

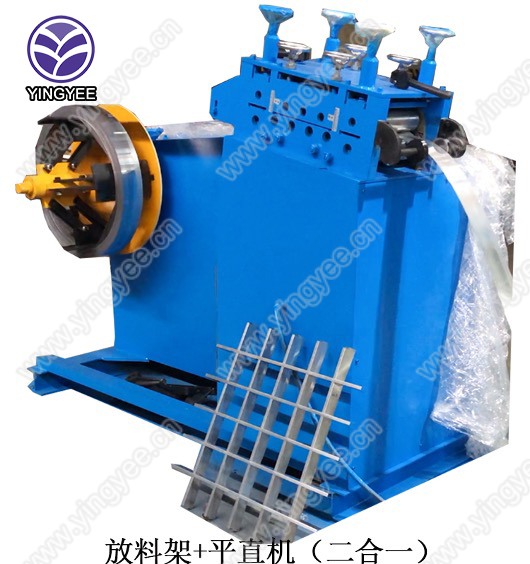

| Decoiler | 1T capacity, 400-500mm inner hole |
| Straightener | 3-roller system, 1.5kW motor |
| Feeder | Yaskawa servo motor, 1.5kW |
| Conveyor | 0.75kW, 220V adjustable speed |
Punching System Details
- Main Punch: 16t, 1.5kW, 120 times/min
- Small Punch: 1.6kW, 180 times/min
- PLC-controlled pitch and length
Machine Construction
Construction Details
- 14 sets of rolling wheels
- 45# steel rollers, quenched and hard chrome plated
- HRB6206 ball bearings
- 16mm thick bottom plate
- 25mm thick side plates
