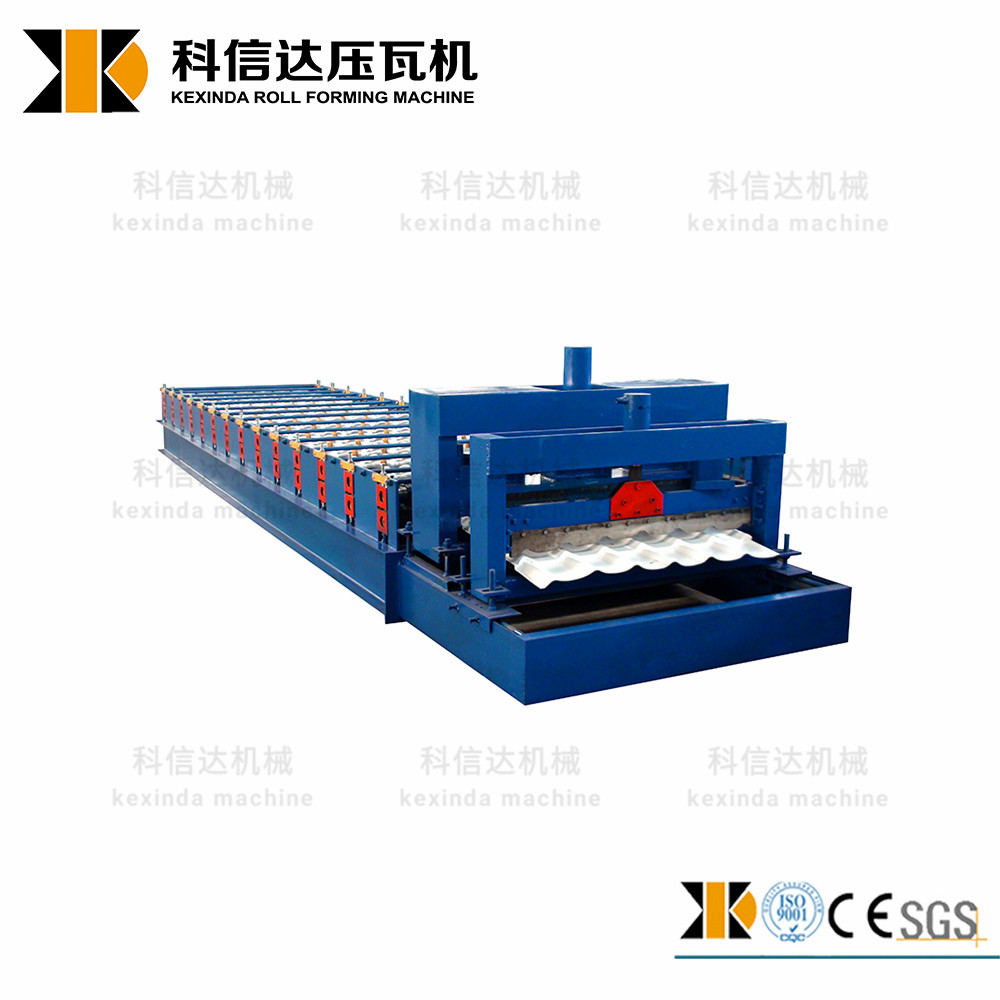

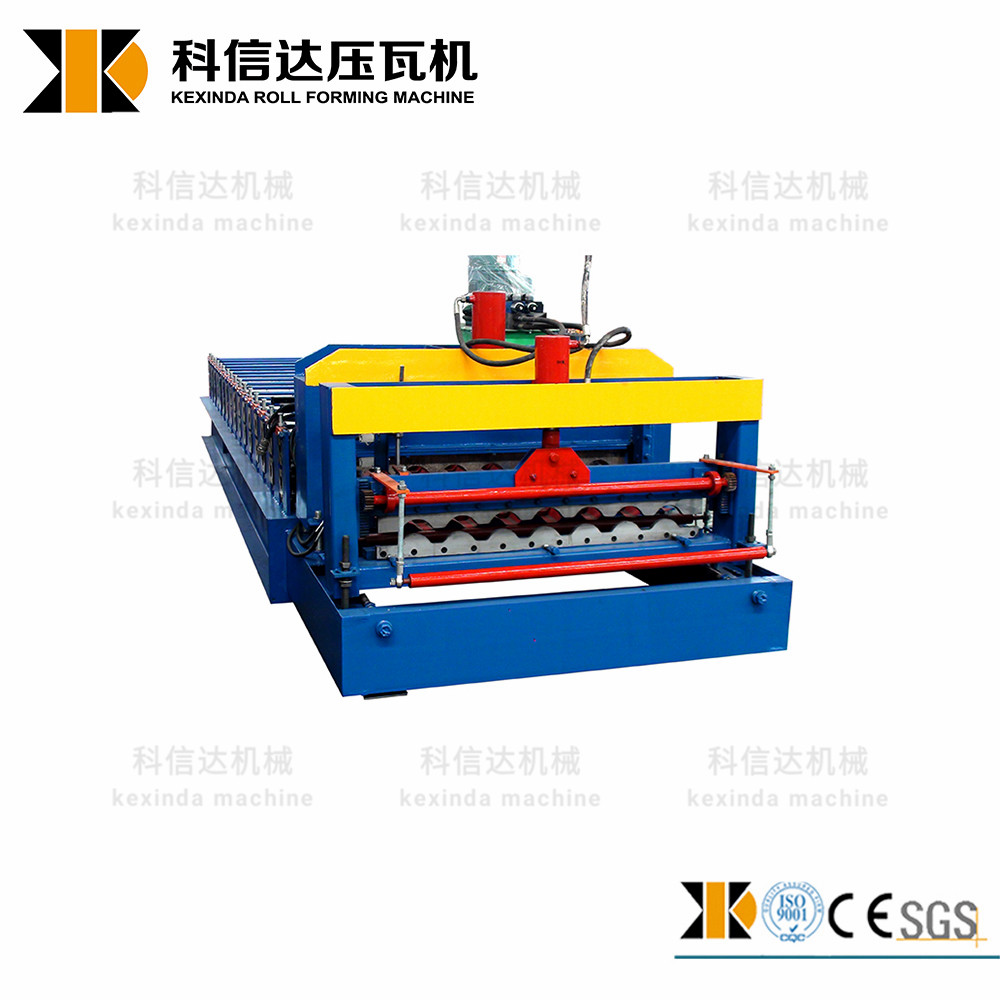

Glazed Tile Roofing Panel Roll Forming Machine
This roll forming machine produces roofing panels with a glazed tile profile. It efficiently transforms zinc sheets into durable roofing materials.
Technical Specifications
Overview
Glazed Tile Roofing Panel Roll Forming Machine
This roll forming machine is engineered for the high-volume production of glazed tile roofing panels from materials such as color steel plates, galvanized sheets, and aluminum coils. Designed for industrial manufacturing, it features a robust construction with a 14mm steel plate main body and 300mm H-steel support, ensuring long-term durability and stability. The system integrates automated cutting and precise hydraulic control, allowing for consistent output and high-quality finishes suitable for various factory, warehouse, and civilian building applications.
Technical Specifications
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
- Feeding Material Width
- 1000 mm
- Feeding Material Thickness
- 0.3-0.8mm

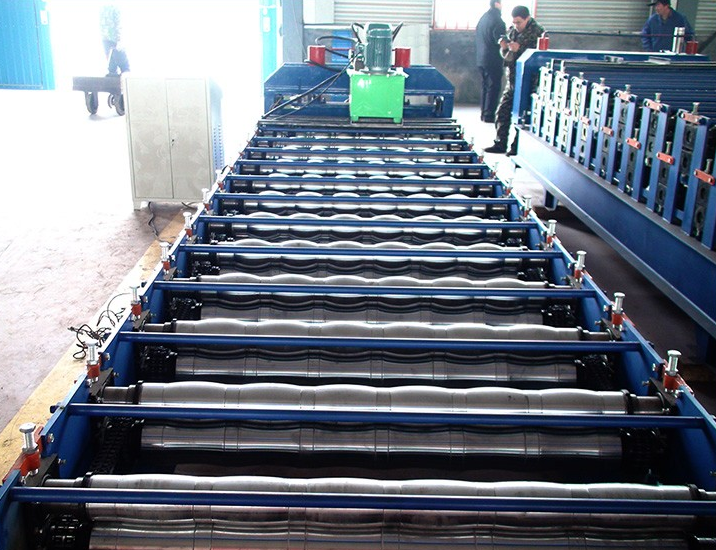

- Roller Stations
- 11
- Productivity
- 8-12m/min
- Power Supply
- 380V, 3-Phase, 50Hz
- Motor Power
- 4+3kw
- Machine Dimensions
- 7500 x 1500 x 1600 mm
- Machine Weight
- 3.5T
Components & Construction
- Roller Material
- 45# Steel

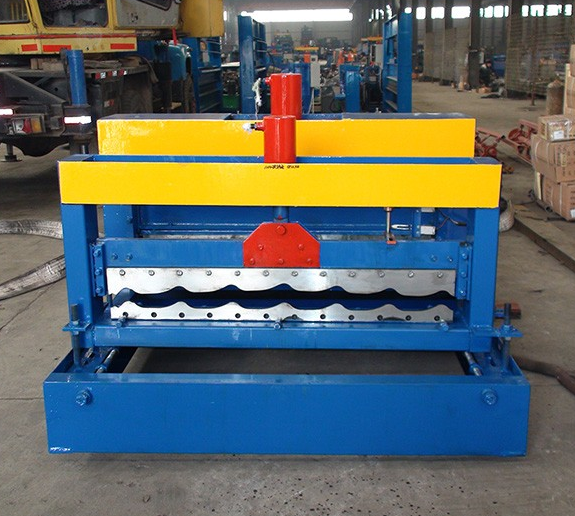

- Cutter Material
- GCr12 / Cr12Mov
- Shaft Diameter
- 75 mm
- Roller Diameter
- 80 mm
Control & Operation

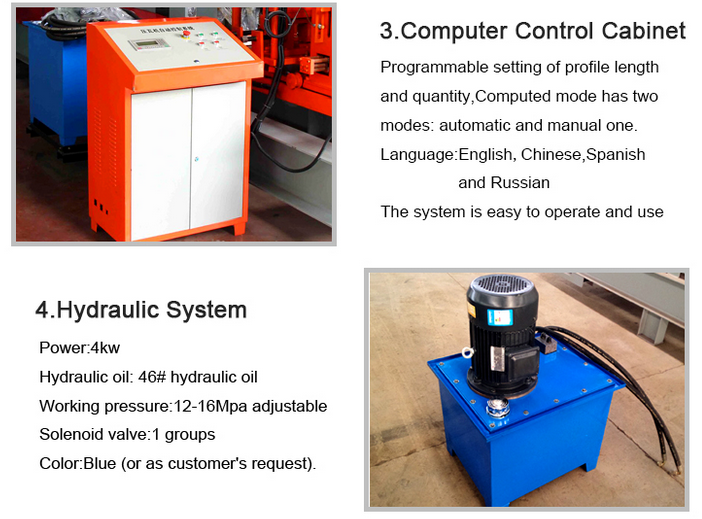

Control System Features
- Programmable length and quantity settings
- Automatic and manual operation modes
- Multi-language support (English, Chinese, Spanish, Russian)
- Hydraulic drive integration
Hydraulic System
4 kW
Power
12 MPa
Min Pressure
16 MPa
Max Pressure
