Glazed Tile Roll Forming Machine

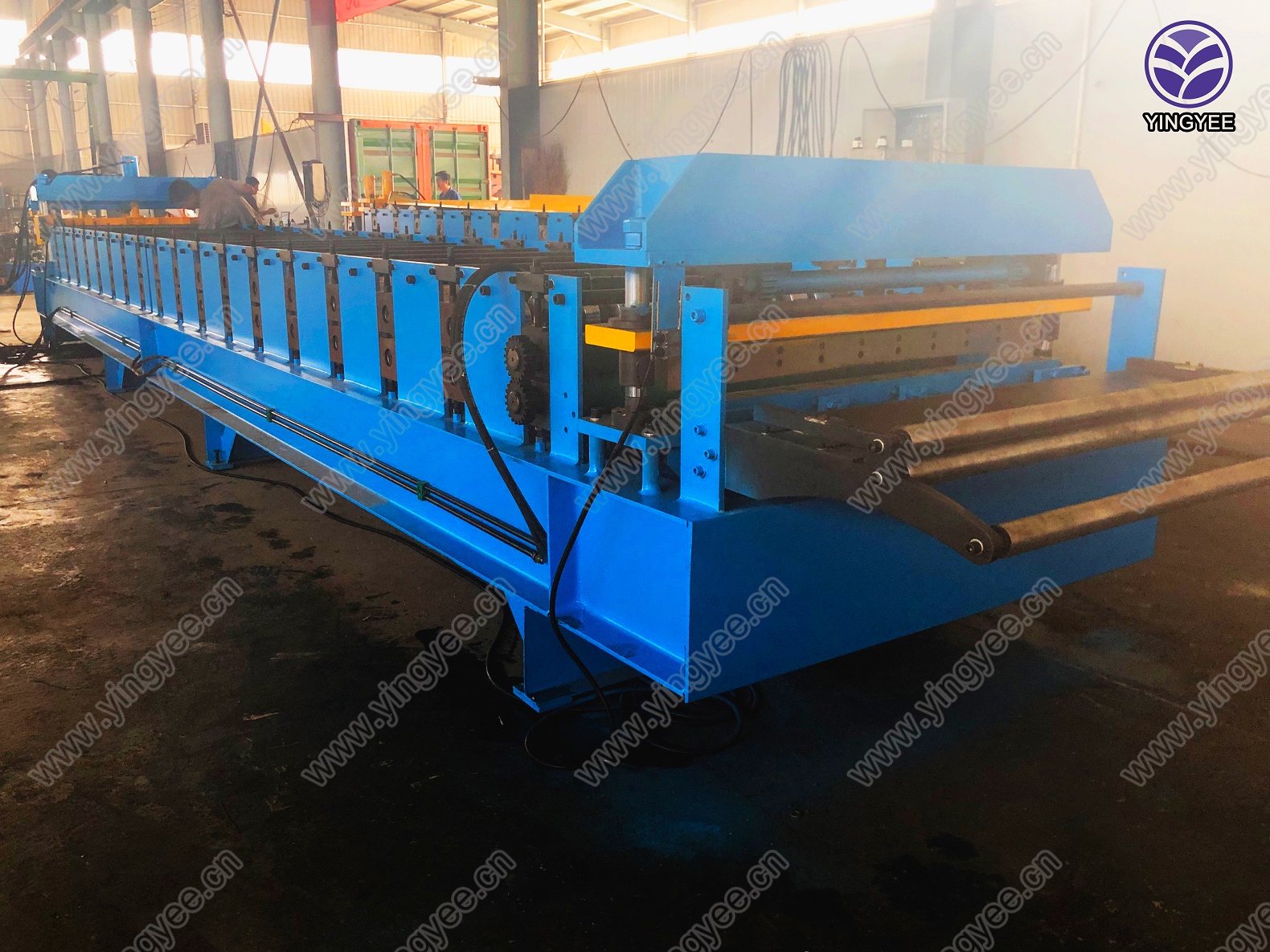

This roll forming machine is designed for manufacturing glazed tile roof sheets. It is equipped with a series of rollers to gradually shape the metal sheet into the desired tile profile.
Technical Specifications
Product Overview
Glazed Tile Roll Forming Machine

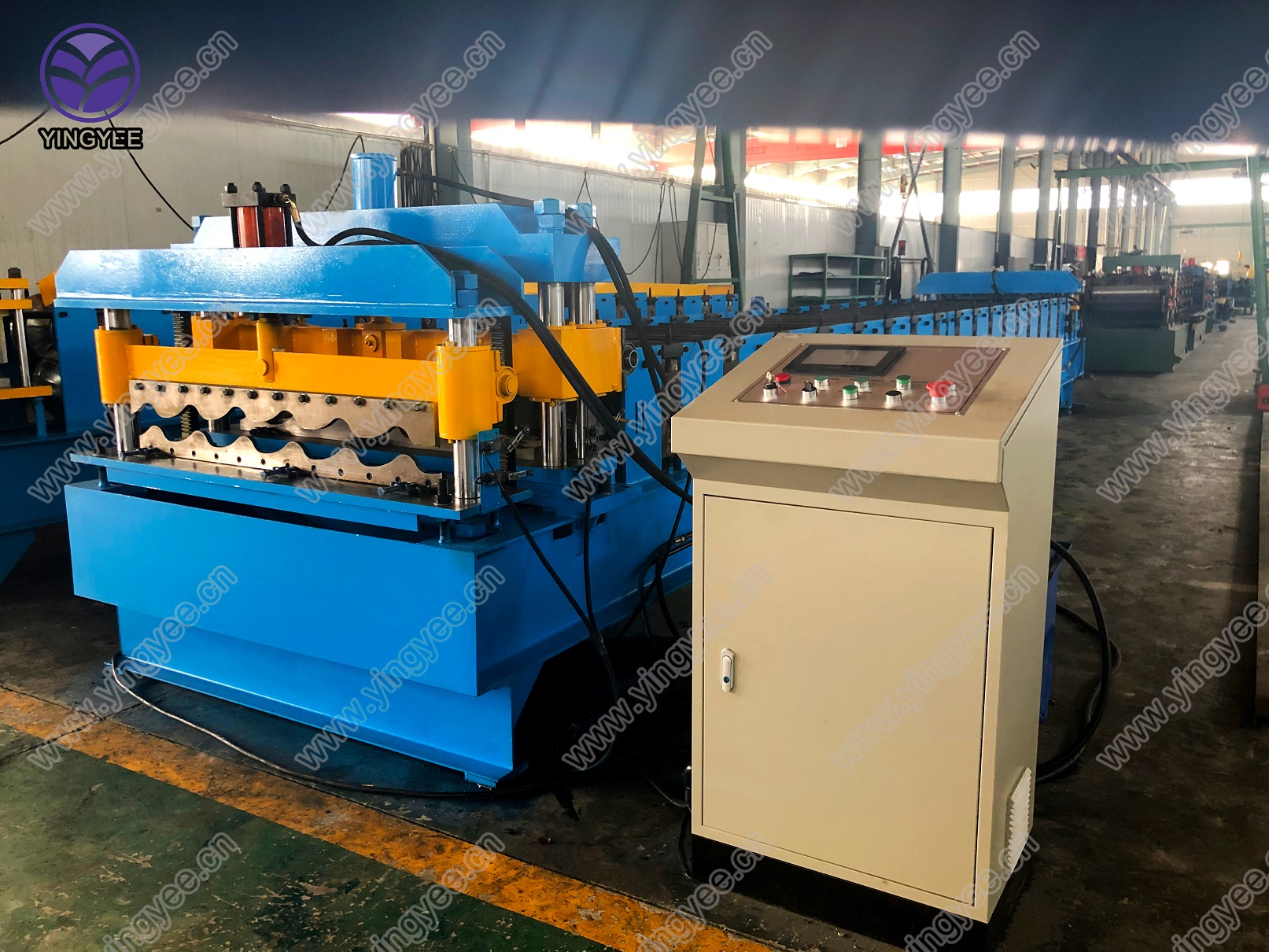

This high-performance roll forming machine is engineered for the efficient production of glazed tile roof sheets. It features a robust, industrial-grade construction designed for high-volume manufacturing environments. Equipped with an automated PLC control system and precision rollers, it ensures consistent profile quality and reliable output for professional roofing applications.
Performance Metrics
Key Metrics
3 m/min
Production Speed
10 ton
Machine Weight
16 pcs
Roller Quantity
Technical Specifications
Mechanical Details
| Feature | Specification |
|---|---|
| Main Motor Power | 5.5 kw |
| Hydraulic Station Power | 4 kw |
| Drive System | Chain / Gearbox |
| Machine Body | 350H |
| Shaft Diameter | 75 mm |
Material Standards
- Roller Material: 45# Steel with chrome plating
- Shaft Material: 45# Forged steel
- Cutter Blade Material: Cr12 mould steel (58-62°C quenched)
Operational Requirements
- Power and Precision
- 380V / 3 Phase / 50 HzTolerance: 10m ± 1.5mmMaterial Thickness: 0.2-0.8mm
